QT04542GNAN - Generac 45kW Home Standby Generator (SN: 4879826 - 5096512) (2008) CPL C2 & C4 FLEX HSB (0F3391D) Parts Diagram

45kW Home Standby Generator

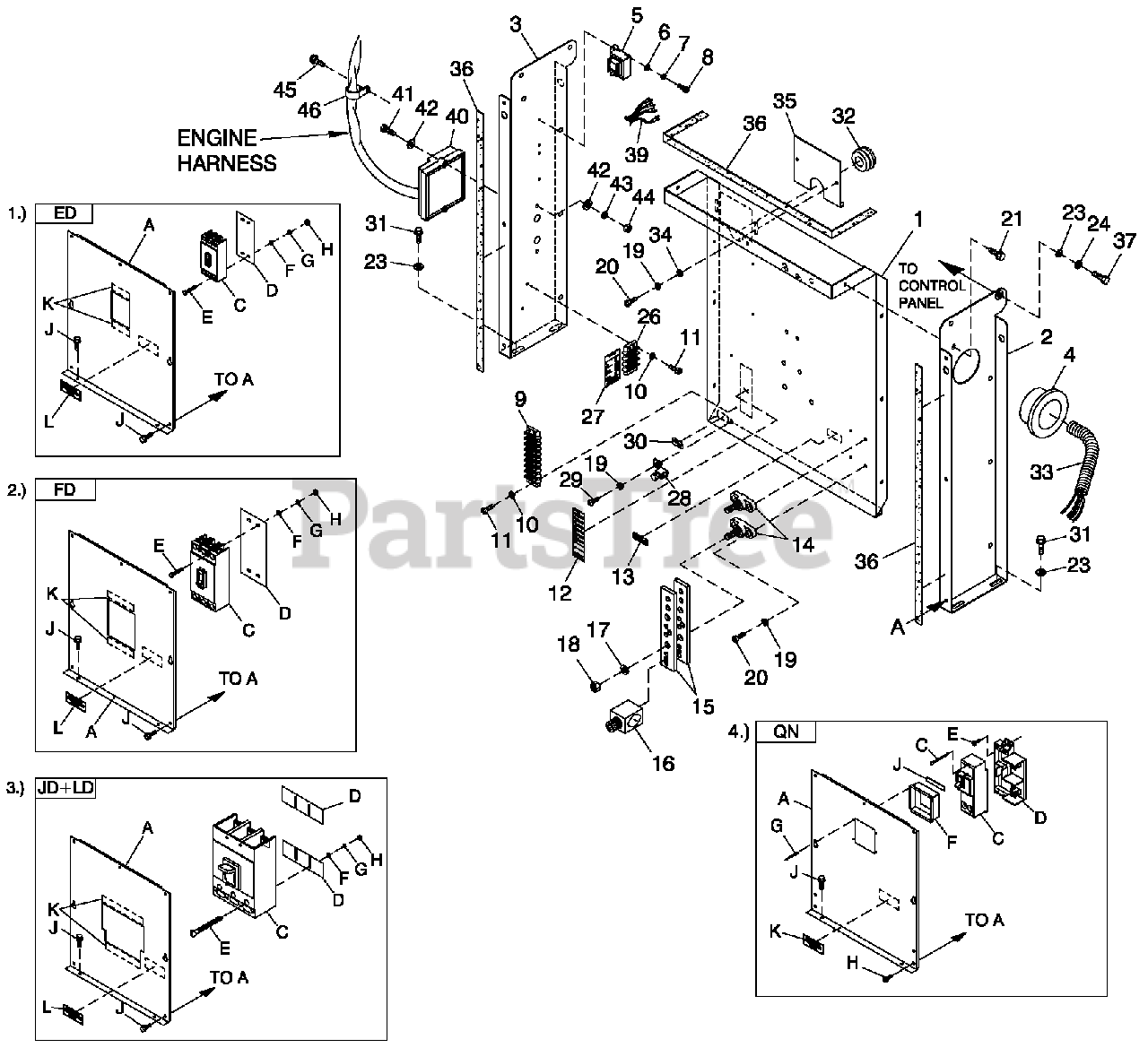

CPL C2 & C4 FLEX HSB (0F3391D) Parts Diagram

  • Title

1

Generac 0F3137

PAN CB CONN BOX

$362.99

$

Usually ships in 2-12 days

0

2

Generac 0F3188

STAND RH CONTROL

$94.99

$

Usually ships in 2-12 days

0

3

Generac 0F3189

STAND LH CONTROL

$388.99

$

Usually ships in 2-12 days

0

4

Generac 023484N

BUSHING SNAP SB-2.5-31

$2.99

$

Usually ships in 2-12 days

0

5

Generac 0F6366B

XFMR DUAL 120V/16V (FOR 120/240V & 277/480V UNITS)

$61.99

$

Usually ships in 2-12 days

0

Generac 0F6366A

XFMR DUAL 104V/16V (FOR 120/208V UINTS)

$48.99

$

In Stock, only 1 left!

0

6

Generac 043180

WASHER FLAT M4

$

$

Not available

7

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

8

Generac 0C3990

SCRE PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

9

Generac 057701

BLOCK TERM 20 A8 X 6 X 1100V

Note: ITEM INCLUDED WITH HARNESS

$

$

Not available

10

Generac 022155

WASHER LOCK #6

$

$

Not available

11

Generac 0C2428

SCREW PHTT #6-32 X 1/2 ZYC

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0F3824

DECAL UTL SENSE/CUST CONN

$

$

Not available

13

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

14

Generac 057073

JUNCTION BLO C K 3/8-16

$

$

Not available

15

Generac 0D5466

BUS BAR NEUTRAL BLOCK 390

Note: ITEM INCLUDED WITH 0D5464B

$23.99

$

Usually ships in 2-12 days

0

16

Generac 0A7822

LUG SLDLSS 600/250-1/0 X 1/4-28

Note: ITEM INCLUDED WITH 0D5464B

$46.99

$

Usually ships in 2-12 days

0

17

Generac 022237

WASHER LOCK 3/8

$

$

Not available

18

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

19

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

20

Generac 0C2266

SCREW PHTT M5-0.8 X 1 6 ZYC

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0C2454

SCREW THF M6-1 X 16N WA Z /JS

$3.49

$

Usually ships in 2-12 days

0

23

Generac 022473

WASHER FLA T 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

24

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

26

Generac 0D4698

BLOCK TERM 20 A6 X 3 X 1100V

Note: ITEM INCLUDED WITH HARNESS

$5.99

$

Usually ships in 2-12 days

0

27

Generac 0F4464

DECAL CUST CONN 120V UTILITY

$

$

Not available

28

Generac 025433

LUG SLDLSS # 6 14 X 13 /64 CU

$

$

Not available

29

Generac 024469

SCREW HHTT #10-32 X 3 /8 CZ

$

$

Not available

30

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

31

Generac 0D6029

SCREW HHTT M6-1.0 X 16 ZYC

$18.99

$

Usually ships in 2-12 days

0

32

Generac 081008

GROMMET 1.25X .25 X .75

$

$

Not available

33

Generac 077043J

CONDUIT FLEX 2 .0 ' ID (36" LG)

$

$

Not available

34

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

35

Generac 0F6156

PLATE WIRE SNGL GALV

$2.99

$

Usually ships in 2-12 days

0

36

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ'D)

$

$

Not available

37

Generac 047411

SCREW HHC M 6-1.0X 16G 8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

39

Generac 0G0770

HARNESS, TRANSFORMER ADAPTER

Note: ITEM USED WITH EARLY MODEL 208V UNITS ONLY

$

$

Not available

40

Generac 0H0348

ASSY ENCLOSURE PCB 4.2L IGN MD

Note: ITEMS USED ON 4.2L MODELS ONLY.. THIS IGNITION MODULE ONLY APPLIES TO THE FOLLOWING ENGINES: 0G8279 4.2L(FWD) G3 0G5962 CPL 4.2L(FWD)G3

$558.99

$

Usually ships in 2-12 days

0

41

036943

SCREW PPHM # 10/32 X 2

Note: ITEMS USED ON 4.2L MODELS ONLY.

$

$

Not available

42

Generac 023897

WASHER FLAT # 10 ZINC

Note: ITEMS USED ON 4.2L MODELS ONLY.

$

$

Not available

43

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

Note: ITEMS USED ON 4.2L MODELS ONLY.

$3.49

$

In Stock, only 1 left!

0

44

Generac 022158

NUT HEX #10-32 STEEL

Note: ITEMS USED ON 4.2L MODELS ONLY.

$

$

Not available

45

Generac 0C2454

SCREW THF M6-1 X 16 N WAZ /JS

Note: ITEMS USED ON 4.2L MODELS ONLY.

$3.49

$

Usually ships in 2-12 days

0

46

Generac 055934D

CLAMP VINYL 1.06 X .406 Z

Note: ITEMS USED ON 4.2L MODELS ONLY.

$3.99

$

Usually ships in 2-12 days

0

47

Generac 0F6145

SEAL WEATHER .45" DIA

$1.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (ED)

Note: ITEM INCLUDED WITH HARNESS

$

$

Not available

A

Generac 0F3328

COVER ED CB SHORT STND

$129.99

$

Usually ships in 2-12 days

0

C

Generac 0D5552

CB0050A 3P 480V S ED4 LL

$648.99

$

Usually ships in 2-12 days

0

Generac 0D5553

CB0060A 3P 480V S ED4 LL

$1207.99

$

Usually ships in 2-12 days

0

Generac 0D5554

CB0070A 3P 480V S ED4 LL

$

$

Not available

Generac 0D5556

CB0090A 3P 480V S ED4 LL

$766.99

$

Usually ships in 2-12 days

0

Generac 0D9693

CB0125A 3P 480V S ED4 LL

$1506.99

$

Usually ships in 2-12 days

0

D

Generac 0F0492

INSULATOR CB S (ED-3 P)

$7.99

$

Usually ships in 2-12 days

0

E

Generac 048927

SCREW RHM # 10 -3 2X 4 -1 /2

$

$

Not available

F

Generac 023897

WASHER FLA T # 10 ZINC

$

$

Not available

G

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

H

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

J

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/J S

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ 'D)

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (FD)

Note: ITEM INCLUDED WITH 0D5464B

$

$

Not available

A

Generac 0F3138

COVER CB CONN BOX

$29.99

$

Usually ships in 2-12 days

0

C

Generac 0D5572

CB 0150A 3P 600V S FD6LL

$2299.99

$

Usually ships in 2-12 days

0

Generac 0D5573

CB0175A 3P 600V S FD6LL

$2312.99

$

Usually ships in 2-12 days

0

Generac 0D5574

CB0200A 3P 600V S FD6LL

$2793.99

$

Usually ships in 2-12 days

0

Generac 0D5575

CB0225A 3P 600V S FD6LL

$1337.99

$

Usually ships in 2-12 days

0

Generac 0D5576

CB0250A 3P 600V S FD6LL

$3183.99

$

Usually ships in 2-12 days

0

D

Generac 0F0199

INSULATOR CB FD FRAME 30ML

$5.49

$

Usually ships in 2-12 days

0

E

Generac 081320

SCREW SHC 1/4 -20 X 4.5 G8.8 NZ

$

$

Not available

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

WASHER LOCK M6. 1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 022127

NUT HEX 1/4-20S TEE L
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

J

Generac 0C2454

SCREW THF M6-1 X 16 N WAZ /JS

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ'D)

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (JD + L D)

Note: ITEM USED WITH EARLY MODEL 208V UNITS ONLY

$

$

Not available

A

Generac 0F3329

COVER JD/LD CB SHRT STAND

$

$

Not available

C

Generac 0D5577

CB 0300A 3P 600V S JD6LL

$

$

Not available

D

Generac 0F2353

INSULATOR CIRCUIT BR. JD/LD

$

$

Not available

E

Generac 022770

SCREW RHM 1/4-20 X 3

$

$

Not available

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

J

Generac 0C2454

SCREW THF M6-1 X 16 N WAZ /JS

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ'D)

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (QN)

Note: ITEMS USED ON 4.2L MODELS ONLY.

$

$

Not available

A

Generac 0F8135

COVER QN FRM CB

$350.99

$

Usually ships in 2-12 days

0

C

Generac 0E7283

CB 0150A 2P 240V S QN2LL

$646.99

$

Usually ships in 2-12 days

0

Generac 0E7284

CB 0175A 2P S QN2LL 240V

$396.99

$

Usually ships in 2-12 days

0

D

Generac 0E3664

BASE, QN CIRCUIT BREAKER

$519.99

$

In Stock, only 1 left!

0

E

Generac 074908

SCREW HHTT M5 -0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

F

Generac 0F8140

COVER QN CB DISH

$73.99

$

Usually ships in 2-12 days

0

G

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

H

Generac 0C2454

SCREW THF M 6-1X16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 029289

TAPE ELEC 1/2 FOAM (AS REQ'D)

$

$

Not available

K

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0
