QT04524JNSC - Generac 45kW Home Standby Generator (SN: 6094667 - 6905549) (2012) Engine Common Prt 2.4L G2 45Kw (0H7322) Parts Diagram

45kW Home Standby Generator

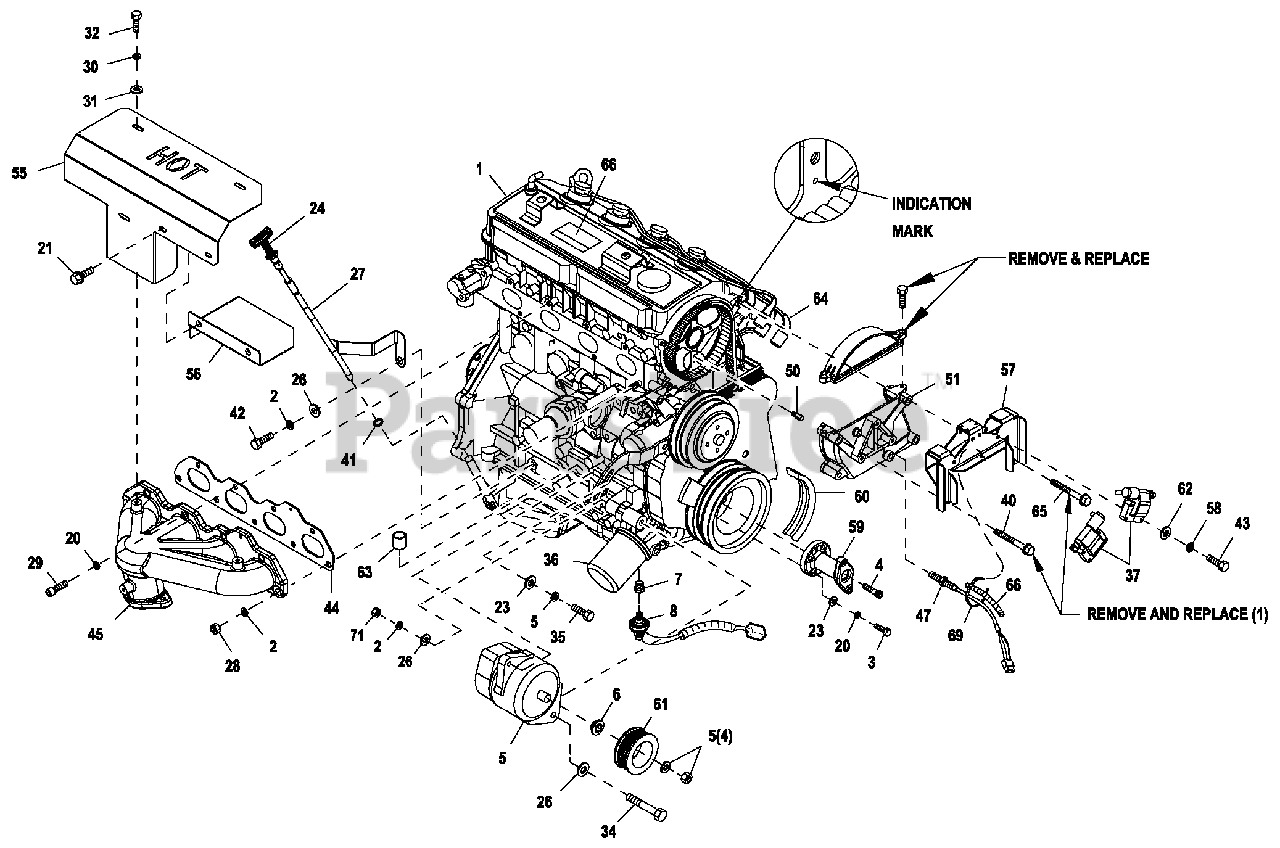

Engine Common Prt 2.4L G2 45Kw (0H7322) Parts Diagram

  • Title

1

Generac 0H1619

ROTOR-2390-45KD1 CPL

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 046526

ROTOR-2390-35KD1 CPL

$

$

Not available

3

Generac 039414

ROTOR-2390-45KD1 CPL (G2)
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

4

Generac 0G0149

ROTOR-2390-35KD1 CPL (G2)

$5.99

$

Usually ships in 2-12 days

0

5

Generac 0E9868A

ROTOR 25KW 3PH DIRECT 390 1800

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THE THREADS.

$519.99

$

Usually ships in 2-12 days

0

6

Generac 0F3217

ROTOR 25KW 1PH DIRECT 390 1800

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

7

Generac 042574

ADAPTOR 1/8 NPTF TO 1/8 BSPT

$

$

Not available

8

Generac 0H7435

HARN LOW OIL PRESS SWITCH ASSY

$80.99

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

21

Generac 0D6029

STATOR-390 45K 2P 1PH DIRECT

$18.99

$

Usually ships in 2-12 days

0

23

Generac 022145

STATOR-2390-35AD1 CPL
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

24

Generac 0H6859P

STATOR-2390-35KD1 CPL

$23.99

$

Usually ships in 2-12 days

0

26

Generac 022131

STATOR-2390-35GD1 CPL
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0G8427A

STATOR-2309-45KW 2P 3PH 208V

$19.99

$

Usually ships in 2-12 days

0

28

Generac 046525

STATOR-2309-45-KD1 CPL

$

$

Not available

29

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

34

Generac 0E4507

SCREW HHC M10-1.5X 120 C8.8

$4.99

$

Usually ships in 2-12 days

0

35

Generac 0A8258

SCREW HHC M8-1.25X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0A45310244

FILTER 1.5L/2.4LG2 OIL

Note: SUPPLIED WITH ENGINE.

$50.99

$

Usually ships in 2-12 days

0

37

Generac 0G8853

COIL-2.4LG2 IGNITION

$183.99

$

Usually ships in 2-12 days

0

41

Generac 0G3823

O-RING SIZE 9.0MM X 2.0MM NITR

$0.99

$

Usually ships in 2-12 days

0

42

Generac 052213

SCREW HHC M10-1.25X 20 C8.8

$

$

Not available

43

Generac 034413

SCREW HHM # 10 -3 2X 1 -1 /4

$

$

Not available

44

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE.

$35.99

$

In Stock, only 1 left!

0

45

Generac 0G3910

EXHAUST MANIFOLD G2 (MACHINE)

$272.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

50

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

51

Generac 0G1476

COVER CAM GEAR G2 REWORKED

Note: ORDER P/N 0G1477.

$

$

Currently unavailable

55

Generac 0G92210AS0R

SHIELD HEAT

$79.99

$

Usually ships in 2-12 days

0

56

Generac 0G0792A

SHIELD HEAT SML

$11.99

$

Usually ships in 2-12 days

0

57

Generac 0G8852

BRACKET ASM-2.4L COIL G2

$137.99

$

Usually ships in 2-12 days

0

58

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

59

Generac 0F9501

ADAPTER 2.4L CRANKSHAFT MACH

$68.99

$

Usually ships in 2-12 days

0

60

Generac 0G0952

POLY V-BELT G2

Note: SUPPLIED WITH ENGINE.

$67.99

$

Usually ships in 2-12 days

0

61

Generac 0G0788

PULLEY DC ALTERNATOR

$35.99

$

Usually ships in 2-12 days

0

63

Generac 0G9520

PLUG TAPER

Note: APPLY LOCTITE 620 BEARING RETAINMENT COMPOUND TO I/N 72.

$11.99

$

Usually ships in 2-12 days

0

64

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

65

Generac 052203

SCREW HHC M8 -1 .25X70 G8.8

Note: SUPPLIED WITH ENGINE.

$

$

Not available

66

Generac 077043H

CONDUIT FLEX .25 "ID

$1.99

$

Usually ships in 2-12 days

0

69

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

71

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available
