QT04524GNSN - Generac 45kW Home Standby Generator (SN: 5654955 - 5654956) (2009) Eng Common Parts 2.4L G2 (0G9980) Parts Diagram

45kW Home Standby Generator

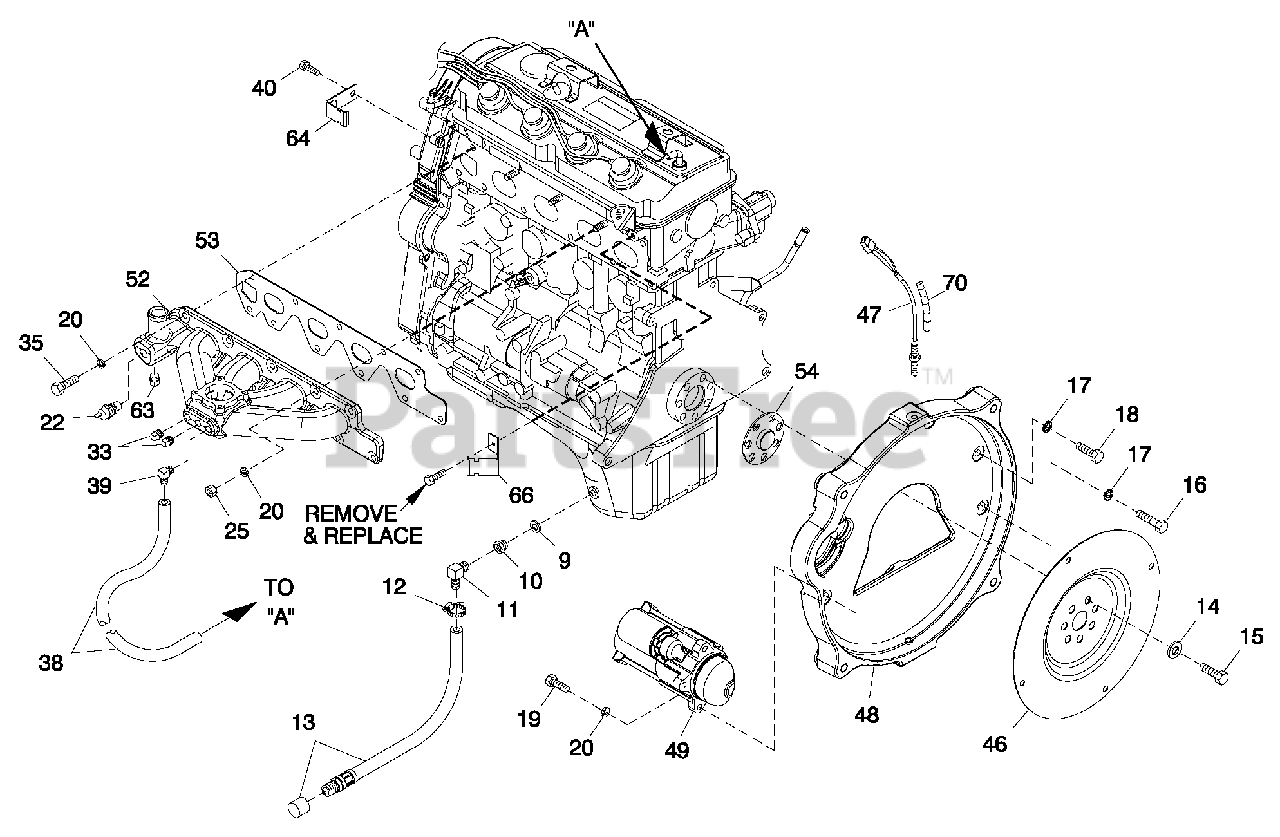

Eng Common Parts 2.4L G2 (0G9980) Parts Diagram

  • Title

6

Generac 0F3217

SPACER DC ALTERNATOR P U LLEY

Note: NOT USED ON 1800 RPM UNITS.. On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

9

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

10

Generac 057765

ADAPTER M14-1.50X 3/8 NPT

$

$

Not available

11

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

12

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

13

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

14

Generac 063076

WASHER FLAT .531 IDX 1.062 OD

$

$

Not available

15

Generac 0G1394

SCREW HHC M12-1.25 X 20 G10.9

$8.99

$

Usually ships in 2-12 days

0

16

Generac 052830

SCREW HHC M10-1.25 X 45 G8.8

$

$

Not available

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 062963

SCREW HHC M10-1.25 X 30 G8.8

$

$

Not available

19

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

22

Generac 0A6751

SWITCH HI-TEMP245DX3/8 NPT (R-PANEL)

$93.99

$

Usually ships in 2-12 days

0

25

Generac 045771

N U T HEX M8-1.25 G8 CLEARZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

33

Generac 026073A

PL U G STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

35

Generac 0A8258

SCREW HHC M8-1.25X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0A45310244

FILTER 1.5L/2.4LG2 OIL

Note: SUPPLIED WITH ENGINE.

$50.99

$

Usually ships in 2-12 days

0

38

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

39

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

40

Generac 045757

SCREW HHC M6-1.0X 25 G8.8
(Superseded to G045757)

Note: USED WITH H-PANELONLY

$0.99

$

Usually ships in 2-12 days

0

44

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE.

$35.99

$

In Stock, only 1 left!

0

46

Generac 0G6093E

FLEX PLATE 2 POLE 2.4LG2

Note: ORDER 0F9965E

$

$

Not available

47

Generac 0D2244M

ASSY MAGPICK U P(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

48

Generac 0F9420

ADAPTER ENGINE 2.4L MACHINE

$675.99

$

Usually ships in 2-12 days

0

49

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

Generac 0G8488

MANIFOLD INTAKE (MACHINED) (USE HOSE 0H1546)

$305.99

$

Usually ships in 2-12 days

0

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENGINE.

$63.99

$

Usually ships in 2-12 days

0

54

Generac 0F9583

SPACER 2.4L G2 FLEX PLATE

$31.99

$

Usually ships in 2-12 days

0

60

Generac 0G0952

POLY V-BELT G2 (3600 RPM)

Note: SUPPLIED WITH ENGINE.

$67.99

$

Usually ships in 2-12 days

0

63

Generac 026925

PLU G STD PIPE 3/8 STEEL SQ HD
(Superseded to G026925)

$2.49

$

In Stock, only 1 left!

0

64

Generac 0F2776

BRACKET, SIGNAL CONDITIONER

Note: USED WITH H-PANELONLY

$3.49

$

Usually ships in 2-12 days

0

66

0F2776D

BRACKET SIGNAL CONDITONER

Note: USED WITH H-PANELONLY

$

$

Not available

70

Generac 077043H

COND UIT FLEX .25"ID

$1.99

$

Usually ships in 2-12 days

0
