QT04039GVSN - Generac 40kW Home Standby Generator (SN: 4327328 - 4341326) (2006) Fuel Nat. Gas & Lpv 3.9L 4-Pole (0F3455) Parts Diagram

40kW Home Standby Generator

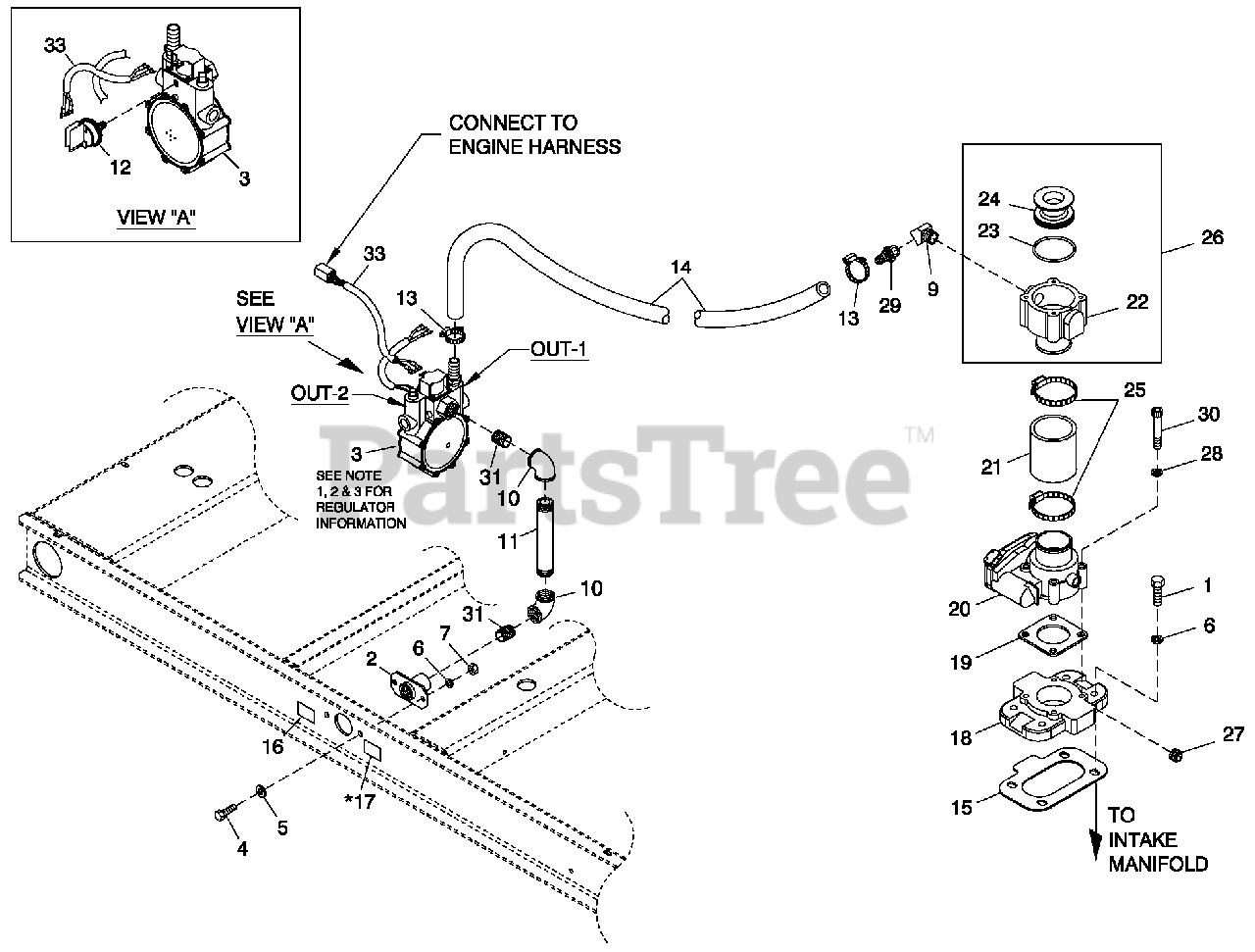

Fuel Nat. Gas & Lpv 3.9L 4-Pole (0F3455) Parts Diagram

  • Title

1

Generac 033212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

2

Generac 075580

FLANGE FUEL INLET

$

$

Not available

3

Generac 0F6390

REGULATOR ASSEMBLY DUAL FUEL

Note: ORDER P/N 0F63900SRV.

$

$

Currently unavailable

4

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

5

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

9

Generac 0E8286

STREET EL 45 DEG 1/2" NPT BRASS

$100.99

$

Usually ships in 2-12 days

0

10

Generac 026812

ELBOW 90D 3/4 NPT

$

$

Not available

11

Generac 0F8379

NIPPLE PIPE 3/4 NPT X 7”

$34.99

$

Usually ships in 2-12 days

0

12

Generac 0F3869

SWITCH PRESSURE GAS 5" RISE (INCLUDED WITH I/N 3)

$105.99

$

Usually ships in 2-12 days

0

13

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

14

059193C

HOSE 5/8 ID X 31.0" LG

$

$

Not available

15

Generac 064945

GASKET CARB ADAPTOR

$

$

Not available

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 050279

DECAL FUEL INLET NG (NATURAL GAS APPLICATION)

Note: FOR LP VAPOR APPLICATION SUBSTITUE LPG FUEL INLET DECAL P/N50280 FOR NG FUEL INLET DECAL P/N 050279 (ITEM17).

$

$

Not available

Generac 050280

DECAL FUEL INLET LPG (LP VAPOR APPLICATION)

$

$

Not available

18

Generac 0E7839

MACHINING, CARBURETOR ADAPTOR

$77.99

$

Usually ships in 2-12 days

0

19

Generac 0E6586

GASKET BOSCH 32 & 40

$2.49

$

Usually ships in 2-12 days

0

20

Generac 0E4394

ACTUATOR BOSCH 40, GOVERNOR

$701.99

$

In Stock, only 1 left!

0

21

Generac 040105

HOSE COOL 2IN ID 20R4 (2” LG)

$

$

Not available

22

Generac 0E6382B

VENTURI HOLDER W/40MM ACTUATOR

Note: GUARDIAN PARTS ORDER 0E9295 ALL OTHER ORDER 0G4573B

$

$

Not available

23

Generac 0E7121

O-RING 47.625 ID X 2.38 WIDTH

$29.99

$

Usually ships in 2-12 days

0

24

Generac 0E6376B

VENTURI 28 ID THROTTLE W/CHOKE

Note: ORDER 0E92950SRV

$

$

Not available

25

Generac 042561

CLAMP HOSE #36 1.88-2.75
(Superseded to G042561)

$4.99

$

Usually ships in 2-12 days

0

26

Generac 0E9295

ASSY THROTTLE 28MM

Note: ORDER 0E92950SRV

$

$

Not available

27

Generac 061012

PLUG STD PIPE 1/8 SOCKET HEAD

$

$

Not available

28

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

29

Generac 044118

BARBED STR 1/2 NPT X 5/8

$

$

Not available

30

Generac 046580

SCREW SHC M6-1.0 X 45 G12.9

$

$

Not available

31

Generac 026915

NIPPLE CLOSE 3/4 X 1.375

$

$

Not available

33

Generac 0F6155

HARNESS CPL FUEL JUMPER

$72.99

$

Usually ships in 2-12 days

0
