QT03624KNAX - Generac 36kW Home Standby Generator (SN: 5937378 - 6992534) (2012) Engine Common Prt 2.4l G2 Turbo 36k (0H7321) Parts Diagram

36kW Home Standby Generator

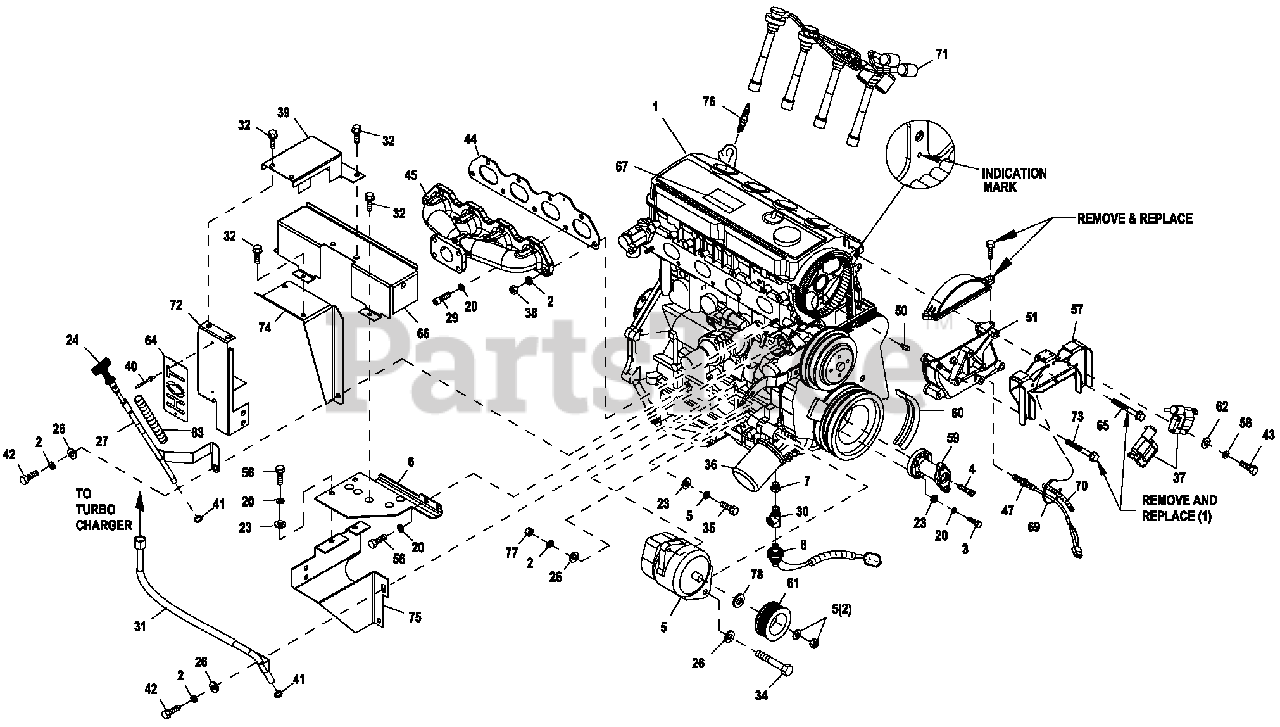

Engine Common Prt 2.4l G2 Turbo 36k (0H7321) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2.4L G2 CERTIFIED

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 046526

WASHER LOCK M10

$

$

Not available

3

Generac 039414

SCREW HHC M8-1.25 X 35 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

4

Generac 0G0149

SCREW SHC M14-1.5 X 35 G10.9

$5.99

$

Usually ships in 2-12 days

0

5

Generac 0E9868A

ALTERNATOR DC W/O U T P ULLEY

$519.99

$

Usually ships in 2-12 days

0

7

Generac 042574

ADAPTOR 1/8NPTF TO 1/8BSPT

$

$

Not available

8

Generac 0H7435

SWITCH OIL PRESSU RE 10 PSI 2 POL (R-PANEL)

$80.99

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

23

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

24

Generac 0H6859P

ASSEMBLY DIPSTICK G2.4L

$23.99

$

Usually ships in 2-12 days

0

26

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0G8427A

ASSY DIPSTICK TU BE 2.4 G2

$19.99

$

Usually ships in 2-12 days

0

29

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

30

Generac 052233A

TEE STREET 1/8NPT BRASS W/VS

$21.99

$

Usually ships in 2-12 days

0

31

Generac 0H0935

TU BE TU RBO OIL RETURN G2 36KW

$487.99

$

Usually ships in 2-12 days

0

32

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

34

Generac 0E4507

SCREW HHC M10-1.5 X 120 C8.8

$4.99

$

Usually ships in 2-12 days

0

35

Generac 0A8258

SCREW HHC M8-1.25 X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0A45310244

FILTER 1.5L/2.4L G2 OIL

Note: SUPPLIED WITH ENG INE.

$50.99

$

Usually ships in 2-12 days

0

37

Generac 0G8853

COIL-2.4L G2 IGNITION

$183.99

$

Usually ships in 2-12 days

0

38

Generac 046525

N U T HEX M10-1.25 G8 YEL CHR

$

$

Not available

39

Generac 0H0593A

HEAT SHEILD INNER 2.4L G2 36K

$40.99

$

Usually ships in 2-12 days

0

40

Generac 0F0710

RIVET POP .125 X 0.337 STEEL

$0.99

$

Usually ships in 2-12 days

0

41

Generac 0G3823

O-RING SIZE 9.0MM X 2.0MM NITR

$0.99

$

Usually ships in 2-12 days

0

42

Generac 052213

SCREW HHC M10-1.25 X 20 C8.8

$

$

Not available

43

Generac 034413

SCREW HHM #10-32 X 1-1/4

$

$

Not available

44

Generac 0G0951

GASKET EXHAU ST MANIFOLD

Note: SUPPLIED WITH ENG INE.

$35.99

$

In Stock, only 1 left!

0

45

Generac 0H0679A

MANF-EXH (MACH. CASTING)

$323.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICK U P(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

50

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

51

Generac 0G1476

COVER CAM GEAR G2 REWORKED

Note: ORDER P/N 0G1477.

$

$

Currently unavailable

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENG INE.

$63.99

$

Usually ships in 2-12 days

0

58

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

59

Generac 0F9501

ADAPTER 2.4L CRANKSHAFT MACH

$68.99

$

Usually ships in 2-12 days

0

60

Generac 0D3488S

BELT SERPENTINE 37.0" (1800 RPM)

Note: SUPPLIED WITH ENG INE.

$28.99

$

Usually ships in 2-12 days

0

62

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

64

Generac 0D3701

PLATE "HOT"

$21.99

$

Usually ships in 2-12 days

0

65

Generac 052203

SCREW HHC M8-1.25 X 70 G8.8

Note: SUPPLIED WITH ENG INE.

$

$

Not available

66

Generac 0H0593

SHIELD-MANIFOLD 2.4L G2 36KW

$71.99

$

Usually ships in 2-12 days

0

67

Generac 0G9378

DECAL SORE EPA CERTIFICATION

$

$

Currently unavailable

69

Generac 029333A

TIE WRAP U L 7.4"X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

70

Generac 077043H

CONDUIT FLEX .25"ID

$1.99

$

Usually ships in 2-12 days

0

72

Generac 0H0593B

HEAT SHIELD OU TER 2.4L G2 36K

$44.99

$

Usually ships in 2-12 days

0

73

Generac 052265

SCREW HHC M8-1.25 X 65 C8.8

$

$

Not available

74

Generac 0H07280ST03

BRKT-EXH MANF 2.4L 36KW

$52.99

$

Usually ships in 2-12 days

0

75

Generac 0H0723BST03

LWR BRKT ASM HT SHIELD G2 36KW

$146.99

$

Usually ships in 2-12 days

0

76

Generac 084750

PLUG SPARK
(Superseded to G084750)

$40.99

$

Usually ships in 2-12 days

0

77

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

78

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0
