QT03015JNSXR - Generac 30kW Home Standby Generator (SN: 7853401 - 7853401) (2013) EV Engcomprt 1.5L (0J3554) Parts Diagram

30kW Home Standby Generator

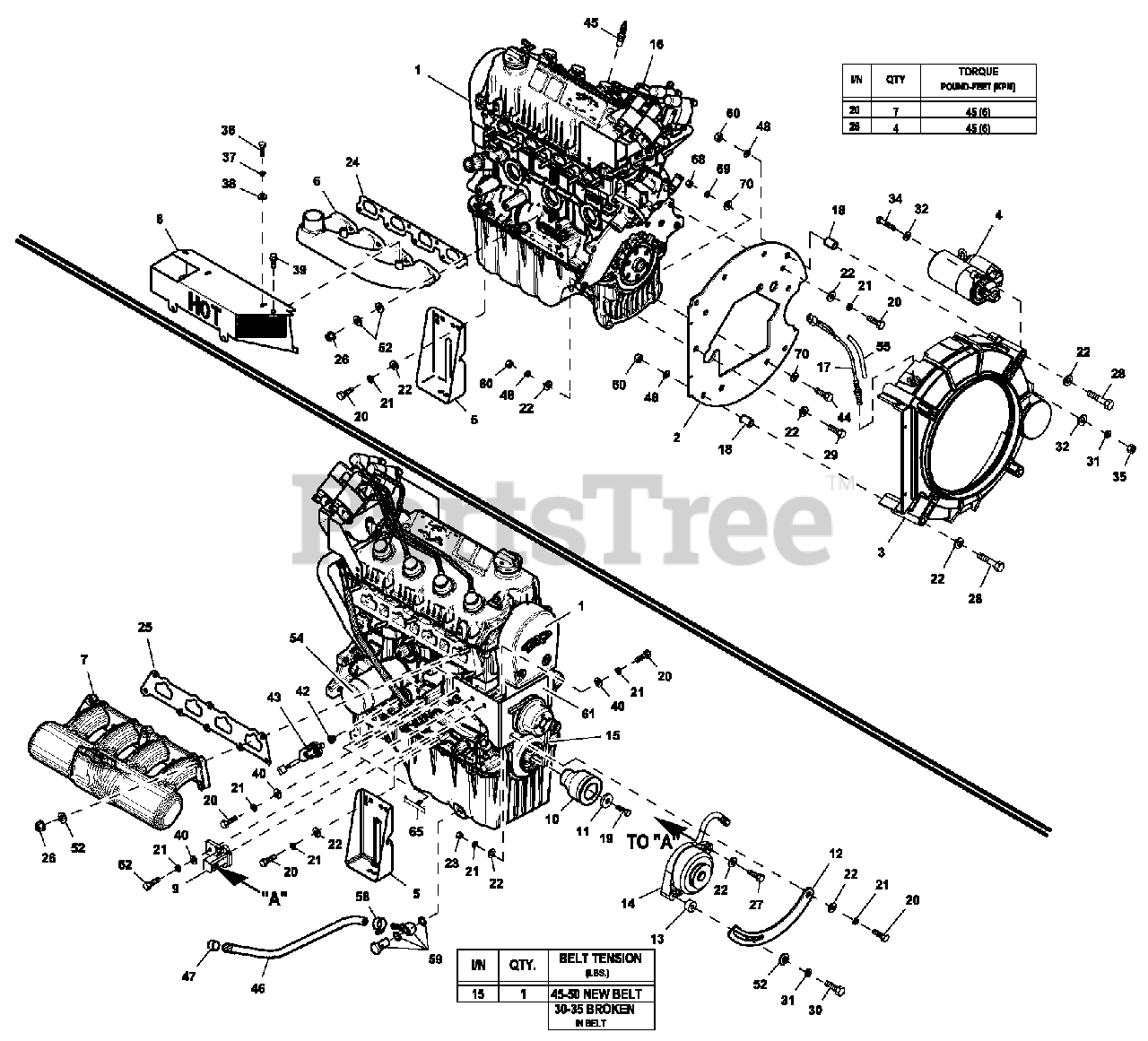

EV Engcomprt 1.5L (0J3554) Parts Diagram

  • Title

1

Generac 0J1556

ENGINE GENERAC 1.5LG11 CERT

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Currently unavailable

2

Generac 0J3704

ENGINE PLATE 1.5L 6MM

$168.99

$

Usually ships in 2-12 days

0

3

Generac 0G0820B

HOUSING BLOWER LG PILOT

$179.99

$

Usually ships in 2-12 days

0

4

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

5

Generac 0G0839

ENGINE MOUNTING FOOT STAMPING

$23.99

$

Usually ships in 2-12 days

0

6

Generac 0G0781

EXHAUST MANIFOLD 1.6L MACHINED

$200.99

$

Usually ships in 2-12 days

0

7

Generac 0J3061A

INTAKE MANIFOLD MACH 1.5L G11

$414.99

$

Usually ships in 2-12 days

0

8

Generac 0G4059

SHIELD 1.6L EXHAUST HEAT

$116.99

$

Usually ships in 2-12 days

0

9

Generac 0G4604

DC ALTERNATOR ADAPTER MACHINED

$35.99

$

Usually ships in 2-12 days

0

10

Generac 0G3424

PULLEY CRANKSHAFT MACHINED

$70.99

$

Usually ships in 2-12 days

0

11

Generac 0G0786

WASHER PULLEY

$9.99

$

Usually ships in 2-12 days

0

12

Generac 0G4605

BRACKET TENSIONER DC ALT

$14.99

$

Usually ships in 2-12 days

0

13

Generac 0F9617A

SPACER ALTERNATOR

$2.99

$

Usually ships in 2-12 days

0

14

Generac 0A1354B

DC ALTERNATR HAN-KOK

$298.99

$

Usually ships in 2-12 days

0

15

Generac 0G0823

V-BELT 3/8X30.6

$23.99

$

Usually ships in 2-12 days

0

16

Generac 0J4472

SPARK PLUG WIRE SET 1.5LG11

$123.99

$

Usually ships in 2-12 days

0

17

Generac 0D2244M

ASSY MAGPICKUP (3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

18

Generac 0G8759

BUSHING GUIDE 19.3MM LONG

$2.49

$

Usually ships in 2-12 days

0

19

Generac 0C5479

SCREW HHC M12-1.5X 40 G10.9

$3.99

$

Usually ships in 2-12 days

0

20

Generac 059980

SCREW HHC M10-1.5X 25 G10.9

$

$

Not available

21

Generac 046526

WASHER LOCK M10

$

$

Not available

22

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 0G3922

NUT HEX M10-1.5 CLASS 10 ZINC

$0.99

$

Usually ships in 2-12 days

0

24

0J15560163

GASKET, EXHAUST MANIFOLD

$

$

Not available

25

Generac 0J4719

GASKET INTAKE MANIFOLD G11

Note: THIS INTAKE MANIFOLD GASKET ONLY APPLIES TO THE FOLLOWING ENGINE: 0J1556 1.5L ENG (G11)

$

$

Currently unavailable

26

Generac 052858

NUT TOP LOCK FL M8-1.25
(Superseded to G052858)

$1.99

$

In Stock, Qty 8

0

27

Generac 051735

SCREW HHC M10-1.5X70 G8.8

$

$

Not available

28

Generac 0G9255

SCREW HHC M10-1.25 X 100 PC8.8

$4.99

$

Usually ships in 2-12 days

0

29

Generac 052830

SCREW HHC M10-1.25X45 C8.8

$

$

Not available

30

Generac 039414

SCREW HHC M8-1.25X35 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

31

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

32

Generac 022145

WASHER FLAT 5/16-M8ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

34

Generac 057821

SCREW HHC M8-1.25X 40 G8.8

$

$

Not available

35

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

36

Generac 022507

SCREW HHC 1/4-20 X 1/2 G5

$

$

Not available

37

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

39

Generac 0E3257

SCREW HWHTF M6-1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

40

Generac 0A5768

WASHER FLAT M10 HEAVY DUTY

$0.99

$

Usually ships in 2-12 days

0

42

Generac 035579

BSHG RDCR HEX 1/4 TO 1/8

$

$

Not available

43

Generac 0H7435

HARN LOW OIL PRESS SWITCH ASSY

$80.99

$

Usually ships in 2-12 days

0

44

Generac 081816

SCREW HHC M12-1.75 X55 C10.9

$

$

Not available

45

Generac 0J15560235

SPARK PLUG

$48.99

$

Usually ships in 2-12 days

0

46

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

47

Generac 069811

CAP HEX 1/4 NPT BRASS

$

$

Not available

48

Generac 0D8427

WASHER LOCK M10 RIBBED ZINC

$0.99

$

Usually ships in 2-12 days

0

52

Generac 0A8830

WASHER FLAT .34IDX.75OD

$7.99

$

Usually ships in 2-12 days

0

54

Generac 0E7080

OIL FILTER 1.6,2.5,3.0,4.2L G3

Note: On QT06030 models use 0D5419 oil filter

$40.99

$

Usually ships in 2-12 days

0

55

Generac 077043H

CONDUIT FLEX .25"ID (6" LG)

$1.99

$

Usually ships in 2-12 days

0

58

Generac 0C7649

CLAMP HOSE .38- 87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

59

Generac 0J4694

BANJO ASSY M16-1.0

$84.99

$

Usually ships in 2-12 days

0

60

Generac 046525

NUT HEX M10-1.25 G8 YELCHR

$

$

Not available

61

0G34330ST0R

BRACKET FAN ALT ADAPTER 1.6L

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATRIAL AND COLOR REFER TO XA BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRE

$

$

Not available

62

Generac 049541

SCREW HHC M10-1.5X35 G8.8

$

$

Not available

65

Generac 0F4001E

ANCHOR HARNESS

$1.49

$

Usually ships in 2-12 days

0

68

Generac 045773

NUT HEX M12-1.75 G8 YELCHR

$

$

Not available

69

Generac 051769

WASHER LOCK M12

$

$

Not available

70

Generac 049808

WASHER FLAT M12

$

$

Not available
