QT02524KNNNA - Generac 25kW Home Standby Generator (SN: 8141109 - 10017929) (2015) EV Cpl C2 H Control (0J6550) Parts Diagram

25kW Home Standby Generator

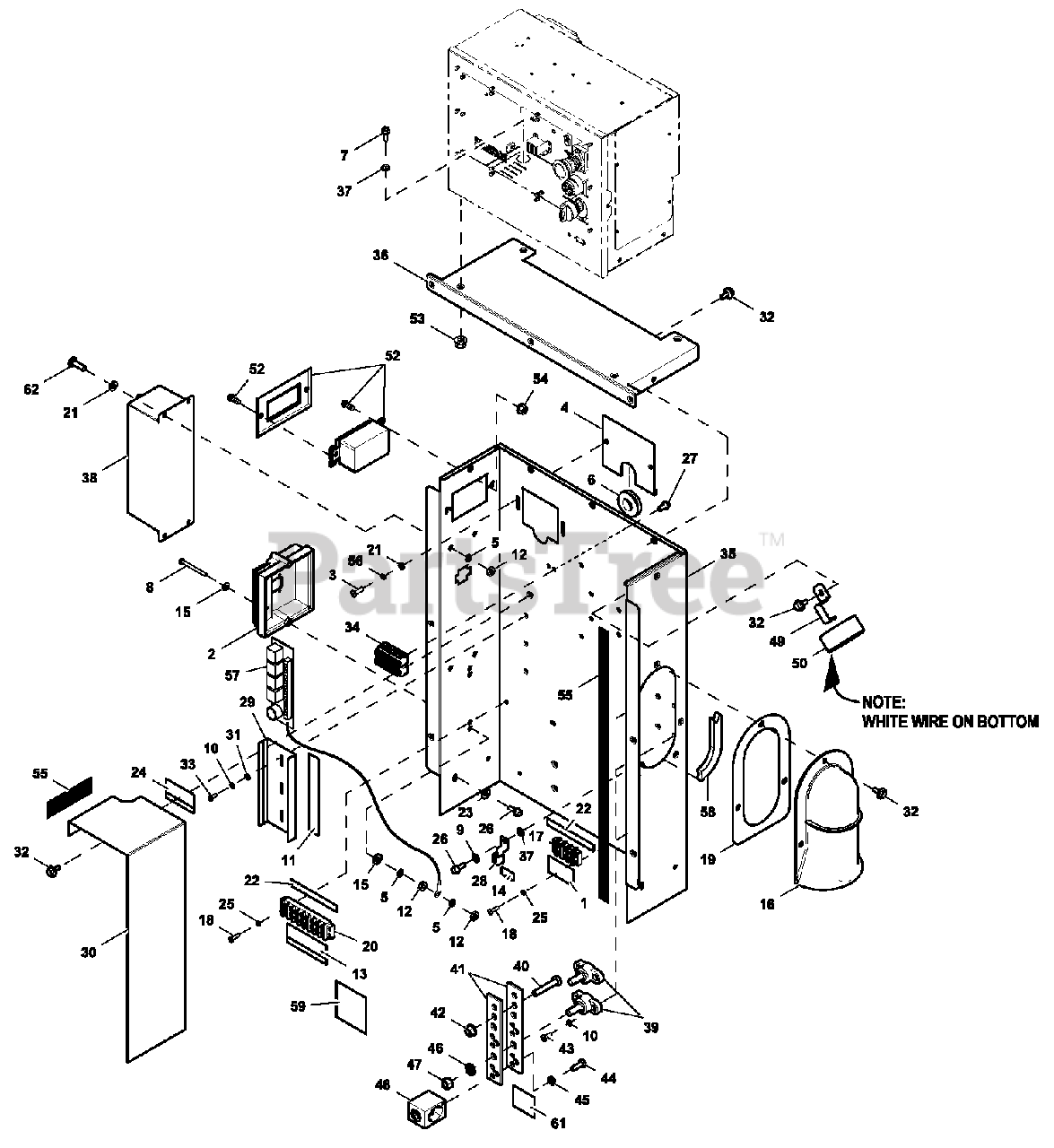

EV Cpl C2 H Control (0J6550) Parts Diagram

  • Title

1

Generac 0H0026

DECAL CHARGER POWER 120VAC C2

$

$

Currently unavailable

2

Generac 0G4649

ASSY PCB 2 4L IGN MOD PRGMMED

Note: ORDER 0G46490SRV ASSY PCB 2.4L IGN MOD.

$

$

Currently unavailable

3

Generac 0C2266

SCREW PHTT M5-0.8X16ZP

$0.99

$

Usually ships in 2-12 days

0

4

Generac 0F6156

PLATE WIRE SNGL GALV

$2.99

$

Usually ships in 2-12 days

0

5

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

6

Generac 081008B

GROMMET 1.25 X .25 X 1.00

$1.49

$

Usually ships in 2-12 days

0

7

Generac 0E3257

SCREW HWHTF M6-1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

8

036943

SCREW PPHM #10-32X2

$

$

Not available

9

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

10

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

11

Generac 0J0398

DECAL, CONTACT RAT 30VAC/30VDC

$0.99

$

Usually ships in 2-12 days

0

12

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

13

0F3618A

DECAL CPL CUST CONN H CONTROL

$

$

Not available

14

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

15

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

16

Generac 0H6160

COVER WIRE ENTRY CONNBOX

$17.99

$

Usually ships in 2-12 days

0

17

Generac 0D4698

BLOCK TERM 2 0A 6X 3 X 1 1 0 0 V

Note: ITEMS INCLUDED WITH HARNESS P/N 0J7175.

$5.99

$

Usually ships in 2-12 days

0

18

Generac 0C2428

SCREW PHTT #6-32 X 1/2 ZYC

$0.99

$

Usually ships in 2-12 days

0

19

Generac 0J3060

GASKET WIRE ENTRY COVER

$7.49

$

Usually ships in 2-12 days

0

20

Generac 057701

BLOCK TERM 2 0A 8X 6 X 1 1 0 0 V

$

$

Not available

21

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

22

Generac 0J0575

DECAL, CUSTOMER WIRE #14

$38.99

$

Usually ships in 2-12 days

0

23

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

24

0J6810

DECAL CONBOX TB2 CONNECTIONS

$

$

Not available

25

Generac 022155

WASHER LOCK #6

$

$

Not available

26

Generac 0D6029

SCREW HHTT M6-1.0X 1 6 ZYC

$18.99

$

Usually ships in 2-12 days

0

27

Generac 0F5458

SCREW HHSP #10 X 3/8 HI-LOW

$0.99

$

Usually ships in 2-12 days

0

28

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

29

Generac 0E9764

RAIL SNAPTRACK PCB HOLDER BULK (6"LG)

$33.99

$

Usually ships in 2-12 days

0

30

0J65610ST0R

SHIELD HIGH/LOW C2 CPL H

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CO

$

$

Not available

31

Generac 043180

WASHER FLAT M4

$

$

Not available

32

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$3.49

$

Usually ships in 2-12 days

0

33

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZP

$0.99

$

Usually ships in 2-12 days

0

34

Generac 0D7393U

TERM BLOCK 4PUL12-20AWG

Note: ITEMS INCLUDED WITH HARNESS P/N 0J7175.

$14.99

$

Usually ships in 2-12 days

0

35

0J6564

BK PNL CONBOX SUPPORT C2 QTA

$

$

Not available

36

0J6565

BACK PNL CONBOX TOP C2

$

$

Not available

37

Generac 026850

WASHER LOCK EXT 1/4 STL

$

$

Not available

38

Generac 0J0157

INTERFACE 1PH 120/240V

$144.99

$

Usually ships in 2-12 days

0

39

Generac 0J0156

INTERFACE 3PH 208/240V

$228.99

$

Usually ships in 2-12 days

0

40

Generac 0J0155

INTERFACE 3PH 416/480V

$188.99

$

In Stock, only 1 left!

0

41

Generac 057073

JUNCTION BLOCK 3/8-16

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$

$

Not available

42

Generac 039287

SCREW HHC M8-1.25X 45 C8.8

$

$

Not available

43

Generac 0D5466

BUSBAR NEUTRAL BLOCK 390

$23.99

$

Usually ships in 2-12 days

0

44

Generac 067989

NUT HEX FL WHIZ M8-1.25
(Superseded to G067989)

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$2.49

$

In Stock, only 4 left!

0

45

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$0.99

$

Usually ships in 2-12 days

0

46

Generac 045335

SCREW HHC 1/4-28 X 3/4 G5

$

$

Not available

47

Generac 083896

WASHER LOCK 1/4-M6 SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

48

Generac 022237

WASHER LOCK 3/8

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$

$

Not available

49

Generac 022241

NUT HEX 3/8-16 STEEL

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$

$

Not available

50

Generac 0A7822

LUG SLDLSS 600/250-1/0X1/4-28

$46.99

$

Usually ships in 2-12 days

0

Generac 0J1857

CT BRKT 1.1" WINDOW FRAME

$107.99

$

Usually ships in 2-12 days

0

0J0481

XFMR CURRENT 50A W/BRKT UL RCG

$

$

Not available

Generac 0J0481A

XFMR CURRENT 100A W/O BRKT U

$62.99

$

Usually ships in 2-12 days

0

Generac 0J0481B

XFMR CURRENT 150A W/O BRKT UL

$66.99

$

Usually ships in 2-12 days

0

Generac 0J0481C

XFMR CURRENT 200A W/O BRKT UL

$71.99

$

Usually ships in 2-12 days

0

51

Generac 0J7175

HARN CONBOX G2.4L G2 QTA (NOT SHOWN)

$766.99

$

Usually ships in 2-12 days

0

52

Generac 0F6207

OUTLET 20A GFCI125V

$137.99

$

Usually ships in 2-12 days

0

53

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

54

Generac 082625

NUT LOCK HEX #6-32 NYL INSERT

$

$

Not available

55

Generac 029289

TAPE ELEC 1/2 FOAM (61" LG)

$

$

Not available

56

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

57

Generac 0G6962B

ASSY RELAY PCB 12VDC

$357.99

$

Usually ships in 2-12 days

0

58

Generac 056326

TRIM VINYL BLACK 1/8GP (13" LG)

Note: OPEN SET ONLY.

$

$

Not available

59

Generac 0H8006

DECAL CAUTION ELEC SHOCK SM

$2.49

$

Usually ships in 2-12 days

0

60

Generac 0F6146

HANG TAG 2 WIRE START (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

61

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

62

Generac 036701

SCREW PPHM #10-32 X 1/2

$

$

Not available
