QT02524KNNNA - Generac 25kW Home Standby Generator (SN: 4637727 - 4741063) (2007) Enclosure C2 (0H0004) Parts Diagram

25kW Home Standby Generator

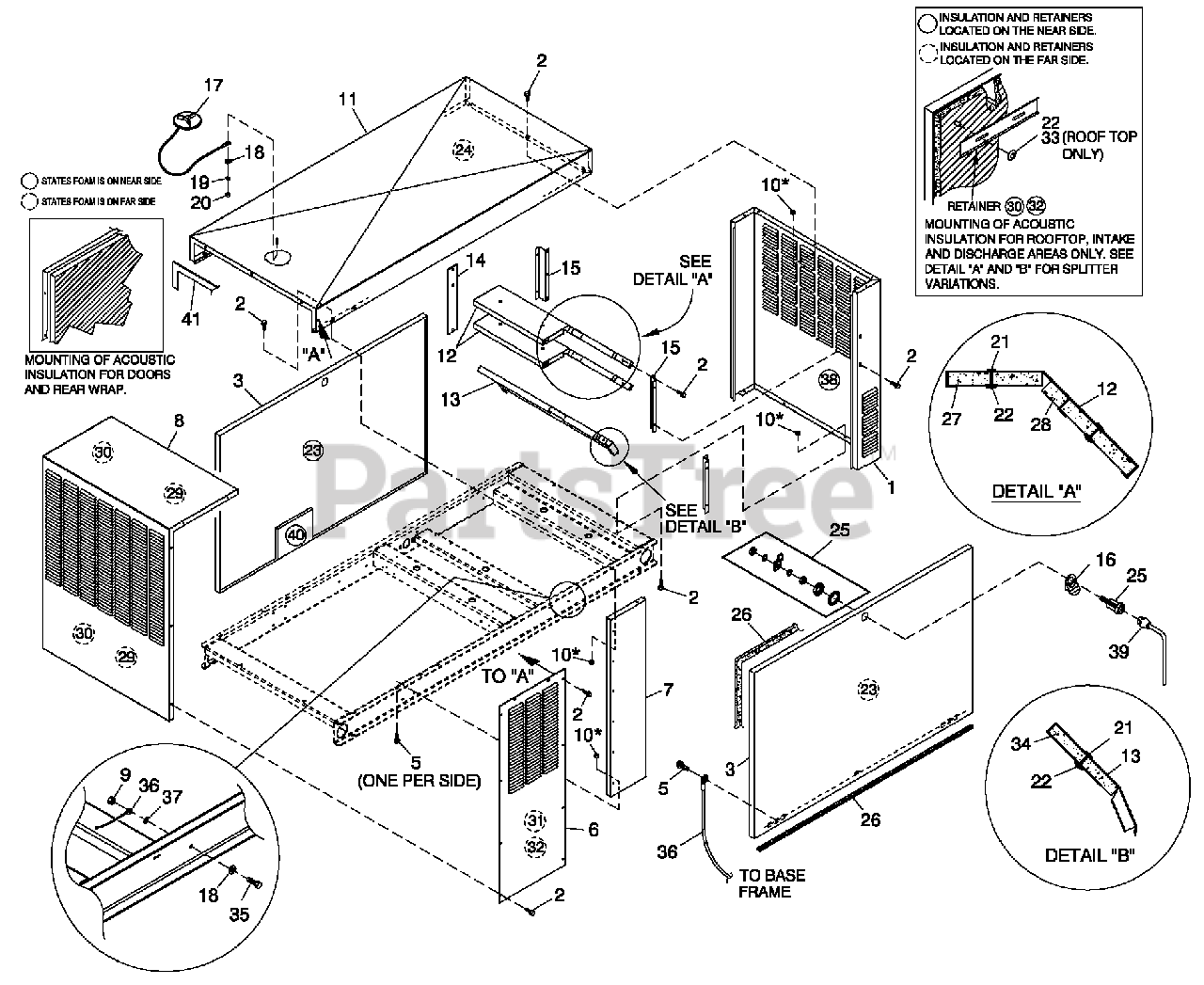

Enclosure C2 (0H0004) Parts Diagram

  • Title

1

0G0045

REAR WRAP C2 CPL

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXXSN = TAN / STEEL 0FXXXX0ST13 = BISQUE / STEEL 0FXXXXAN = TAN / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXSG = T- GRAY / STEEL 0FXXXX0ST14 = GRAY / STEEL 0FXXXXNG = T- GRAY / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM 0FXXXX0ST05 = WHITE / STEEL 0FXXXX0AL05 = WHITE / ALUMINUM

$

$

Not available

2

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

3

Generac 0F5849

DOOR C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXXSN = TAN / STEEL 0FXXXX0ST13 = BISQUE / STEEL 0FXXXXAN = TAN / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXSG = T- GRAY / STEEL 0FXXXX0ST14 = GRAY / STEEL 0FXXXXNG = T- GRAY / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM 0FXXXX0ST05 = WHITE / STEEL 0FXXXX0AL05 = WHITE / ALUMINUM

$

$

Currently unavailable

4

Generac 087233

RIVET POP.1875 X .450 SS

$

$

Not available

5

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

0

6

Generac 0F5852

DISCHARGE DUCT LH & RH SIDE C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXXSN = TAN / STEEL 0FXXXX0ST13 = BISQUE / STEEL 0FXXXXAN = TAN / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXSG = T- GRAY / STEEL 0FXXXX0ST14 = GRAY / STEEL 0FXXXXNG = T- GRAY / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM 0FXXXX0ST05 = WHITE / STEEL 0FXXXX0AL05 = WHITE / ALUMINUM

$

$

Currently unavailable

7

0F9833

FRONT CORNERS C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXXSN = TAN / STEEL 0FXXXX0ST13 = BISQUE / STEEL 0FXXXXAN = TAN / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXSG = T- GRAY / STEEL 0FXXXX0ST14 = GRAY / STEEL 0FXXXXNG = T- GRAY / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM 0FXXXX0ST05 = WHITE / STEEL 0FXXXX0AL05 = WHITE / ALUMINUM

$

$

Not available

8

Generac 0F5851

DISCHARGE CENTER DUCT C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXXSN = TAN / STEEL 0FXXXX0ST13 = BISQUE / STEEL 0FXXXXAN = TAN / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXSG = T- GRAY / STEEL 0FXXXX0ST14 = GRAY / STEEL 0FXXXXNG = T- GRAY / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM 0FXXXX0ST05 = WHITE / STEEL 0FXXXX0AL05 = WHITE / ALUMINUM

$

$

Currently unavailable

9

Generac 049813

NUT HEX M6X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

10

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 2 & 5 THREAD FORMING FASTENER AND I/N 10 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME MANNER.

$1.49

$

Usually ships in 2-12 days

0

11

0F9835

ROOF C2

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT. 0FXXXXAN = T- GRAY / ALUMINUM 0FXXXX0AL05 = WHITE / ALUMINUM 0FXXXXALT13 = BISQUE / ALUMINUM 0FXXXXALT14 = GRAY / ALUMINUM

$

$

Not available

12

Generac 0F2786

SLITTER C4

$220.99

$

Usually ships in 2-12 days

0

13

Generac 0F2785

SPLITTER LOWER C4

$183.99

$

Usually ships in 2-12 days

0

14

Generac 0F3364

SPLITTER STINGER C2

$41.99

$

Usually ships in 2-12 days

0

15

Generac 0F4880

SUPPORT SPLITTER LH C2

$29.99

$

Usually ships in 2-12 days

0

16

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

In Stock, only 1 left!

0

17

Generac 0F4487A

ASSEMBLY COVER ACCESS

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$0.99

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

23

Generac 0G5892

INSULATION DOOR C2

$211.99

$

Usually ships in 2-12 days

0

24

Generac 0G5892A

INSULATION ROOF TOP

$223.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (328" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

27

Generac 0G5892D

INSULATION SPLITTER

$24.99

$

Usually ships in 2-12 days

0

28

Generac 0G5892C

INSULATION SPLITTER

$41.99

$

Usually ships in 2-12 days

0

29

Generac 0F4051C

INSULATION DUCT

$94.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

31

Generac 0F4051B

INSULATION DUCT SIDES

$55.99

$

Usually ships in 2-12 days

0

32

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

33

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.49

$

Usually ships in 2-12 days

0

34

Generac 0G5892E

INSULATION LOWER SPLITTER

$46.99

$

Usually ships in 2-12 days

0

35

Generac 042568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available

36

Generac 0912970094

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

37

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

38

Generac 0G5892B

INSULATION REAR WRAP

$38.99

$

Usually ships in 2-12 days

0

39

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

40

Generac 0E5298L

FOAM 300 X 300 THERMAL ACO (APPLIES TO 4.2L UNITS ONLY)

$18.99

$

Usually ships in 2-12 days

0

41

Generac 066760

STRIP SEALANT 1/8 X 1 (44.52"LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days
