QT02524GNSN - Generac 25kW Home Standby Generator (SN: 4817236 - 4817236) (2007) Enclosure C2 (0G1145) Parts Diagram

25kW Home Standby Generator

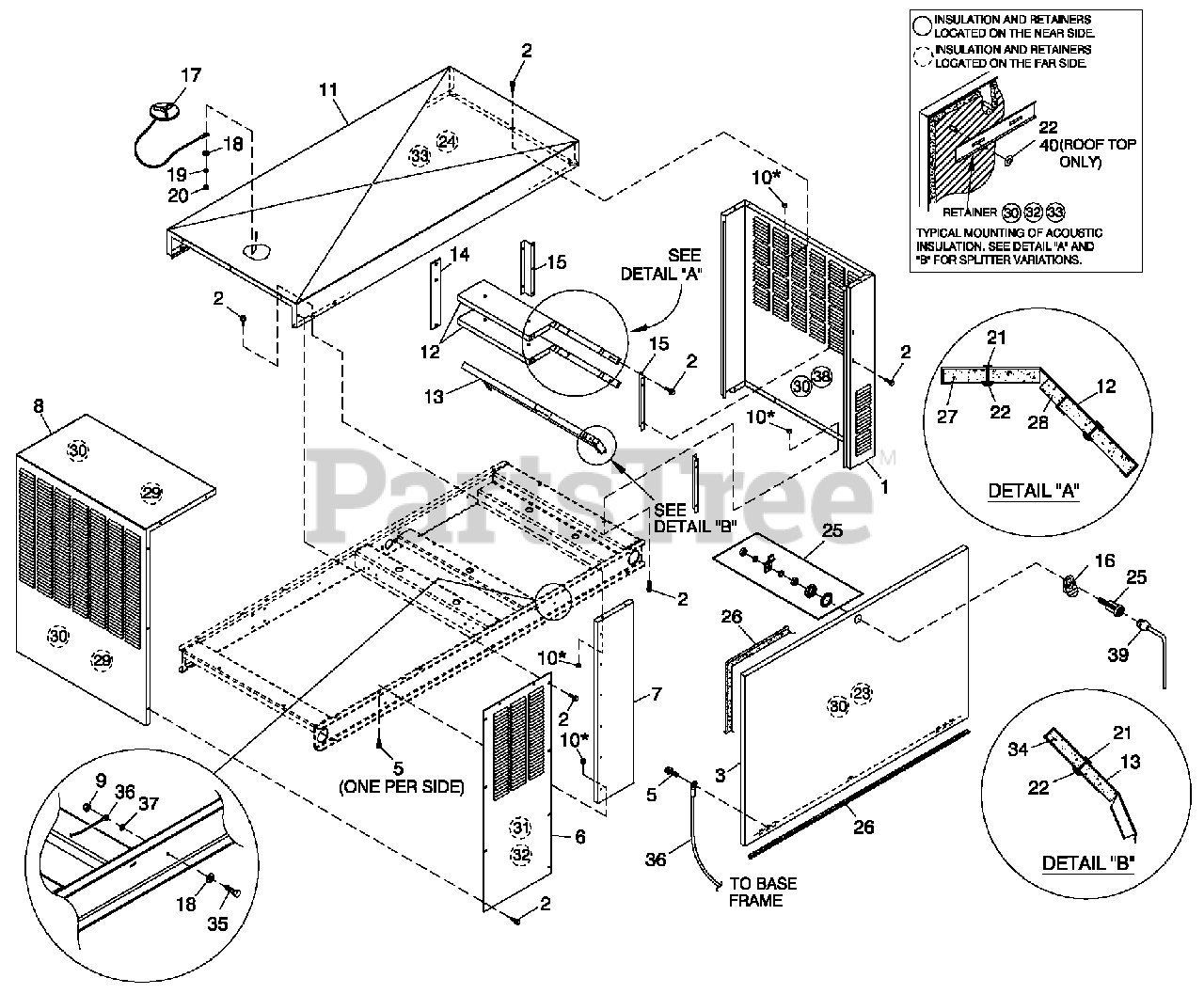

Enclosure C2 (0G1145) Parts Diagram

  • Title

1

OGOO45

REAR WRAP C2 CPL

$

$

Not available

2

OC2454

SCREW THF M6-1 X 16 N WA Z/JS

$

$

Not available

3

OF5849

DOOR C2

$

$

Not available

4

O87233

RIVET POP .1875X.45OSS

$

$

Not available

5

OE3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$

$

Not available

6

OF5852

DISCHARGE DUCT LH & RH SIDE C2

$

$

Not available

7

OF9833

FRONT CORNERS C2

$

$

Not available

8

OF5851

DISCHARGE CENTER DUCT C2

$

$

Not available

9

O49813

NUT HEX M6X 1.O G8YEL CHR

$

$

Not available

10

O77992

NUT HEX LOCK M6-1.O SS NY INS

Note: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 2 & 5 THREAD FORMING FASTENER AND ITEM 39 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS INENCLOSURE PANELS. ALL ROOF PANE

$

$

Not available

11

OF9835

ROOF C2

$

$

Not available

12

OF2786

SLITTER C4

$

$

Not available

13

OF2785

SPLITTER LOWER C4

$

$

Not available

14

OF3364

SPLITTER STINGER C2

$

$

Not available

15

OF488O

SUPPORT SPLITTER LH C2

$

$

Not available

16

OF5O49

TAB PULL

$

$

Not available

17

OC2634A

ASSEMBLY COVER ACCESS

$

$

Not available

18

O22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

19

O22O97

WASHER LOCK M6-1/4

$

$

Not available

20

O22127

NUT HEX 1/4-2O STEEL

$

$

Not available

21

OF3O72

INSULATION RETAINMENT HANGER

$

$

Not available

22

O78115

WASHER SELF LOCKING DOME #4-4O

$

$

Not available

23

OF4O51

INSULATION DOOR C2

$

$

Not available

24

OF4O51A

INSULATION ROOFTOP

$

$

Not available

25

OF5O48D

VISE-ACTION LATCH SLOTTED CIR

$

$

Not available

26

OE5968

GASKET EXTRUDED TRIM (328" LG)

$

$

Not available

27

OF376OK

INSULATION SPLITTER

$

$

Not available

28

OF376OE

INSULATION SPLITTER

$

$

Not available

29

OF4O51C

INSULATION DUCT

$

$

Not available

30

OF389OB

RETAINER INSULATION (82O)

$

$

Not available

31

OF4O51B

INSULATION DUCT SIDES

$

$

Not available

32

OF389O

RETAINER INSULATION (45O)

$

$

Not available

33

OF389OA

RETAINER INSULATION (74O)

$

$

Not available

34

OF376OL

INSULATION LOWER SPLITTER

$

$

Not available

35

O42568

SCREW HHC M6-1.OX2O G8.8

$

$

Not available

36

O91297OO94

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

37

O22447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

38

OF4O51E

INSULATION REAR WRAP

$

$

Not available

39

OF8869D

KEY VISE-ACTION LATCH SLOT CIR

$

$

Not available

40

O78115A

WASHER SELF LOCKING DOME #8-32

$

$
