QT02516GVAN - Generac 25kW Home Standby Generator (SN: 4678298 - 4678298) (2006) Engine Common Parts 1.6L (0G3801) Parts Diagram

25kW Home Standby Generator

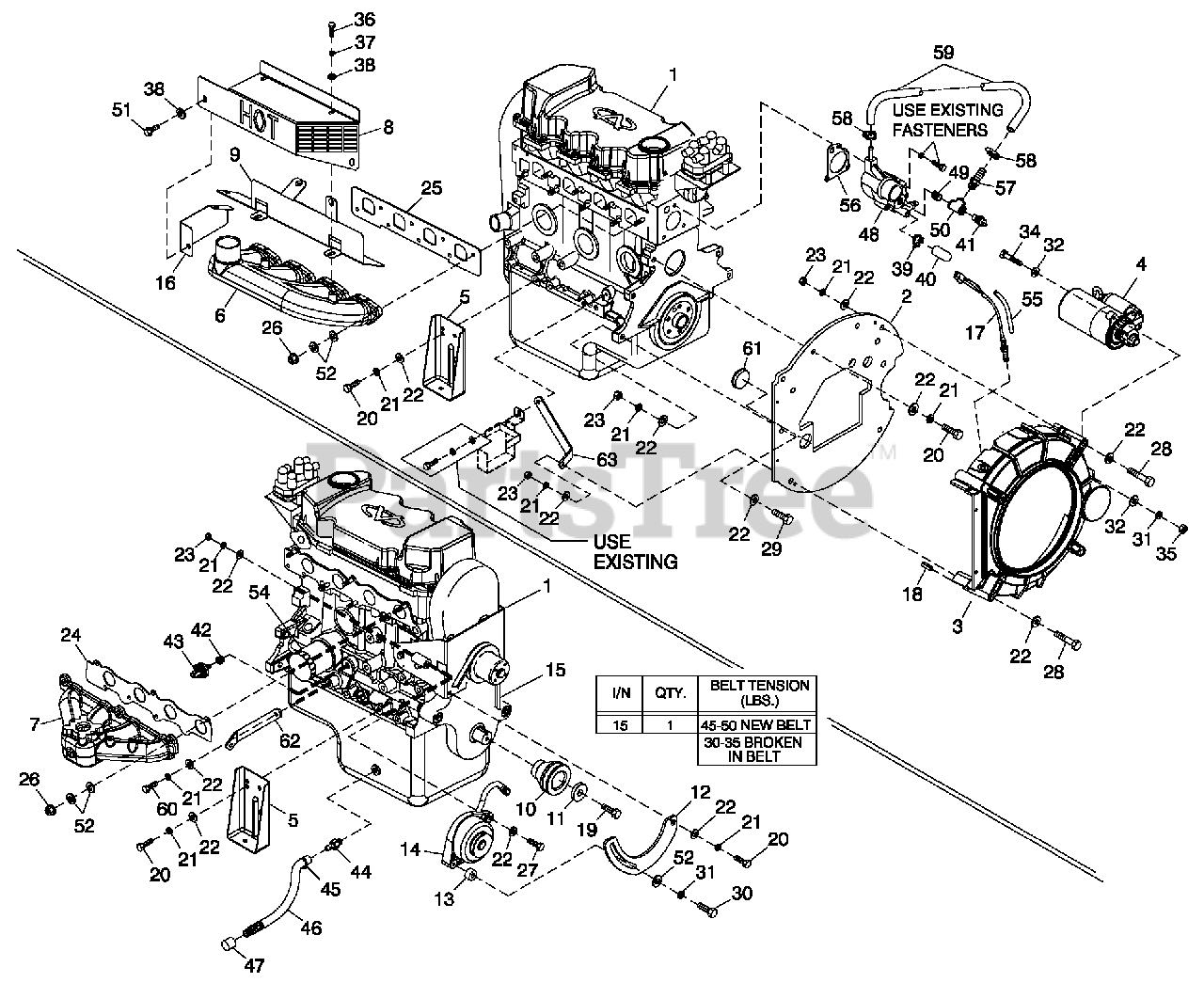

Engine Common Parts 1.6L (0G3801) Parts Diagram

  • Title
1

Generac 0G0207

ENGINE GENERAC1.6L NG

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 0G0834

ENGINE PLATE 1.6L

Note: ORDER PART NUMBER 0G0834A

$

$

Not available

3

Generac 0G0820

HOUSING BLOWER MACHINED 1.6L

Note: ORDER 0G0820A

$

$

Not available

4

Generac 0E9747

STARTER 12 VOLT

Note: ORDER P/N 0G7461RWK. SPACER NOT REQUIRED IF UNIT DOES NOT HAVE ONE. IF UNIT WAS SHIPPED WITH SPACER AND SPACER IS DAMAGED ORDER SPACER P/N 0G0860.

$

$

Not available

5

Generac 0G0839

ENGINE MOUNTING FOOT STAMPING

$23.99

$

Usually ships in 2-12 days

0

6

Generac 0G0781

EXHAUST MANIFOLD 1.6L MACHINED

$200.99

$

Usually ships in 2-12 days

0

7

Generac 0G0722

INTAKE MANIFOLD MACHINED 1.6L

Note: THIS MANIFOLD CAN ACCEPT BOTH STEPPER MOTOR OR THE BOSCH V CONTROL SYSTEMS.

$222.99

$

Usually ships in 2-12 days

0

8

Generac 0G0758

HEAT SHIELD LOWER 1.6L

$41.99

$

Usually ships in 2-12 days

0

9

Generac 0G0431

HEAT SHIELD UPPER 1.6L

$

$

Not available

10

Generac 0G0663

PULLEY CRANKSHAFT MACHINED

$28.99

$

Usually ships in 2-12 days

0

11

Generac 0G0786

WASHER PULLEY

$9.99

$

Usually ships in 2-12 days

0

12

Generac 0G0486

BRACKET TENSIONER

$8.99

$

Usually ships in 2-12 days

0

13

Generac 0F9617A

SPACER ALTERNATOR

$2.99

$

Usually ships in 2-12 days

0

14

Generac 0A1354B

DC ALTERNATR HAN-KOK

$298.99

$

Usually ships in 2-12 days

0

15

Generac 0G0823

V-BELT 3/8X30.6

$23.99

$

Usually ships in 2-12 days

0

16

Generac 0G1467

HEAT SHIELD FRONT 1.6L

$170.99

$

Usually ships in 2-12 days

0

17

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

18

Generac 036710

PIN SPRING 1/4 X 3/4

$

$

Not available

19

Generac 0C5479

SCREW HHC M12-1.5 X 40 G10.9

$3.99

$

Usually ships in 2-12 days

0

20

Generac 059980

SCREW HHC M10-1.5 X 25 G10.9

$

$

Not available

21

Generac 046526

WASHER LOCK M10

$

$

Not available

22

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 0G3922

NUTHEXM10-1.5 CLASS 10 ZINC

$0.99

$

Usually ships in 2-12 days

0

24

Generac 0G0464

GASKET INTAKE MANIFOLD 1.6L

$3.99

$

Usually ships in 2-12 days

0

25

Generac 0G0465

GASKET EXHAUST MANIFOLD 1.6L

$64.99

$

Usually ships in 2-12 days

0

26

Generac 052858

NUT TOP LOCK FL M8-1.25
(Superseded to G052858)

$1.99

$

In Stock, Qty 8

0

27

Generac 061652

SCREW HHC M10-1.5X 85 G8.8

$

$

Not available

28

Generac 0G3920

SCREW HHC M10-1.5X 110 G10.9

$6.49

$

Usually ships in 2-12 days

0

29

Generac 0A7387

SCREW HHC M10-1.5 X 40 G10.9

$2.49

$

Usually ships in 2-12 days

0

30

Generac 039414

SCREW HHC M8-1.25X 35 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

31

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

32

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

33

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

34

Generac 057821

SCREW HHC M8-1.25X 40 G8.8

$

$

Not available

35

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

36

Generac 022507

SCREW HHC 1/4-20 X 1/2 G5

$

$

Not available

37

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

39

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

40

Generac 077996

CAP ANTIFREEZE RUBBER

$

$

Not available

41

Generac 0A6751

SWITCH HI-TEMP 245 D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

42

Generac 035579

BSHG RDCR HEX 1/4 TO 1/8

$

$

Not available

43

Generac 0A8584

SWITCH OIL PRESSURE 10PSI2POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

44

Generac 0C1852

ADAPTER DRAIN OIL

Note: NO LONGER AVAILABLE. ORDER REPLACEMENT KIT 0C18520SRV

$

$

Not available

45

Generac 070928

CLAMP HOSE - OIL DRAIN

$

$

Not available

46

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

47

Generac 069811

CAP HEX 1/4 NPT BRASS

$

$

Not available

48

Generac 0G1241

THERMOSTAT HOUSNG MACHIND 1.6L

$

$

Not available

49

Generac 025065

NIPPLE PIPE 3/8 NPT X 1-1/2

$

$

Not available

50

Generac 027738A

PIPE TEE 3/8 NPT

$21.99

$

Usually ships in 2-12 days

0

51

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

52

Generac 0A8830

WASHER FLAT .34 ID X .75 OD

$7.99

$

Usually ships in 2-12 days

0

53

Generac 0G0905

HARN 1.6L R-200 CPL (NOT SHOWN)

$818.99

$

Usually ships in 2-12 days

0

54

Generac 0G02070100

OIL FILTER 1.6L
(Superseded to 0E7080)

$40.99

$

Usually ships in 2-12 days

0

55

Generac 0F5512

REFLEX WRAP 13MM 13 X 460 (6" LG)

$13.99

$

Usually ships in 2-12 days

0

56

Generac 0G2068

GASKET T-STAT HOUSING 1.6L

$15.99

$

Usually ships in 2-12 days

0

57

Generac 055596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

58

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

59

Generac 0C5210

HOSE 3/8 ID LOW PRES OIL/WATER (11" LG)

$7.99

$

Usually ships in 2-12 days

0

60

Generac 051756

SCREW HHC M10-1.5X 20 G8.8

$

$

Not available

61

Generac 0G3900

CAP, 1.5" HOLE SHALLOW

$1.49

$

Usually ships in 2-12 days

0

62

Generac 0G38620ST03

STRUT RH 1.6L ENG ADAPT PLATE

$48.99

$

Usually ships in 2-12 days

0

63

Generac 0G38580ST03

STRUT LH 1.6L ENG ADAPT PLATE

$47.99

$

Usually ships in 2-12 days

0
