QT02515GNSXR - Generac 25kW Home Standby Generator (SN: 7877832 - 7877832) (2013) Mounting Base 1.6L (0G3531) Parts Diagram

25kW Home Standby Generator

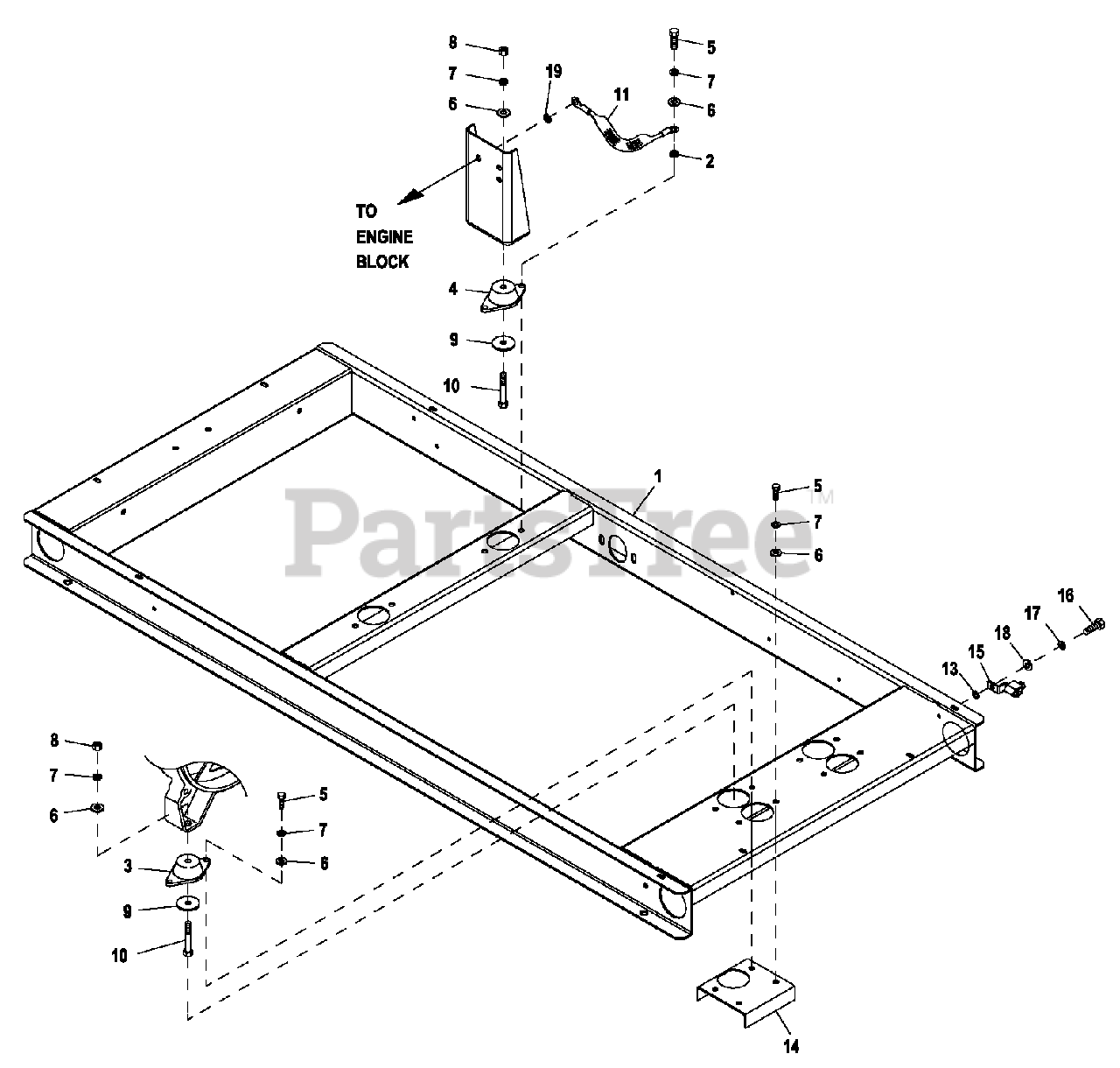

Mounting Base 1.6L (0G3531) Parts Diagram

  • Title

1

Generac 0G3343

MOUNTING BASE 1,6L 2007 C1

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1208.99

$

Usually ships in 2-12 days

0

2

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

3

Generac 070936

DAMPENER VIBRATION
(Superseded to G070936)

$59.99

$

Usually ships in 2-12 days

0

4

Generac 070936C

VIB. ISO. 70-75 DURO

$38.99

$

Usually ships in 2-12 days

0

5

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

6

Generac 022145

WASHER FLAT 5/16 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

7

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

8

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

9

Generac 071956

WASHER FLAT M8

$

$

Not available

10

Generac 051730

SCREW HHC M8-1.25 X 60 G8.8

$

$

Not available

11

Generac 021991

EARTH STRAP

$

$

Not available

13

Generac 026850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available

14

Generac 0G3461

ALTERNATOR SUPPORT BLOCK OFF

$409.99

$

Usually ships in 2-12 days

0

15

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

16

Generac 042568

SCREW HHC M6-1.0 X 20 C8.8

$

$

Not available

17

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 025507

WASHER LOCK EXT 7/16 STL

$

$

Not available
