QT02224GNAN - Generac 22kW Home Standby Generator (SN: 5255628 - 5255630) (2009) Eng common parts 2.4L G2 (0G8885) Parts Diagram

22kW Home Standby Generator

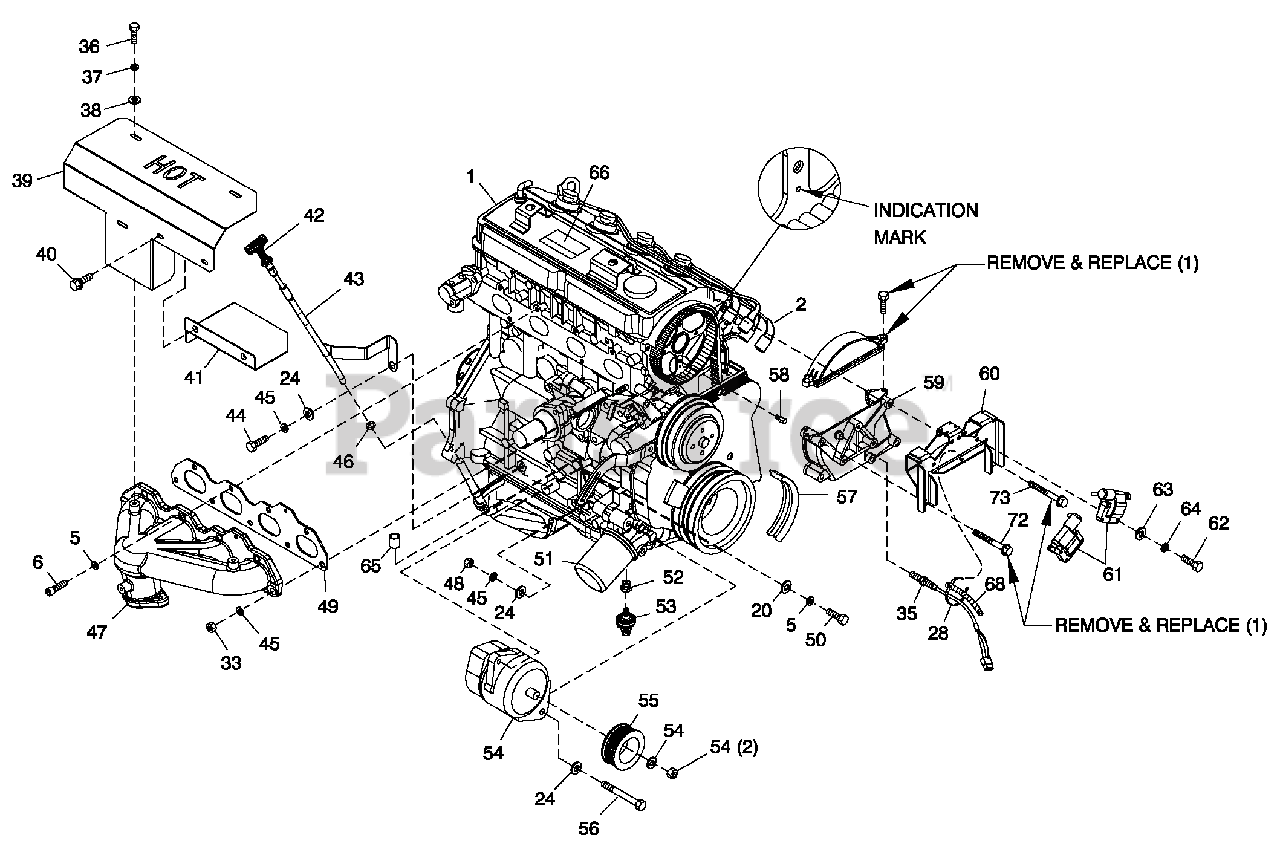

Eng common parts 2.4L G2 (0G8885) Parts Diagram

  • Title
1

0G0408A

ENGINE 2.4L G2

$

$

Not available

2

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

5

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

6

Generac 058306

SCREW SHC M8-1.25 X 25 C12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

7

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

20

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

24

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

28

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

33

Generac 046525

NUT HEX M10-1.25 G8 YEL CHR

$

$

Not available

35

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.. FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

36

Generac 043116

SCREW HHC M6-1.0 X 12 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

37

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

39

Generac 0G92210AS0R

SHIELD EXHAUST

$79.99

$

Usually ships in 2-12 days

0

40

Generac 0D6029

SCREW HHTT M6-1.0 X 16 ZYC

$18.99

$

Usually ships in 2-12 days

0

41

Generac 0G0792A

SHIELD HEAT SML

$11.99

$

Usually ships in 2-12 days

0

42

Generac 0F2664H

ASSY DIPSTICK W/TEXT GTH-530
(Superseded to 0H6859H)

Note: ORDER 0H6859H

$9.99

$

Usually ships in 2-12 days

0

43

Generac 0G8427A

ASSY DIPSTICK TUBE 2.4 G2

$19.99

$

Usually ships in 2-12 days

0

44

Generac 052213

SCREW HHC M10-1.25 X 20 C8.8

$

$

Not available

45

Generac 046526

WASHER LOCK M10

$

$

Not available

47

Generac 0G3910

EXHAUST MANIFOLD G2 (MACHINE)

$272.99

$

Usually ships in 2-12 days

0

48

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

49

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE.

$35.99

$

In Stock, only 1 left!

0

50

Generac 0A8258

SCREW HHC M8-1.25 X 25 C10.9

$0.99

$

Usually ships in 2-12 days

0

52

Generac 042574

ADAPTOR 1/8 NPTF TO 1/8 BSPT

$

$

Not available

53

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

54

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$519.99

$

Usually ships in 2-12 days

0

55

Generac 0G2750

PULLEY 69 OD DC ALTERNATOR

Note: NO LONGER AVAILABLE. MUST ORDER QTY 1 0H8572 PULLEY AND QTY 1 0F3217 SPACER

$

$

Not available

56

Generac 0E4507

SCREW HHC M10-1.5 X 120 C8.8

$4.99

$

Usually ships in 2-12 days

0

57

Generac 0D3488S

BELT SERPENTINE 37.0"

$28.99

$

Usually ships in 2-12 days

0

58

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

59

Generac 0G1477

COVER CAM GEAR G2 REWORKED

$857.99

$

Usually ships in 2-12 days

0

60

Generac 0G8852

BRACKET ASM-2.4L COIL G2

$137.99

$

Usually ships in 2-12 days

0

61

Generac 0G8853

COIL-2.4L G2 IGNITION

$183.99

$

Usually ships in 2-12 days

0

62

Generac 034413

SCREW HHM #10-32 X 1-1/4

$

$

Not available

63

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

64

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

65

Generac 0G9520

PLUG TAPER

Note: SUPPLIED WITH ENGINE.

$11.99

$

Usually ships in 2-12 days

0

66

Generac 0G7313

DECAL EMISSION CTRL INFO 2.4L

$

$

Not available

68

Generac 077043H

CONDUIT FLEX .25"ID (6"LG)

$1.99

$

Usually ships in 2-12 days

0

69

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

72

Generac 052265

SCREW HHC M8-1.25 X 65 C8.8

Note: SUPPLIED WITH ENGINE.

$

$

Not available

73

Generac 052203

SCREW HHC M8-1.25 X 70 C8.8

Note: SUPPLIED WITH ENGINE.

$

$

Not available
