QT02224GNAN - Generac 22kW Home Standby Generator (SN: 5255628 - 5255630) (2009) Eng common parts 2.4L G2 (0G8885) Parts Diagram

22kW Home Standby Generator

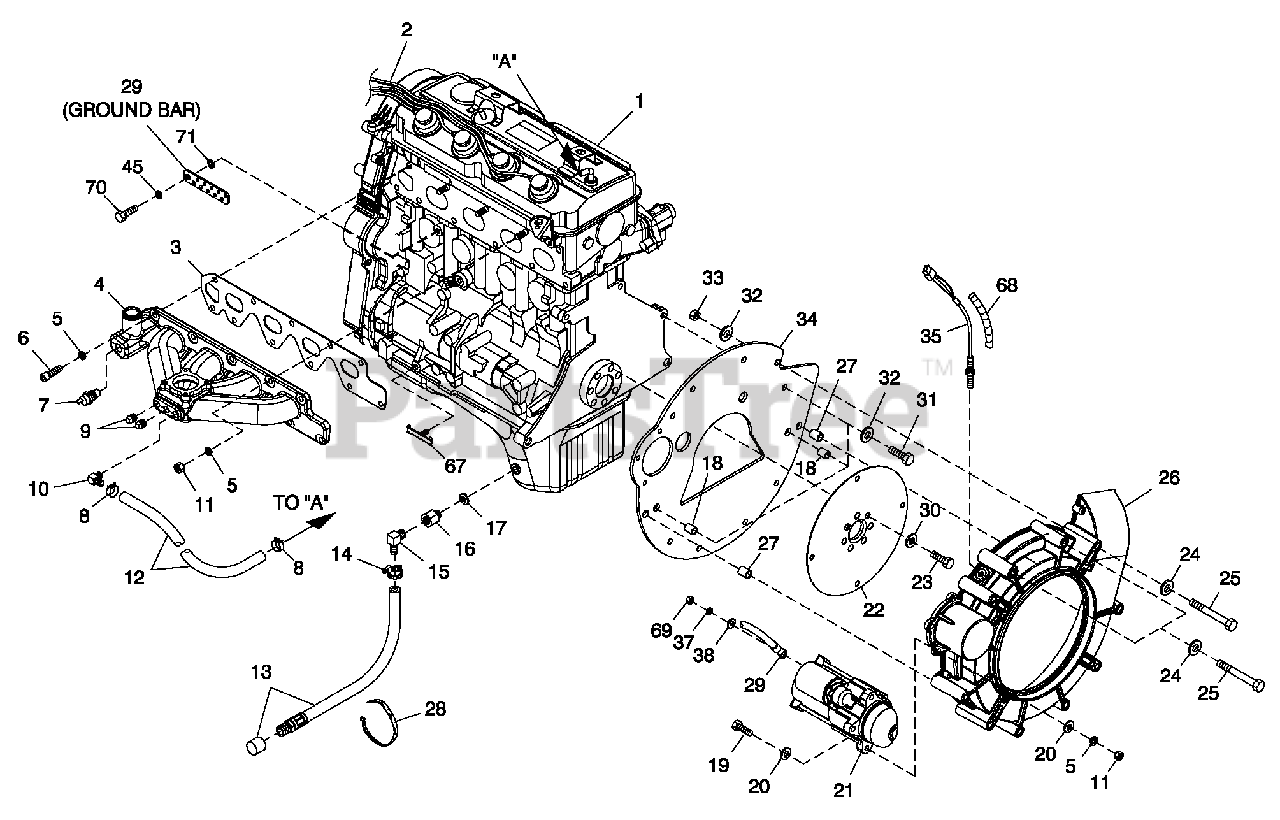

Eng common parts 2.4L G2 (0G8885) Parts Diagram

  • Title

1

0G0408A

ENGINE 2.4L G2

$

$

Not available

2

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

3

Generac 0G0950

GASKET INTAKE MANIFOLD G2

Note: SUPPLIED WITH ENGINE.

$63.99

$

Usually ships in 2-12 days

0

4

Generac 0G8488

MANIFOLD INTAKE (MACHINED)

$305.99

$

Usually ships in 2-12 days

0

5

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

6

Generac 058306

SCREW SHC M8-1.25 X 25 C12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

7

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

8

Generac 048031J

CLAMP HOSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

9

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

10

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

11

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

12

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

13

Generac 069860B

HOSE OIL DRAIN ASSY 16"

Note: NO LONGER AVAILABLE.

$

$

Not available

14

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

15

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

16

Generac 057765

ADAPTER M14-1.50 X 3/8 NPT

$

$

Not available

17

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

18

Generac 0G8759A

BUSHING GUIDE 11.3MM LONG

$1.99

$

Usually ships in 2-12 days

0

19

Generac 039287

SCREW HHC M8-1.25 X 45 C8.8

$

$

Not available

20

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

21

Generac 0G7461

MOTOR STARTER

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

22

Generac 0G8364

PLATE FLEX 2.4L 10" ALT

$53.99

$

Usually ships in 2-12 days

0

23

Generac 0G0114

SCREW HHC M12-1.25 X 15 C10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$6.49

$

Usually ships in 2-12 days

0

27

Generac 0G8759

BUSHING GUIDE 19.3MM LONG

$2.49

$

Usually ships in 2-12 days

0

28

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

29

Generac 0G8877

HARN ENG 2.4L R-200B 1800 NO-T (NOT SHOWN)

$4678.99

$

Usually ships in 2-12 days

0

30

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

31

Generac 052830

SCREW HHC M10-1.25 X 45 C8.8

$

$

Not available

32

Generac 0D8427

WASHER LOCK M10 RIBBED ZINC

$0.99

$

Usually ships in 2-12 days

0

33

Generac 046525

NUT HEX M10-1.25 G8 YEL CHR

$

$

Not available

34

Generac 0G8365

ADAPTER ENGINE PLATE 2.4L G2

$336.99

$

Usually ships in 2-12 days

0

35

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.. FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

36

Generac 043116

SCREW HHC M6-1.0 X 12 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

37

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

38

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

45

Generac 046526

WASHER LOCK M10

$

$

Not available

67

Generac 0F4001E

ANCHOR HARNESS

$1.49

$

Usually ships in 2-12 days

0

68

Generac 077043H

CONDUIT FLEX .25"ID (6"LG)

$1.99

$

Usually ships in 2-12 days

0
