QT02016GNSN - Generac 20kW Home Standby Generator (SN: 4801809 - 4828185) (2007) Cooling System 1.6L C1 (0G3428) Parts Diagram

20kW Home Standby Generator

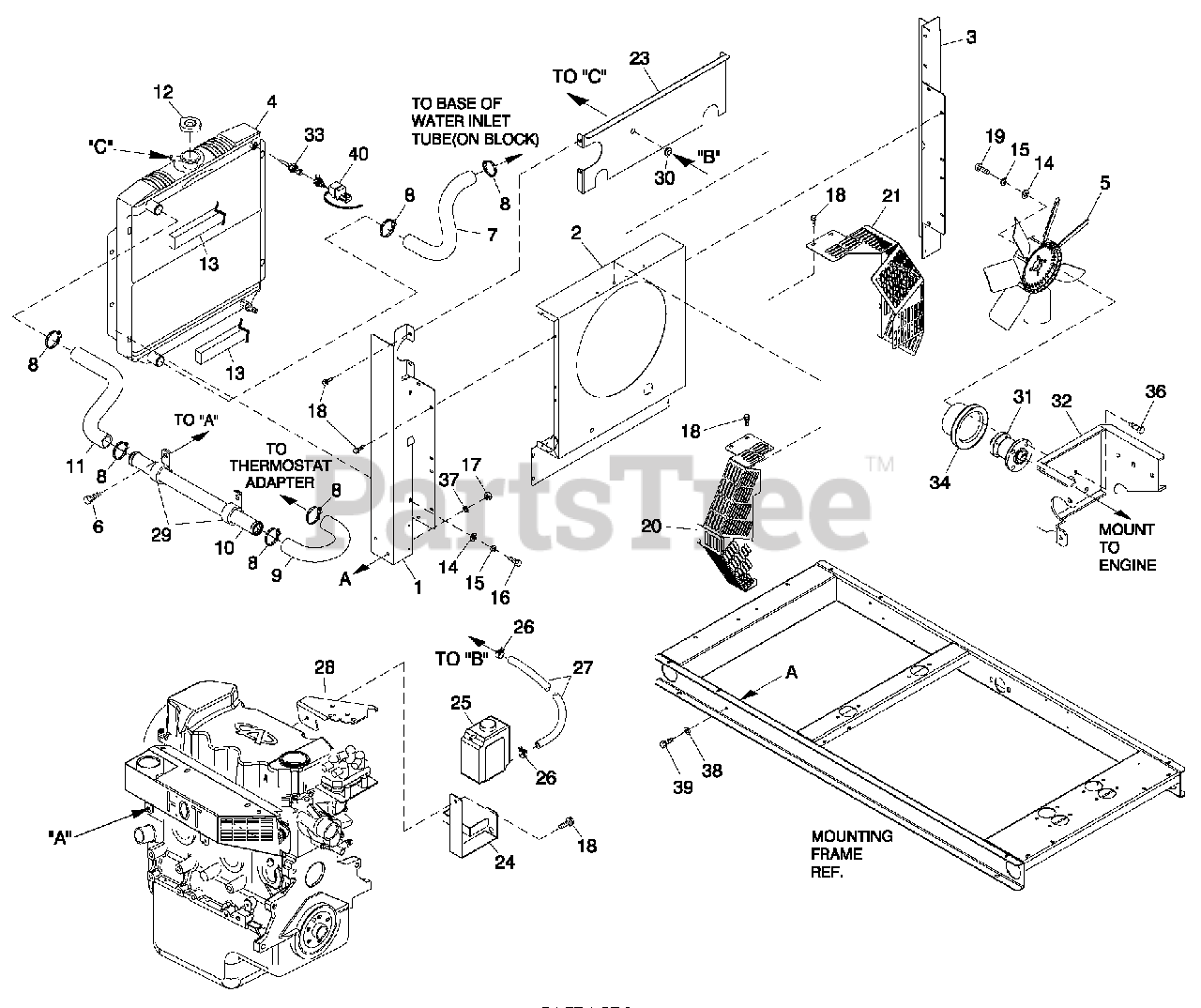

Cooling System 1.6L C1 (0G3428) Parts Diagram

  • Title

1

Generac 0G3418

RADIATOR SUPPORT LH SIDE 1.6L

$107.99

$

Usually ships in 2-12 days

0

2

Generac 0G3421

VENTURI 1.6L

$209.99

$

Usually ships in 2-12 days

0

3

Generac 0G3419

RADIATOR SUPPORT RH SIDE 1.6L

$107.99

$

Usually ships in 2-12 days

0

4

Generac 0E9837B

RADIATOR 1.6L CHY

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS. THIS RADIATOR USES ONE OF TWO CAPS 0G0427 IS 1.75 INCHES HIGH, 046627 IS 1.25 INCHES HIGH

$1103.99

$

Usually ships in 2-12 days

0

5

Generac 0G3553

FAN COOL 450MM DIA 7 BLADE

$70.99

$

Usually ships in 2-12 days

0

6

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

7

Generac 0G4080

HOSE LOWER RADIATOR 1.6L

$98.99

$

Usually ships in 2-12 days

0

8

Generac 099502

CLAMP HOSE #24 B1.06-2.00

$

$

Not available

9

Generac 0G4070

HOSE REAR COOLANT 1.6L

$81.99

$

Usually ships in 2-12 days

0

10

Generac 0G4072

TUBE ENGINE COOLANT 1.6L

$35.99

$

Usually ships in 2-12 days

0

11

Generac 0G4071

HOSE UPPER RADIATOR 1.6L

$51.99

$

Usually ships in 2-12 days

0

12

Generac 046627

CAP RADIATOR

$20.99

$

Usually ships in 2-12 days

0

13

Generac 052250

TAPE FOAM 1 X 1 (24" LG)

$

$

Not available

14

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

15

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

16

Generac 0C8566

SCREW HHFCM6-1.0X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

17

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

18

Generac 0C2454A

SCREW THF M6-1 X 12 N WA Z/JS

$4.49

$

Usually ships in 2-12 days

0

19

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

20

Generac 0G3573

GUARD FAN LH C1

$44.99

$

Usually ships in 2-12 days

0

21

Generac 0G3574

GUARD FAN RH C1

$58.99

$

Usually ships in 2-12 days

0

23

Generac 0G3420

RADIATOR BLOCK-OFF

$248.99

$

Usually ships in 2-12 days

0

24

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

25

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

26

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

27

Generac 029032

HOSE 9/32 ID (43" LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

28

Generac 0G4451

BRACKET STEPPER MOTOR COOLANT

$32.99

$

Usually ships in 2-12 days

0

29

Generac 055934N

CLAMP VINYL 1.31 X.281Z

$4.49

$

Usually ships in 2-12 days

0

30

Generac 0F9504

GROMMET 5/8"X 1 1/8"X5/16"

$2.99

$

Usually ships in 2-12 days

0

31

Generac 0G0568

ASSY FAN BEARING SUPPORT

$157.99

$

Usually ships in 2-12 days

0

32

Generac 0G3433

BRACKET FAN ALT ADAPTER 1.6L

$

$

Not available

33

Generac 0E2507

PROBE COOLANT LEVEL 3/8NPTF

Note: FOR H & G PANELS ORDER 0H50530SRV. FOR R-200,R-200A,R-200B, R-200C ORDER 0H50540SRV. FOR EXTERNAL MOUNTED PROBES IN ALUM. BLOCKS & ALL OTHER PRODUCT ORDER 0E2507.

$192.99

$

Usually ships in 2-12 days

0

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF (USE WITH I/N 40, P/N 0H1851)

$48.99

$

Usually ships in 2-12 days

0

34

Generac 0A2628

PULLEY - FAN 95 DIA

$58.99

$

Usually ships in 2-12 days

0

35

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

36

Generac 042907

SCREW HHC M8-1.25X 16 G8.8
(Superseded to G042907)

Note: APPLY LOCTITE 242 TO I/N 36 BEFORE THREADING INTO l/N 31.

$2.49

$

In Stock, only 4 left!

0

37

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

38

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

39

Generac 039253

SCREW HHC M8-1.25X20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

40

Generac 0H1851

ASSY PCB LCL SENSOR (USE WITH I/N 33, P/N 0H1827 ONLY)

Note: USE WITH R-200 CONTROL PANEL ONLY.

$113.99

$

Usually ships in 2-12 days

0
