QT02016GNSN - Generac 20kW Home Standby Generator (SN: 4647429 - 4794931) (2007) Fuel Systerm NG/LPV 1.6L C1 Cpl (0G0769) Parts Diagram

20kW Home Standby Generator

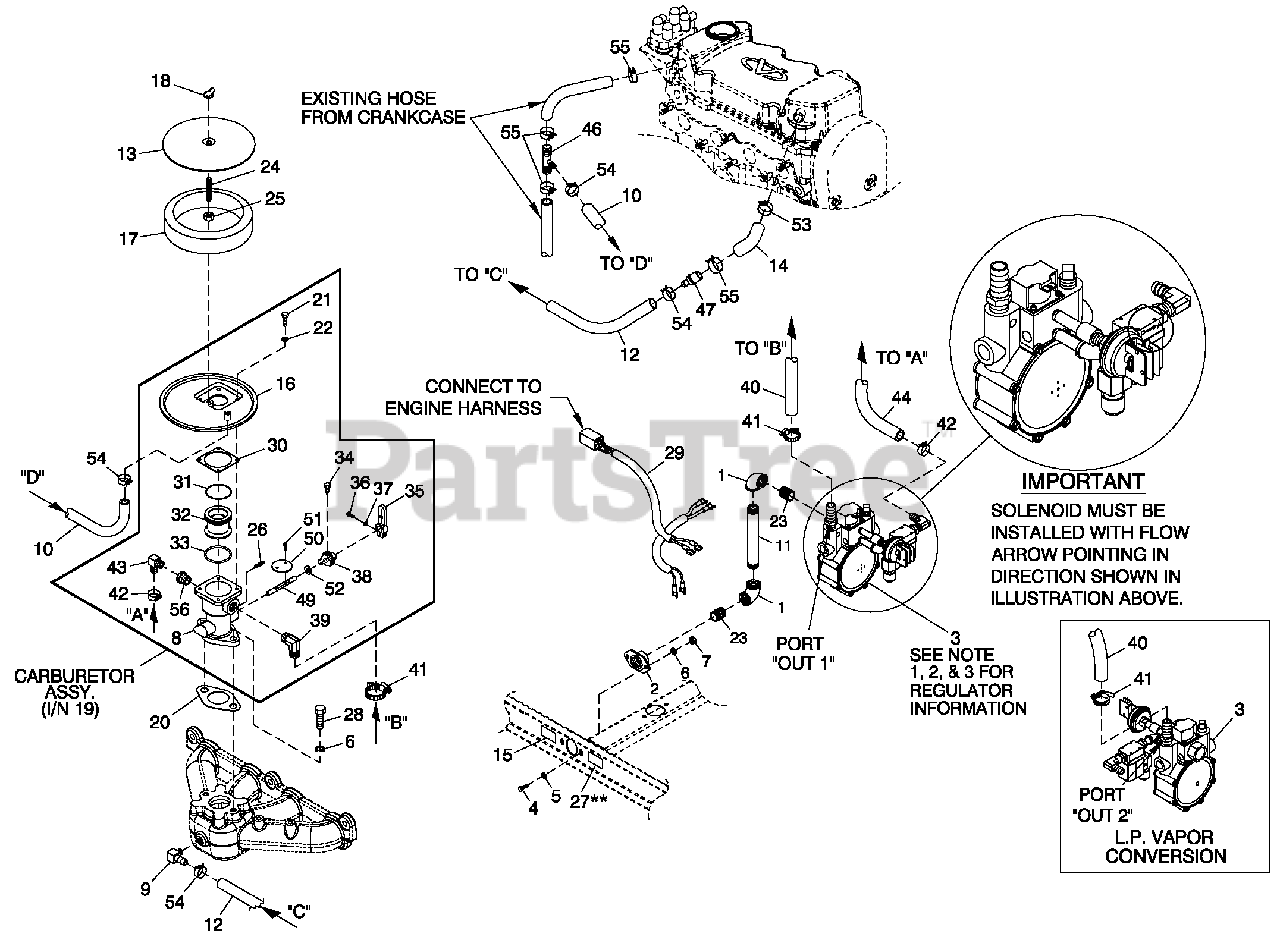

Fuel Systerm NG/LPV 1.6L C1 Cpl (0G0769) Parts Diagram

  • Title

1

Generac 026812

ELBOW 90D 3/4 NPT

$

$

Not available

2

Generac 075580

FLANGE FUEL INLET

$

$

Not available

3

0G1397

FUEL REGULATOR 1.6L REWORK

$

$

Not available

4

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

5

Generac 022145

WASHER FLAT 5/16 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

8

Generac 0F1570

BODY CARBURETOR ASSEMBLY

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY). USE 0F15700SRV

$

$

Not available

9

Generac 0A6344

BARBED EL 90 1/8 NPT X 3/8

$7.99

$

Usually ships in 2-12 days

0

10

Generac 0C5210

HOSE 3/8 ID LOW PRES OIL/WATER (16"LG)

$7.99

$

Usually ships in 2-12 days

0

11

Generac 025424

NIPPLE PIPE 3/4 NPT X 6

$

$

Not available

12

Generac 0C5210

HOSE 3/8 ID LOW PRES OIL/WATER (12"LG)

$7.99

$

Usually ships in 2-12 days

0

13

Generac 0A5547

COVER AIR CLEANER

$10.99

$

Usually ships in 2-12 days

0

14

Generac 0G3178

HOSE BREATHER 1.6L

$5.49

$

Usually ships in 2-12 days

0

15

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

16

Generac 0E0591

ADAPTER CARB. TO AIR CLNR

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$10.99

$

Usually ships in 2-12 days

0

17

Generac 059402

FILTER ELEMENT
(Superseded to G059402)

$18.99

$

Usually ships in 2-12 days

0

18

Generac 037561

NUT WING 1/4-20 NYLK

$

$

Not available

19

0E1028D

ASSY CARBURETOR 1.6L

$

$

Not available

20

Generac 059401

CARBURETOR GASKET
(Superseded to G059401)

$1.49

$

Usually ships in 2-12 days

0

21

Generac 091526

SCREW PPHM M5-0.8 X 12 ZNC

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

22

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$0.99

$

In Stock, Qty 10

0

23

Generac 026915

NIPPLE CLOSE 3/4 X 1.375

$

$

Not available

24

Generac 062522

STUD TH 1/4-20 X 3 G2 ZNC FULL

$

$

Not available

25

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

26

Generac 0E1339

PIN SPRING 3/16 X 5/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Currently unavailable

27

Generac 050279

DECAL FUEL INLET NG

Note: FOR LP VAPOR APPLICATION SUBSTITUE LPG FUEL INLET DECAL P/N 050280 FOR NG FUEL INLET DECAL P/N 050279 (ITEM 27).

$

$

Not available

Generac 050280

DECAL FUEL INLET LPG

$

$

Not available

28

Generac 030795

SCREW HHC 5/16-18 X 1 G5

$

$

Not available

29

Generac 0F6155

HARNESS FUEL JUMPER SINGLE REG

$72.99

$

Usually ships in 2-12 days

0

30

Generac 0E1104

GASKET AIR CLEANER ADAPTER

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$1.49

$

Usually ships in 2-12 days

0

31

Generac 0E0668

O-RING 2-028 1.38 X 1.50 X .06

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

32

Generac 0E0590A

VENTURI 20MM

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

33

Generac 0C5133

O-RING 29.82 X 2.62

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$0.99

$

In Stock, only 1 left!

0

34

Generac 0E0665

SCREW THROTTLE PIN STOP

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$6.49

$

Usually ships in 2-12 days

0

35

Generac 0E1108

THROTTLE ARM REWORK

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY ). ORDER P/N 0E11080SRV.

$

$

Not available

36

Generac 033138

SCREW HHM #10-32 X 5/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

37

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$3.49

$

In Stock, only 1 left!

0

38

Generac 0E0645

LEVER THROTTLE STOP

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$7.49

$

Usually ships in 2-12 days

0

39

Generac 034339

BARBED EL 90 3/8 NPT X 5/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

40

Generac 059194

HOSE 5/8 ID LPG & NG (16"LG)

$

$

Not available

41

Generac 057823

CLAMP HOSE #10 .56 - 1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

42

Generac 048031G

CLAMP HOSE BAND .41

$0.99

$

In Stock, Qty 5

0

43

Generac 039450

DECAL DANGER HIGH VOLTAGE BI

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

44

Generac 029470

HOSE 3/16 ID FUEL LINE (22"LG)

$

$

Not available

46

Generac 0G1985

HOSE BARB REDUCR TEE 3/4"-3/8"

$4.49

$

Usually ships in 2-12 days

0

47

Generac 0F3994

PCV VALVE 2.5L FORD

$32.71

$

Usually ships in 2-12 days

0

49

Generac 0E0568

SHAFT THROTTLE 1.5L

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$50.99

$

Usually ships in 2-12 days

0

50

Generac 0E0527

THROTTLE VALVE PLATE 27MM

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$5.99

$

Usually ships in 2-12 days

0

51

Generac 025105

SCREW RHMS 6-32 X 1/4 ZINC
(Superseded to G025105)

Note: APPLY LOCTITE TO I/N 51 BEFORE THREADING INTO I/N 49.

$0.99

$

Usually ships in 2-12 days

0

52

Generac 0E0991

SEAL SHAFT COVER

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$0.99

$

Usually ships in 2-12 days

0

53

Generac 048031P

CLAMP HOSE BAND .88"

$1.99

$

Usually ships in 2-12 days

0

54

Generac 048031J

CLAMP HOSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

55

Generac 048031L

CLAMP HOSE BAND 1.0"

$12.99

$

Usually ships in 2-12 days

0

56

Generac 035579

BSHG RDCR HEX 1/4 TO 1/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available
