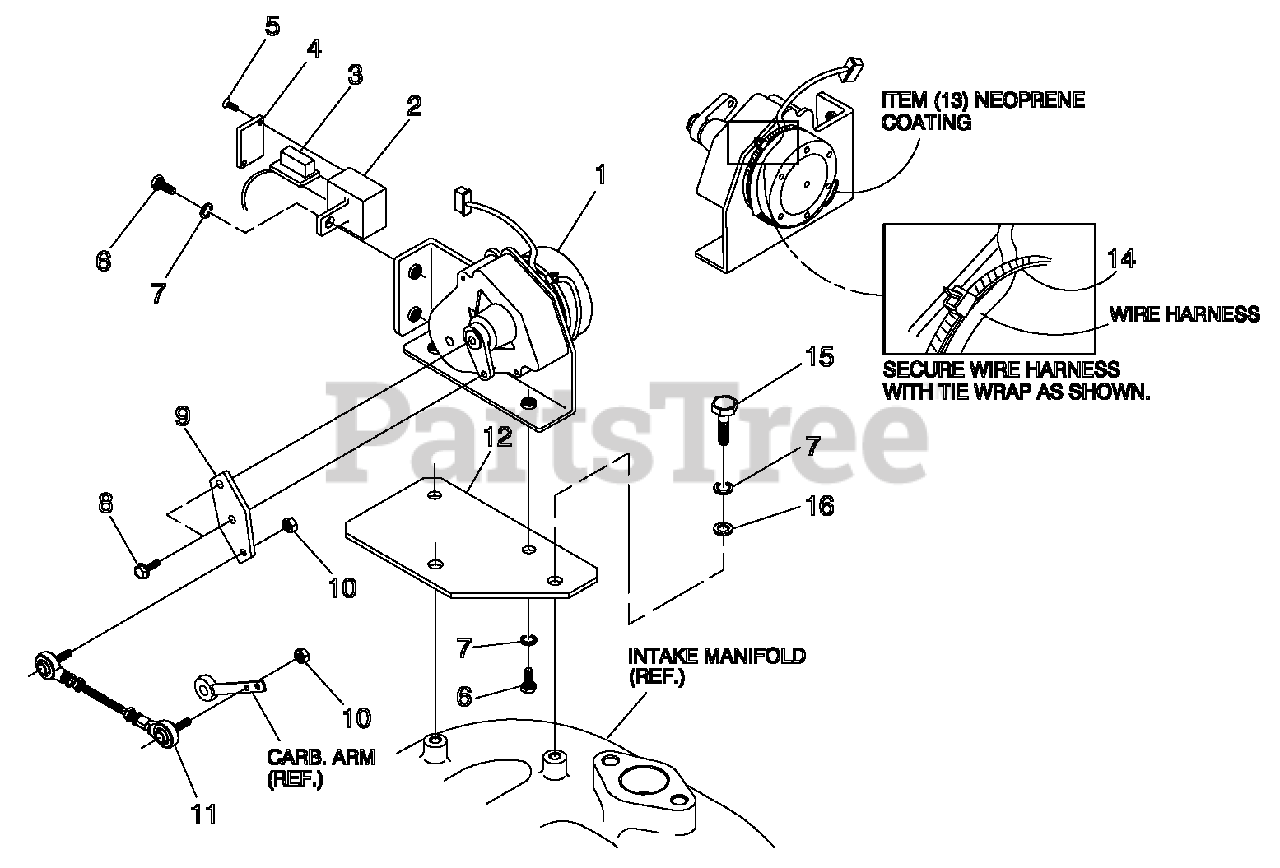

QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4340210 - 4340214) (2006) Governor Assembly (0A7216) Parts Diagram

20kW Home Standby Generator

Governor Assembly (0A7216) Parts Diagram

  • Title

1

Generac 98290

ASM MOTOR STEPPER

$

$

Not available

2

Generac 098941A

HOUSING GOVERNOR CONNECTOR

$25.99

$

Usually ships in 2-12 days

0

3

Generac 098958A

CONNECTOR INTERFACE ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0

4

Generac 098942A

COVER CONNECTOR HOUSING

$27.99

$

Usually ships in 2-12 days

0

5

Generac 98225

SCREW FHM #2 X 5/8 SELF TAP

$

$

Not available

6

Generac 43146

SCREW HHC M6'1.0 X 10 G8.8

$

$

Not available

7

Generac 22097

WASHER LOCK M6'1/4

$

$

Not available

8

Generac 64526

SCREW TAP HWH #6'25 X 3/8 ZINC

$

$

Not available

9

Generac 98783

LEVER STEPPER MOTOR

$

$

Not available

10

Generac 37398

NUT LOCK HEX #10'32 NYL INS

$

$

Not available

11

Generac 0A7041

ASSEMBLY CARBURATOR LINKAGE

$

$

Not available

12

Generac 0A7106

BRACKET STEPPER MOTOR

$20.99

$

Usually ships in 2-12 days

0

13

Generac 74031

LIQUID NEOPRENE

$

$

Not available

14

Generac 029333A

TIE WRAP 7.4"X.19" BLK UL

$0.99

$

Usually ships in 2-12 days

0

15

Generac 22507

SCREW HHC 1/4'20 X 1/2 G5

$

$

Not available

16

Generac 22473

WASHER FLAT 1/4 ZINC

$

$

Not available
