QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4340210 - 4340214) (2006) Cooling System 1.5L C1 (0F7466) Parts Diagram

20kW Home Standby Generator

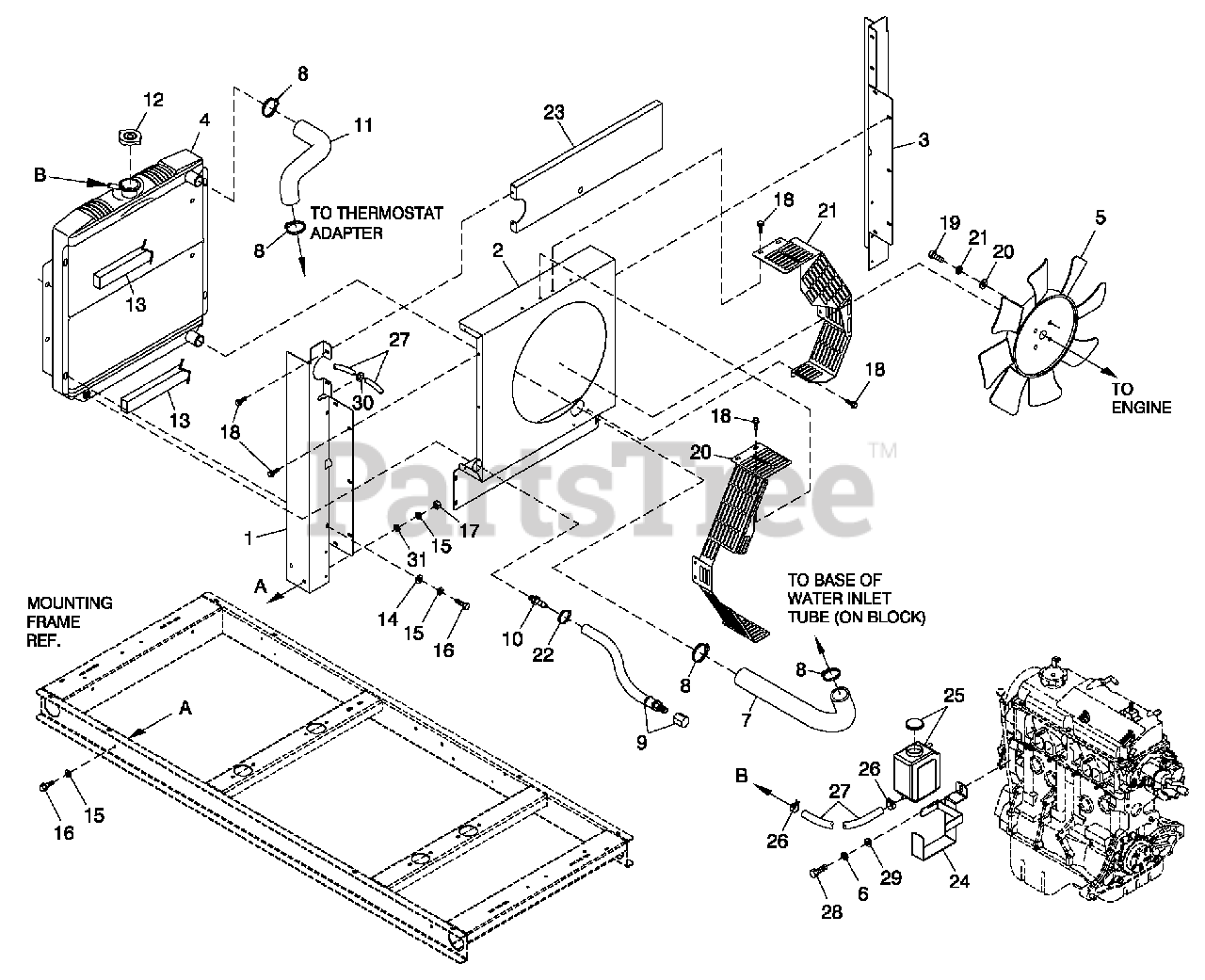

Cooling System 1.5L C1 (0F7466) Parts Diagram

  • Title

1

Generac 0F7211

SUPPORT RADIATOR LH SIDE

$141.99

$

Usually ships in 2-12 days

0

2

0F7209

VENTURI 15" DIA FAN

$

$

Not available

3

Generac 0F7210

SUPPORT RADIATOR RH SIDE

Note: OBSOLETE

$

$

Not available

4

Generac 0E9837A

RADIATOR 2.5L CPL

$1260.99

$

Usually ships in 2-12 days

0

5

Generac 0E1936

FAN COOLING 15"

Note: ORDER P/N 097379 FOR 2.4L KIA-YEAR 1992 THRU 1998.

$16.99

$

Usually ships in 2-12 days

0

6

Generac 22129

WASHER LOCK M8'5/16

$

$

Not available

7

Generac 0F7166

RADIATOR HOSE LWR 1.5L C1 CPL

$57.99

$

Usually ships in 2-12 days

0

8

Generac 99502

CLAMP HOSE #24 B1.06'2.00

$

$

Not available

9

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

10

Generac 35461

BARBED STR 1/4 NPT X 3/8

$

$

Not available

11

Generac 0A6258

HOSE ' UPPER RADIATOR

$57.99

$

Usually ships in 2-12 days

0

12

Generac 46627

CAP RADIATOR

$

$

Not available

13

Generac 52250

TAPE FOAM 1 X 1 (17" LG)

$

$

Not available

14

Generac 22473

WASHER FLAT 1/4'M6 ZINC

$

$

Not available

15

Generac 22097

WASHER LOCK M6'1/4

$

$

Not available

16

Generac 0C8566

SCREW HHFC M6'1.0 X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

17

Generac 49813

NUT HEX M6 X 1.0 G8 YEL CHR

$

$

Not available

18

Generac 0C2454

SCREW THF M6'1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

19

Generac 55816

SCREW HHC M6'1.0 X 70 G8.8

$

$

Not available

20

Generac 0F7594

GUARD FAN LH C1 CPL

Note: OBSOLETE

$

$

Not available

21

Generac 0F7595

GUARD FAN RH C1 CPL

$61.99

$

Usually ships in 2-12 days

0

22

Generac 0C7649

CLAMP HOSE .38'.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

23

Generac 0F7320

BLOCK OFF UPPER

Note: OBSOLETE

$

$

Not available

24

Generac 0F1433

BRACKET 2.5L FORD WATER BOTTLE

$258.99

$

Usually ships in 2-12 days

0

25

Generac 76749

TANK COOLANT RECOVERY

$

$

Not available

26

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

27

Generac 29032

HOSE 9/32 ID (40" LG)

$

$

Not available

28

Generac 40976

SCREW SHC M8'1.25 X 20 G12.9

$

$

Not available

29

Generac 22145

WASHER FLAT 5/16'M8 ZINC

$

$

Not available

30

Generac 29107

GROMMET 7/8 X 3/16 X 5/8

$

$

Not available

31

Generac 26850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available
