QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4298157 - 4461143) (2006) Battery C1 COPL (OF7422) Parts Diagram

20kW Home Standby Generator

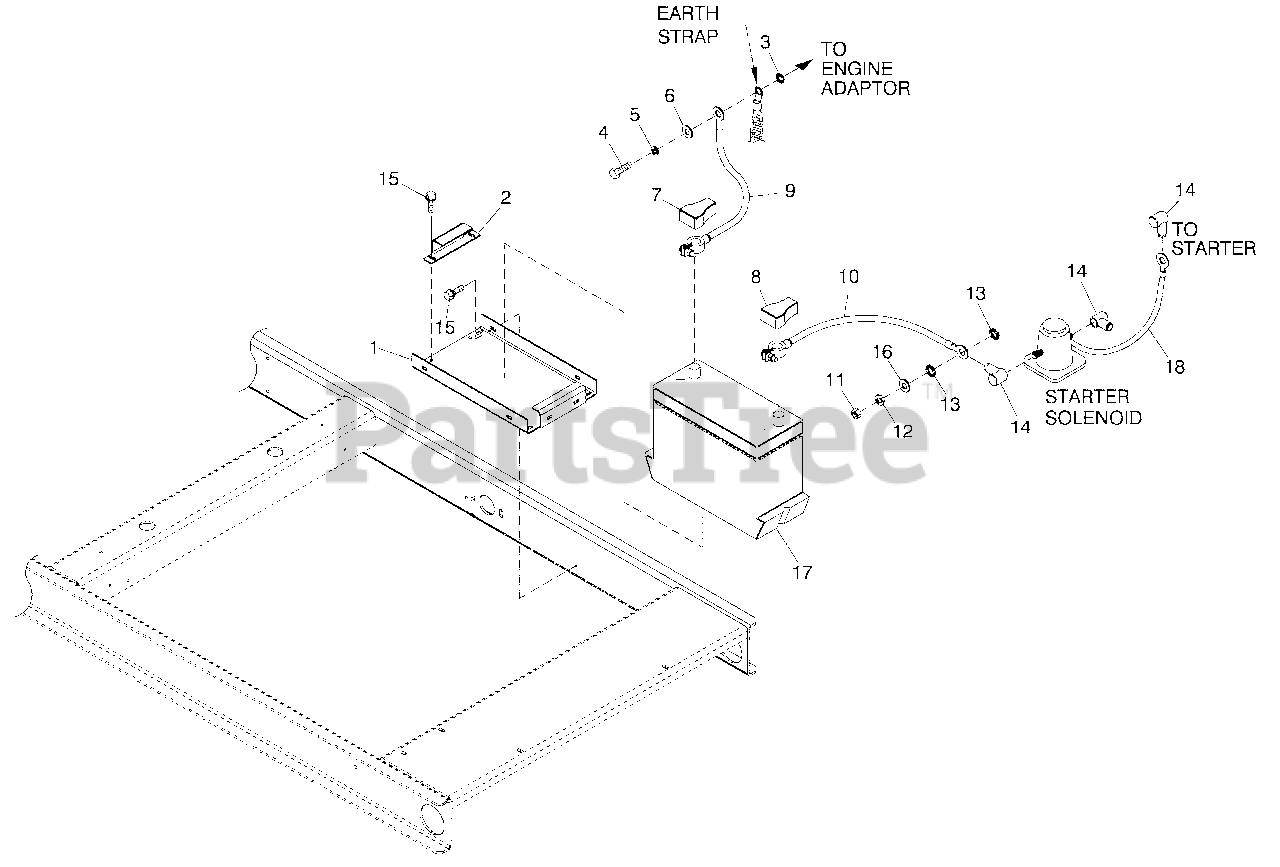

Battery C1 COPL (OF7422) Parts Diagram

  • Title

1

Generac 0F3408B

BATTERY TRAY C1 CPL

$87.99

$

In Stock, only 1 left!

0

2

Generac 0F3411

STRAP BATTERY RETAINMENT

$7.99

$

In Stock, only 1 left!

0

3

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

4

Generac 052647

SCREW SHC M10'1.5 X 25 G12.9

$

$

Not available

5

Generac 046526

WASHER LOCK M10

$

$

Not available

6

Generac 022131

WASHER FLAT 3/8'M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

7

Generac 050331A

BATT POST COVER RED +

$4.49

$

Usually ships in 2-12 days

0

8

Generac 050331

BATT POST COVER BLK '

$

$

Not available

9

Generac 038805J

CABLE BATTERY BLK #1 X 30.00

$63.99

$

Usually ships in 2-12 days

0

10

Generac 038804U

CABLE BATTERY RED #1 X 28.00

$101.99

$

Usually ships in 2-12 days

0

11

Generac 045771

NUT HEX M8'1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

12

Generac 022129

WASHER LOCK M8'5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

13

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

14

Generac 0F3976

BOOT CONTACTOR CABLES

$1.99

$

Usually ships in 2-12 days

0

15

Generac 0C2454

SCREW THF M6'1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

16

Generac 022145

WASHER FLAT 5/16'M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

17

Generac 077483

BATTERY 12VDC 75'AH 26

$

$

Not available

18

Generac 0742600131

ASSY WIRE #16 RED 1.6

$

$

Not available
