QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4274220 - 4287437) (2005) Engine Common Parts 1.5L CPL (0F7444) Parts Diagram

20kW Home Standby Generator

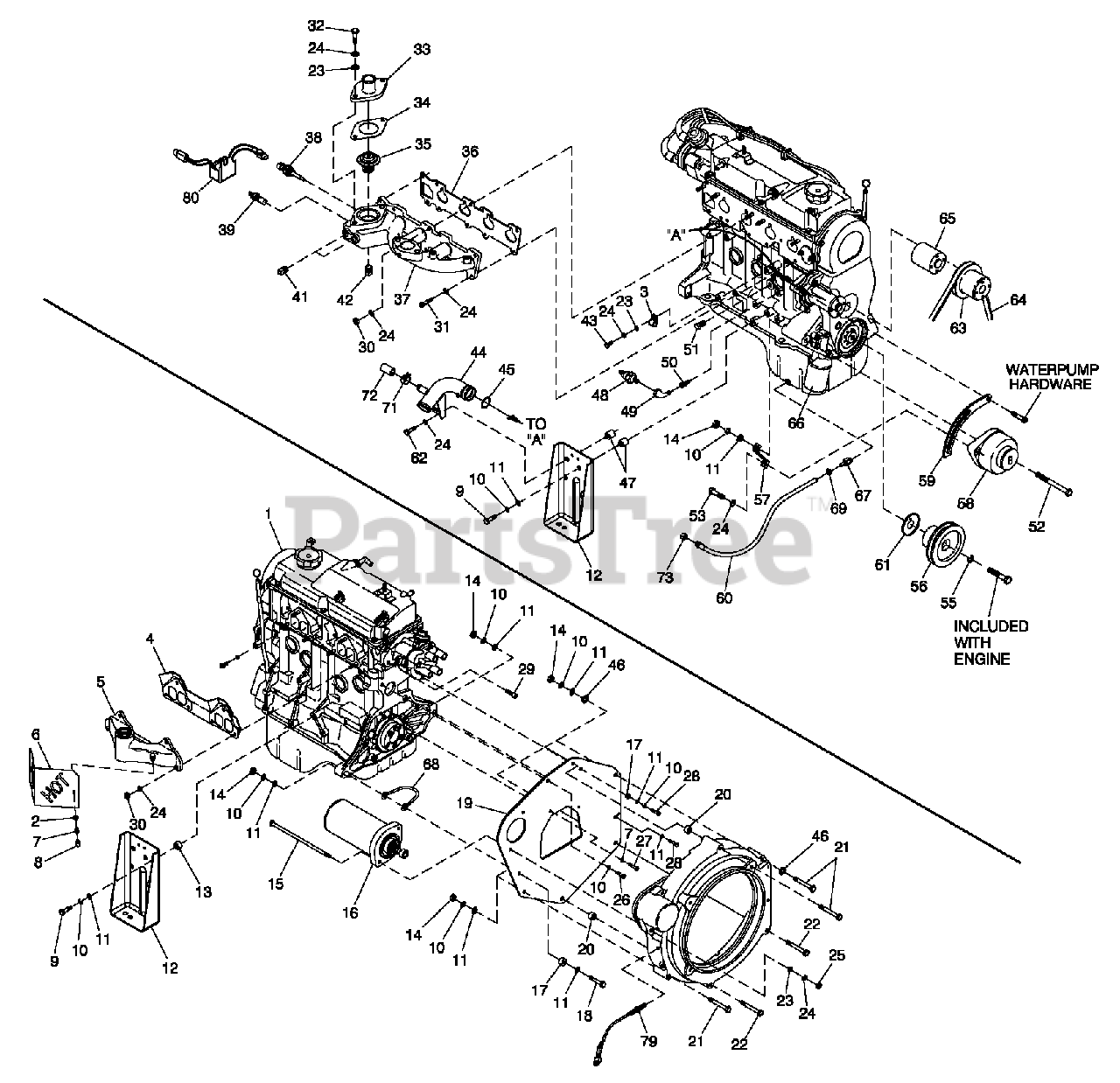

Engine Common Parts 1.5L CPL (0F7444) Parts Diagram

  • Title

1

Generac 0A4531

ENGINE'1.5L

$

$

Not available

2

Generac 22473

WASHER FLAT 1/4 ZINC

$

$

Not available

3

Generac 055934C

CLAMP VINYL .5 X .406 Z

Note: CLAMP FOR WIRING HARNESS (NOT SHOWN)

$3.49

$

Usually ships in 2-12 days

0

4

Generac 0A45310258

GASKET'EXHAUST MANIFOLD

$127.99

$

Usually ships in 2-12 days

0

5

Generac 0A4355

MANIFOLD'EXHAUST

$1013.99

$

Usually ships in 2-12 days

0

6

Generac 0E2632

HEAT SHIELD EXH 1.5L

$28.99

$

Usually ships in 2-12 days

0

7

Generac 22097

WASHER LOCK M6'1/4

$

$

Not available

8

Generac 22507

SCREW HHC 1/4'20 X 1/2 G5

$

$

Not available

9

Generac 52212

SCREW HHC M10'1.25 X 25 G8.8

$

$

Not available

10

Generac 46526

WASHER'LOCK'M10

$

$

Not available

11

Generac 22131

WASHER FLAT 3/8 ZINC

$

$

Not available

12

Generac 0C2499

STAMPING ENG FOOT

$11.99

$

Usually ships in 2-12 days

0

13

Generac 55993

SPACER .41 X .75 X .12 STL/ZNC

$

$

Not available

14

Generac 45772

NUT HEX M10'1.5 G8 YEL CHR

$

$

Not available

15

Generac 23586

SCREW SHC 5/16'18 X 2 G8.8 NZ

$

$

Not available

16

Generac 20692

STARTER'12V

$

$

Not available

17

Generac 0A7005

SPACER .56 X 1 X .37 ST/ZNC

$

$

Not available

18

Generac 52243

SCREW HHC M10'1.5 X 60 G8.8

$

$

Not available

19

Generac 0A4772

ENGINE PLATE

$

$

Not available

20

Generac 70901

SLEEVE DOWEL BLHSG

$

$

Not available

21

Generac 51735

SCREW HHC M10'1.5 X 70 G8.8

$

$

Not available

22

Generac 56768

SCREW HHC M10'1.5 X 90 G8.8

$

$

Not available

23

Generac 22145

WASHER FLAT 5/16 ZINC

$

$

Not available

24

Generac 22129

WASHER LOCK M8'5/16

$

$

Not available

25

Generac 22259

NUT HEX 5/16'18 STEEL

$

$

Not available

26

Generac 52213

SCREW HHC M10'1.25 X 20 G8.8

$

$

Not available

27

Generac 47411

SCREW HHC M6'1.0 X 16 G8.8

$

$

Not available

28

Generac 52830

SCREW HHC M10'1.25 X 45 G8.8

$

$

Not available

29

Generac 0C3153

SCREW TBH M8'1.25 X 30

$

$

Currently unavailable

30

Generac 45771

NUT HEX M8'1.25 G8 YEL CHR

$

$

Not available

31

Generac 58306

SCREW SHC M8'1.25 X 25 G12.9

$

$

Not available

32

Generac 30795

SCREW HHC 5/16'18 X 1 G5

$

$

Not available

33

Generac 0A2711A

ADAPTER'THERMOSTAT

$636.99

$

Usually ships in 2-12 days

0

34

Generac 48665

GASKET THERMOSTAT

$

$

Not available

35

Generac 75885

THERMOSTAT 195 DEG

$

$

Not available

36

Generac 0A45310257

GASKET INLET MANIFOLD

$52.99

$

Usually ships in 2-12 days

0

37

Generac 0E1100

MANIFOLD INTAKE MACHINED

$494.50

$

Usually ships in 2-12 days

0

38

Generac 0E2507

PROBE, COOLANT LEVEL 3/8NPTF

Note: FOR H & G PANELS ORDER 0H50530SRV. FOR R-200,R-200A,R-200B, R-200C ORDER 0H50540SRV. FOR EXTERNAL MOUNTED PROBES IN ALUM. BLOCKS & ALL OTHER PRODUCT ORDER 0E2507.

$192.99

$

Usually ships in 2-12 days

0

39

Generac 0A6751

SW'TMP 245 DEG 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

41

Generac 26925

PLUG STD PIPE 3/8 STEEL SQ HD

$

$

Not available

42

Generac 61012

PLUG STD PIPE 1/8 SCKT HD

$

$

Not available

43

Generac 39253

SCREW HHC M8'1.25 X 20 G8.8

$

$

Not available

44

Generac 0A5110

PIPE WATER'INLET

Note: PART IS NO LONGER AVAILABLE.

$

$

Not available

45

Generac 0A7006

O'RING 1'1/16 X 1'5/16 X 1/8

$2.49

$

Usually ships in 2-12 days

0

46

Generac 25507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

47

Generac 022500B

SPACER .41 X .75 X .25 ST/ZNC

$3.49

$

Usually ships in 2-12 days

0

48

Generac 0A8584

SWITCH OIL PRESSURE

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

49

Generac 36277

ELBOW 90D STREET 1/8

$

$

Not available

50

Generac 42574

ADAPTOR 1/8 NPTF TO 1/8'28

$

$

Not available

51

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

52

Generac 0A6701

SCREW HHC M10'1.5 X 110 G8.8

$5.99

$

Usually ships in 2-12 days

0

53

Generac 39414

SCREW HHC M8'1.25 X 35 G8.8

$

$

Not available

55

Generac 51769

WASHER LOCK M12

$

$

Not available

56

Generac 0A4800A

PULLEY'CRANKSHAFT (3600 RPM)

$81.99

$

Usually ships in 2-12 days

0

57

Generac 0A5839

BRACKET ' ALT SUPPRT

$15.99

$

Usually ships in 2-12 days

0

58

Generac 0A1354B

DC ALTERNATOR'12V

$298.99

$

Usually ships in 2-12 days

0

59

Generac 0A4839

ARM ADJUST ALTERNATOR

$41.99

$

Usually ships in 2-12 days

0

60

Generac 069860C

HOSE ASM.'OIL DRAIN

$55.99

$

Usually ships in 2-12 days

0

61

Generac 0F3856

GUARD CRANKSHAFT 1.5L

$2.49

$

Usually ships in 2-12 days

0

62

Generac 58443

SCREW CRIMPTITE 1/4'20 X 5/

$

$

Not available

63

Generac 0A2628

PULLEY ' FAN 95 DIA

$58.99

$

Usually ships in 2-12 days

0

64

Generac 0A5586

V'BELT 3/8 X 28.9D

$48.99

$

Usually ships in 2-12 days

0

65

Generac 0A4814

SPACER PULLEY

Note: OBSOLETE

$57.99

$

Usually ships in 2-12 days

0

66

Generac 0A45310244

FILTER OIL

$50.99

$

Usually ships in 2-12 days

0

67

Generac 0C1852

ADAPTER DRAIN OIL

Note: NO LONGER AVAILABLE. ORDER REPLACEMENT KIT 0C18520SRV

$

$

Not available

68

Generac 912970066

GROUND WIRE (STARTER)

$

$

Not available

69

Generac 70928

CLAMP HOSE ' OIL DRAIN

$

$

Not available

70

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

71

Generac 35473

CLAMP HOSE #12 .50'1.25

$

$

Not available

72

Generac 77996

CAP ANTIFREEZE RUBBER

$

$

Not available

73

Generac 69811

CAP HEX 1/4 NPT BRASS

$

$

Not available

74

Generac 0A1354A

REGULATOR ' DC ALT

Note: NOT SHOWN

$115.99

$

Usually ships in 2-12 days

0

75

Generac 0E3257

SCREW HWHTF M6'1.0 X 16

Note: NOT SHOWN

$5.49

$

Usually ships in 2-12 days

0

76

Generac 22473

WASHER FLAT 1/4'M6 ZINC

Note: NOT SHOWN

$

$

Not available

77

Generac 22097

WASHER LOCK M6'1/4

Note: NOT SHOWN

$

$

Not available

79

Generac 0D2244M

ASSY MAGPICKUP (3/8'24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

80

Generac 0F9483

ASSY PCB WATERLEVEL SNSR INTFC

$126.99

$

Usually ships in 2-12 days

0
