QT01816GNAN - Generac 18kW Home Standby Generator (SN: 4803738 - 4803738) (2007) Enclosure C1 CPL (0G3534) Parts Diagram

18kW Home Standby Generator

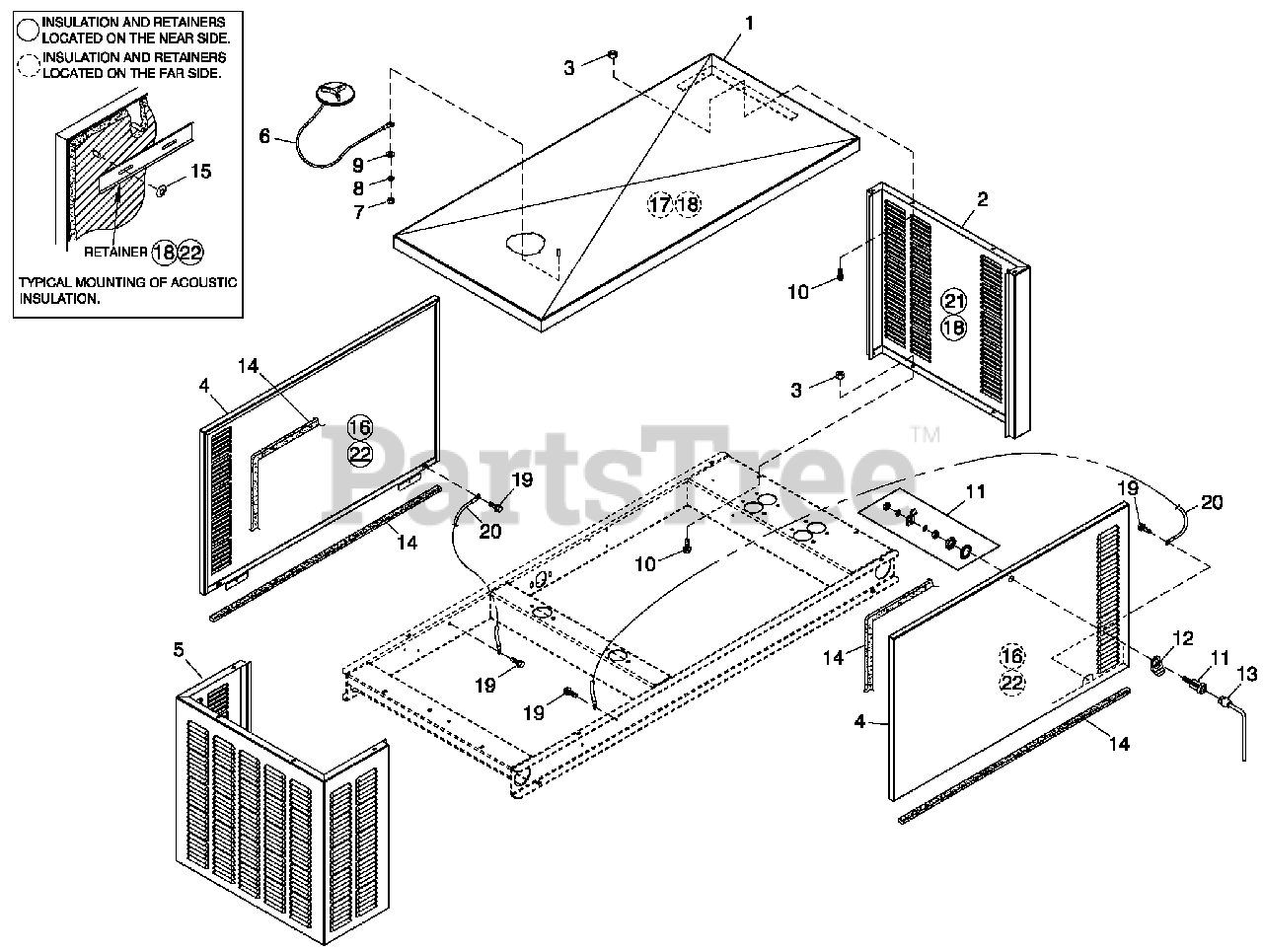

Enclosure C1 CPL (0G3534) Parts Diagram

  • Title
1

0G3337

ROOF 1.6L C1

Note: REFER TO CHART BELOW FOR COLOR AND MATERIAL TYPE

$

$

Not available

2

0G3336

REAR INTAKE WRAP 1.6L C1

Note: REFER TO CHART BELOW FOR COLOR AND MATERIAL TYPE

$

$

Not available

3

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 10 & 19 THREAD FORMING FASTENER AND ITEM 3 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME MANNER.

$1.49

$

Usually ships in 2-12 days

0

4

0G3341

RIGHT SIDE DOOR 1.6L C1

Note: REFER TO CHART BELOW FOR COLOR AND MATERIAL TYPE

$

$

Not available

5

0G3335

FRONT DISCHARGE WRAP 1.6L C1

Note: REFER TO CHART BELOW FOR COLOR AND MATERIAL TYPE

$

$

Not available

6

Generac 0F4487A

ASSY ACCESS COVER

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

7

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

8

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

9

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

10

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

11

Generac 0F5048D

VISE-ACTION LATCH, SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

12

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

Usually ships in 2-12 days

0

13

Generac 0F8869D

KEY VISE-ACTION LATCH,SLOT CIR

$11.99

$

In Stock, only 1 left!

0

14

Generac 089961

FOAM STRIP 3/4"WIDE X 3/16"THK (294"LG)

$

$

Not available

15

Generac 078115

WASHER SELF LOCKING DOME

$

$

Not available

16

Generac 0G4029

INSULATION SIDE DOOR C1

$113.99

$

Usually ships in 2-12 days

0

17

Generac 0G4029A

INSULATION ROOF C1

Note: ORDER 0H7518A

$

$

Not available

18

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

19

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

20

Generac 0912970090

ASSY WIRE 14AWG GRN/YEL (32.25TG)

$

$

Not available

21

Generac 0G4029B

INSULATION REAR C1

$44.99

$

Usually ships in 2-12 days

0

22

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0
