QST24BE522 - Exmark 52" Quest Zero-Turn Mower, 24hp Briggs & Stratton (SN: 720000 - 789999) (2008) 48" Deck Group Parts Diagram

52" Quest Zero-Turn Mower, 24hp Briggs & Stratton

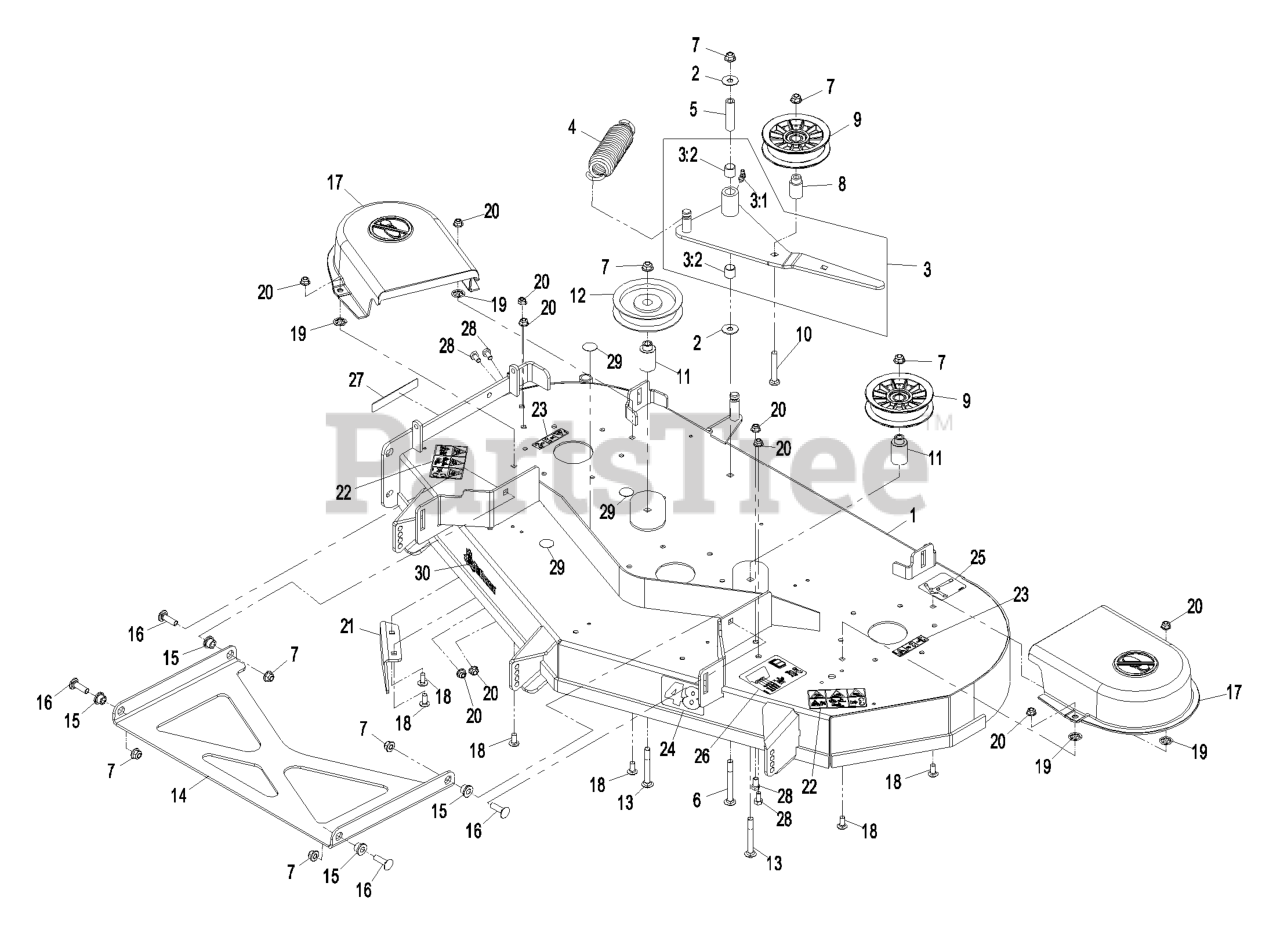

48" Deck Group Parts Diagram

  • Title

1

Exmark 109-6253

48 INCH DECK ASM

$2444.99

$

Usually ships in 3-6 days

0

2

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

3

Exmark 109-9158

IDLER ARM ASM

$185.99

$

Usually ships in 3-6 days

0

3:1

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

4

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

5

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

6

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

9

Exmark 109-8891

SHEAVE AND BEARING ASM

$34.99

$

In Stock, only 2 left!

0

10

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

11

Exmark 109-6572

BUSHING-IDLER

$14.99

$

In Stock, Qty 11

0

12

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

13

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

14

Exmark 109-3723-01

STRUT-DECK

$202.99

$

Usually ships in 3-6 days

0

15

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, only 3 left!

0

16

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

17

Exmark 109-3449

SHIELD-BELT

$33.99

$

In Stock, Qty 8

0

18

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

21

Exmark 109-5498-03

BAFFLE-DISCHARGE

$44.99

$

In Stock, only 1 left!

0

22

Exmark 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

23

Exmark 109-6459

DECAL-WARNING, BELT SHIEL

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 109-6034

DECAL,DECK 48

$14.99

$

In Stock, only 1 left!

0

25

Exmark 109-6035

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 3 left!

0

26

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$6.99

$

In Stock, Qty 7

0

27

Exmark 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

28

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

29

Exmark 109-9159

DECAL-HOLE COVER

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303520

DISCONTINUED

$

$

Not available

Exmark 109-8745

Asm, 48 Deck Complete

Note: Includes all item shown on pages 3, 4 & 7. Does not include struts or strut hardware.

$

$

Currently unavailable
