QST23KC482 - Exmark 48" Quest Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Engine Group - Kohler Command Parts Diagram

48" Quest Zero-Turn Mower, 23hp Kohler

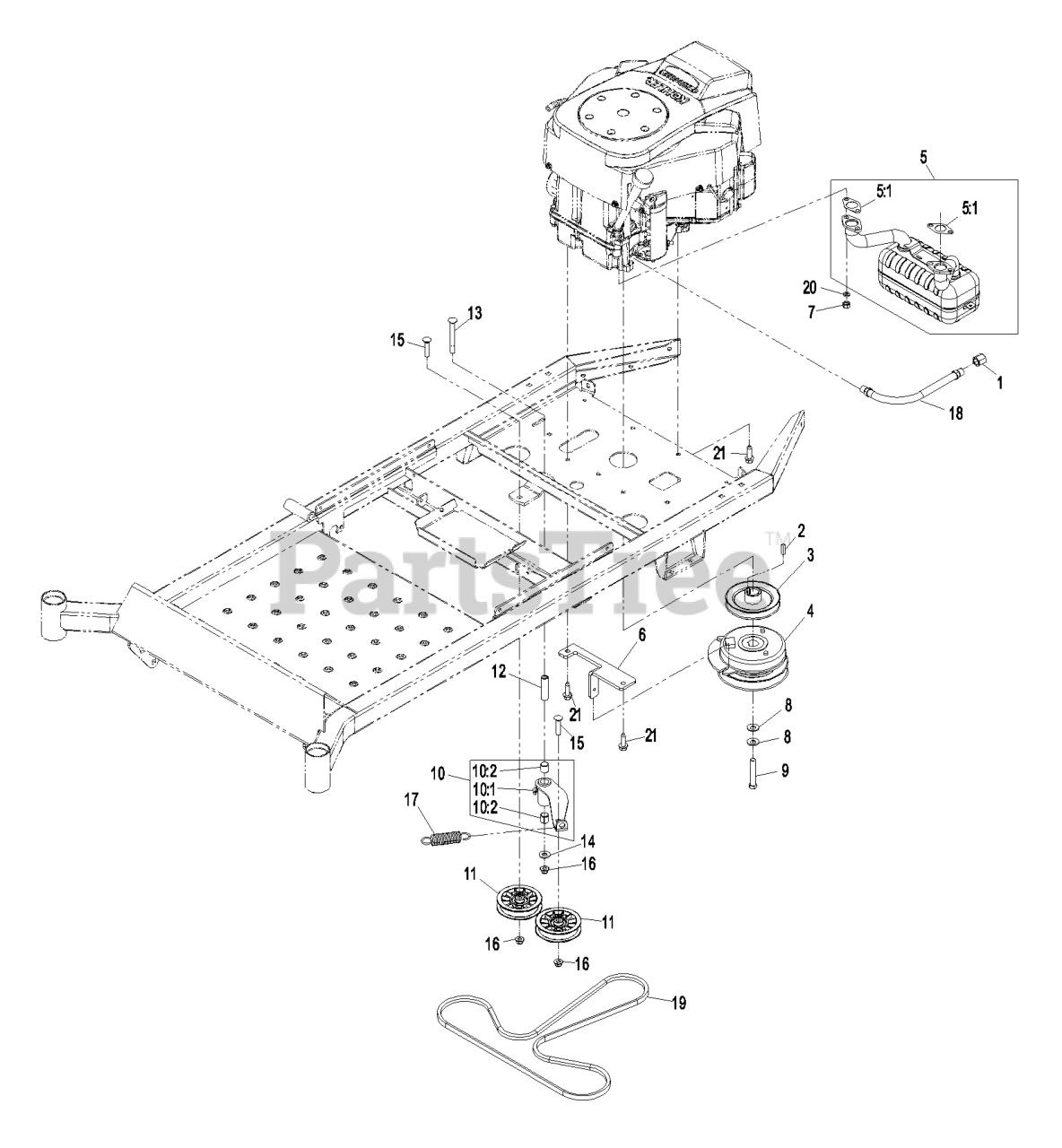

Engine Group - Kohler Command Parts Diagram

  • Title

1

Exmark 288-10

CAP-PIPE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 5-7280

KEY

$5.99

$

In Stock, only 1 left!

0

3

Exmark 109-3386

SHEAVE-SPLIT STEEL

$56.99

$

Usually ships in 3-6 days

0

4

Exmark 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

5

Exmark 109-8951

MUFFLER ASM

$217.99

$

In Stock, only 1 left!

0

5:1

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

6

Exmark 109-8855-03

ANCHOR-CLUTCH

$43.99

$

Usually ships in 3-6 days

0

7

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

9

Exmark 3212-11

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.

$8.49

$

In Stock, only 2 left!

0

10

Exmark 109-9162

IDLER ARM ASM

$141.99

$

Usually ships in 3-6 days

0

10:1

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

10:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

11

Exmark 109-3397

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 6

0

12

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

13

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

18

Exmark 82-4201

HYD HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

19

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

20

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Exmark 32144-109

SCREW-THD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.

$4.99

$

In Stock, Qty 7

0
