QST23KC482 - Exmark 48" Quest Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Cutter Housing Assembly Parts Diagram

48" Quest Zero-Turn Mower, 23hp Kohler

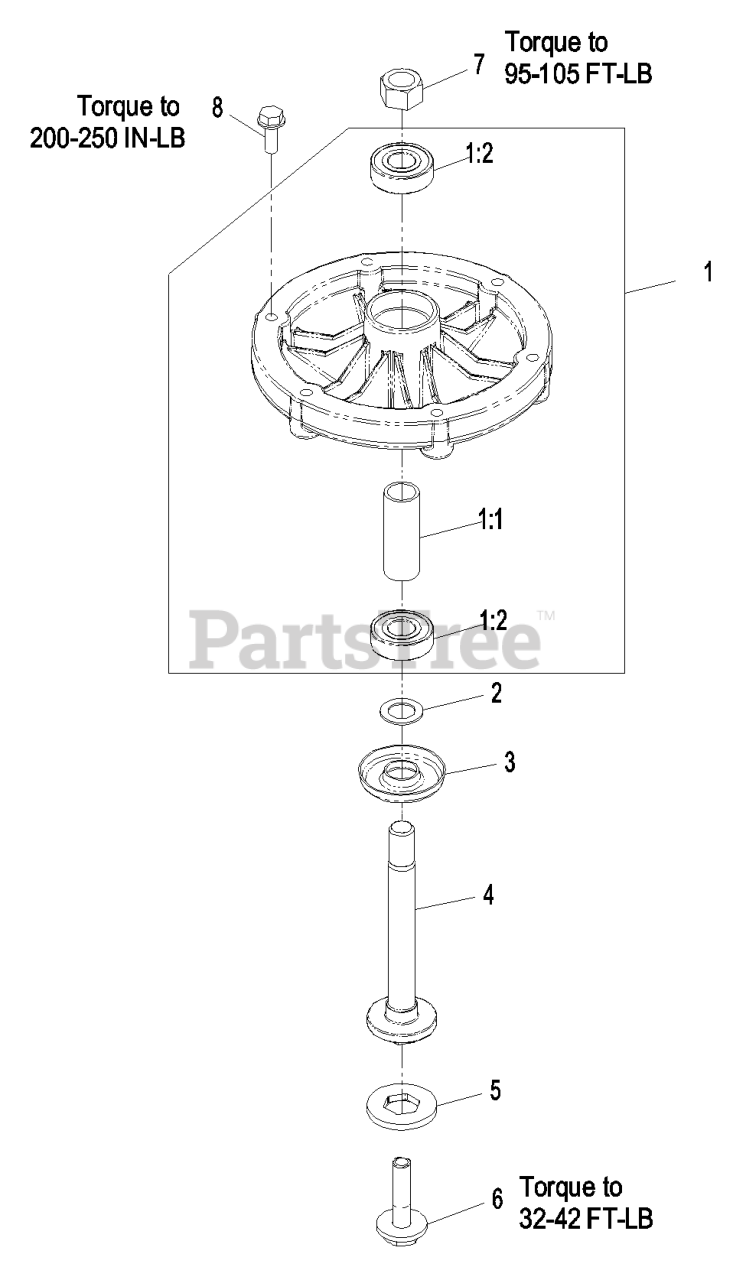

Cutter Housing Assembly Parts Diagram

  • Title

1

Exmark 109-9380

116-4386
(Superseded to 116-4386)

$127.99

$

In Stock, only 2 left!

0

1:1

Exmark 62-3661

SPACER

$16.99

$

In Stock, Qty 15

0

1:2

Exmark 109-9379

BEARING-BALL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT use a copper or nickel based anti-seize.

$12.99

$

In Stock, Qty 12

0

2

Exmark 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

3

Exmark 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 19

0

4

Exmark 109-7431

SPINDLE-HEX PILOT

$37.99

$

In Stock, Qty 13

0

5

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0
