QST23KC482 - Exmark 48" Quest Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) 52" Deck Group Parts Diagram

48" Quest Zero-Turn Mower, 23hp Kohler

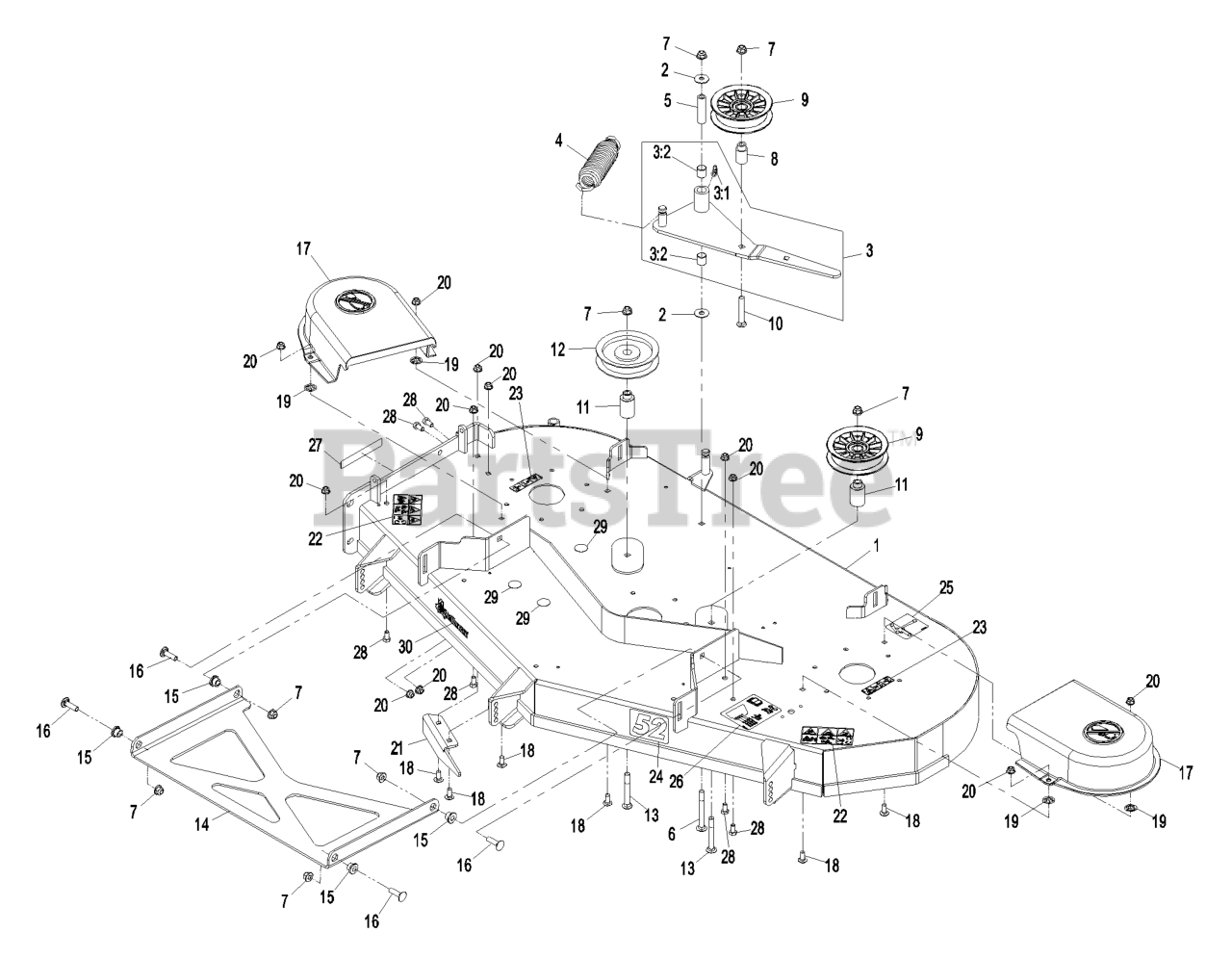

52" Deck Group Parts Diagram

  • Title
1

Exmark 109-6254

52 INCH DECK ASM

$

$

Not available

2

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-9158

IDLER ARM ASM

$185.99

$

Usually ships in 3-6 days

0

3:1

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

4

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

5

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

6

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, Qty 12

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, Qty 20+

0

9

Exmark 109-8891

SHEAVE AND BEARING ASM

$34.99

$

In Stock, only 2 left!

0

10

Exmark 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

11

Exmark 109-6572

BUSHING-IDLER

$15.99

$

In Stock, Qty 11

0

12

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 20+

0

13

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

14

Exmark 109-3723-01

STRUT-DECK

$211.99

$

Usually ships in 3-6 days

0

15

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 20+

0

16

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

17

Exmark 109-3449

SHIELD-BELT

$36.99

$

In Stock, Qty 10

0

18

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-5498-03

BAFFLE-DISCHARGE

$49.99

$

In Stock, only 1 left!

0

22

Exmark 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

23

Exmark 109-6459

DECAL-WARNING, BELT SHIEL

$

$

Not available

24

Exmark 109-6033

DECAL,DECK 52

$

$

Not available

25

Exmark 109-6035

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 3 left!

0

26

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$6.99

$

In Stock, Qty 7

0

27

Exmark 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

28

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

29

Exmark 109-9159

DECAL-HOLE COVER

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303520

DISCONTINUED

$

$

Not available

Exmark 109-8746

Asm, 52 Deck Complete

Note: Includes all item shown in 52" Deck Group and Cutter Housing Assembly. Does not include struts or strut hardware.

$

$

Not available
