QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 850000 - 919999) (2010) Engine Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

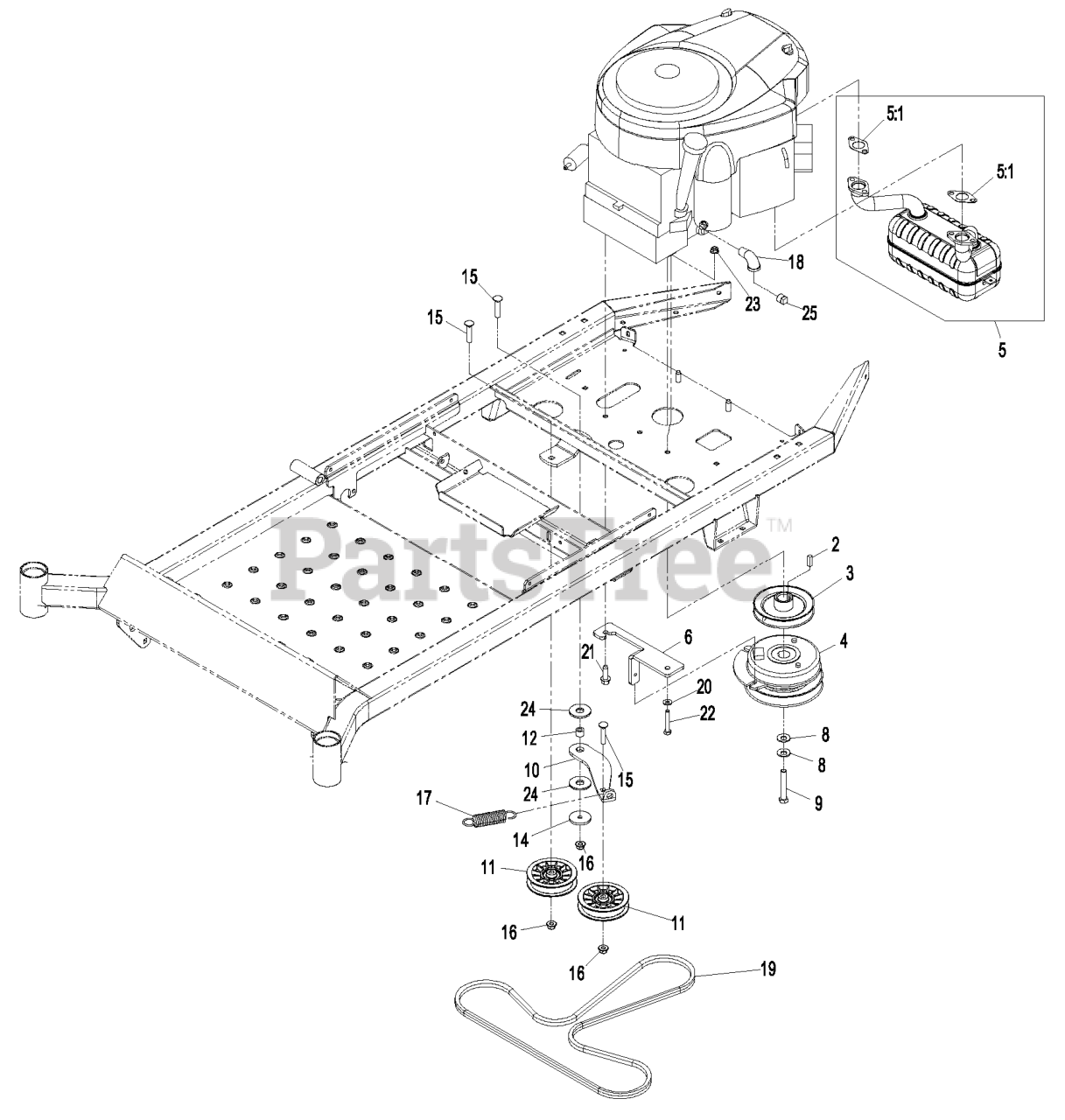

Engine Group Parts Diagram

  • Title

2

Exmark 5-7280

KEY

$5.99

$

In Stock, only 1 left!

0

3

Exmark 109-3386

SHEAVE-SPLIT STEEL

$56.99

$

Usually ships in 3-6 days

0

4

Exmark 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

Exmark 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

5

Exmark 109-8851

MUFFLER ASM

$164.99

$

In Stock, only 3 left!

0

5:1

Exmark 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 10

0

6

Exmark 109-8855-03

ANCHOR-CLUTCH

$43.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

9

Exmark 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

10

Exmark 116-1865-03

ARM,DRIVE IDLER

$

$

Not available

11

Exmark 109-3397

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 6

0

12

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

14

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

15

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

18

Exmark 1-403124

ELBOW-90 DEG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

19

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$53.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

21

Exmark 32144-109

SCREW-THD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.

$4.99

$

In Stock, Qty 7

0

22

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

24

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 281-2

PLUG-PIPE, SQH

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$2.99

$

Usually ships in 3-6 days

0
