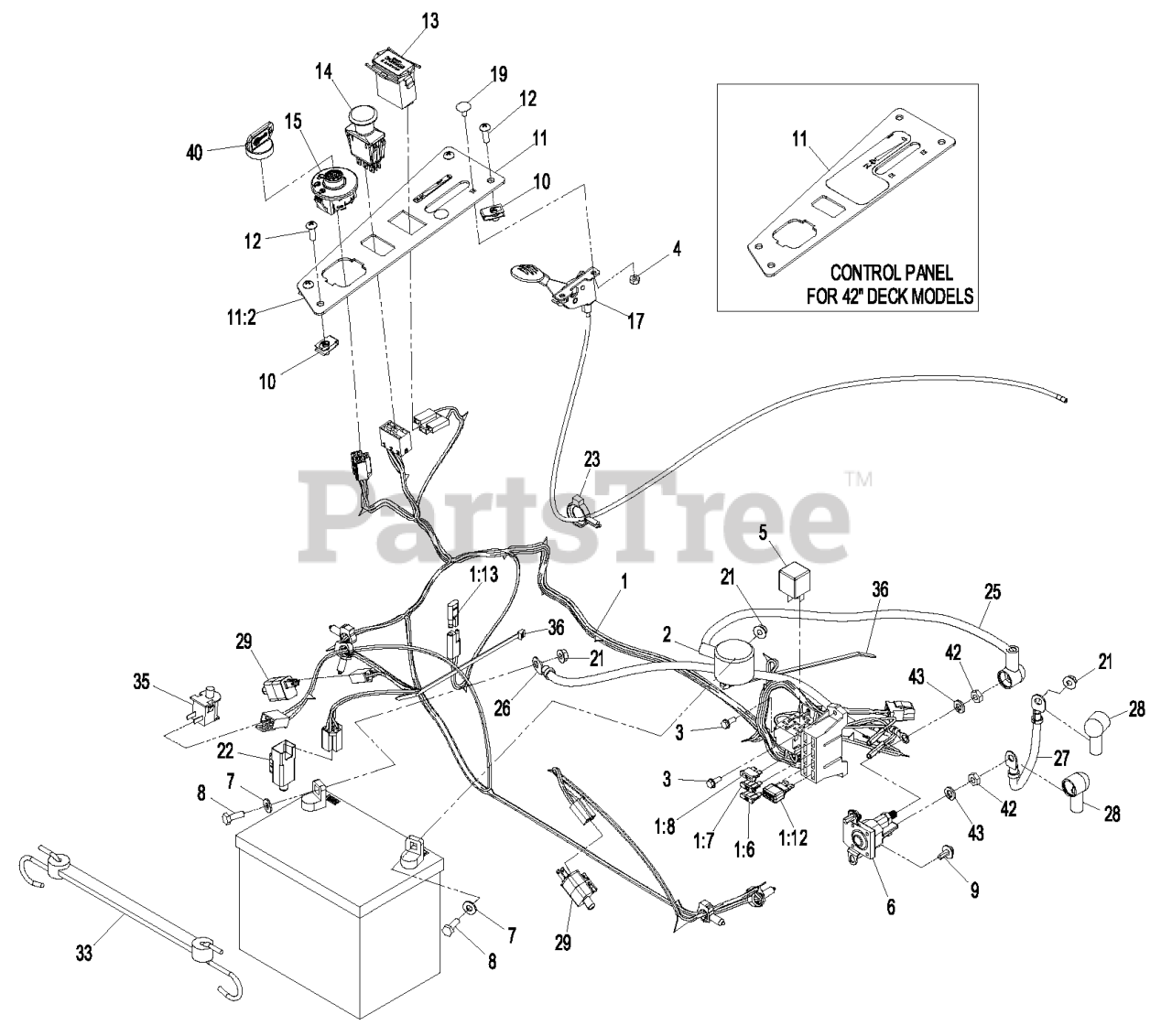

QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 850000 - 919999) (2010) Electrical Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title

1

Exmark 116-1897

HARNESS,WIRE QUEST

Note: Use dielectric grease on all wiring harness connectors

$

$

Not available

1:6

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

1:7

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

1:8

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

1:12

Exmark 109-9186

DIODE-TVS

$19.99

$

In Stock, only 2 left!

0

1:13

Exmark 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

3

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

6

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

7

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

11

Exmark 116-0734

ASM,CONTROL PANEL

$49.99

$

Usually ships in 3-6 days

0

Exmark 116-0527

DISCONTINUED

$

$

Not available

11:2

Exmark 116-0532

DECAL,THROTTLE CHOKE 42

$7.49

$

Usually ships in 3-6 days

0

Exmark 103-6327

DECAL,THROTTLE/CHOKE

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

14

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

15

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$28.99

$

In Stock, Qty 20+

0

17

Exmark 116-0528

CABLE,THROTTLE

$

$

Not available

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

21

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Exmark 99-7408

SWITCH-REVERSE

$28.99

$

In Stock, Qty 12

0

23

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Exmark 109-7653

POSITIVE BATTERY CABLE AS

$35.99

$

In Stock, only 1 left!

0

26

Exmark 103-0705

CABLE-GROUND, NEGATIVE

$19.99

$

In Stock, only 2 left!

0

27

Exmark 109-9415

Asm, Positive Starter Cable

$28.99

$

Usually ships in 3-6 days

0

28

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

29

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

33

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

35

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

36

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

40

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

41

Exmark 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

42

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

43

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+
