QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 850000 - 919999) (2010) 52" Deck Group (cont.) Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

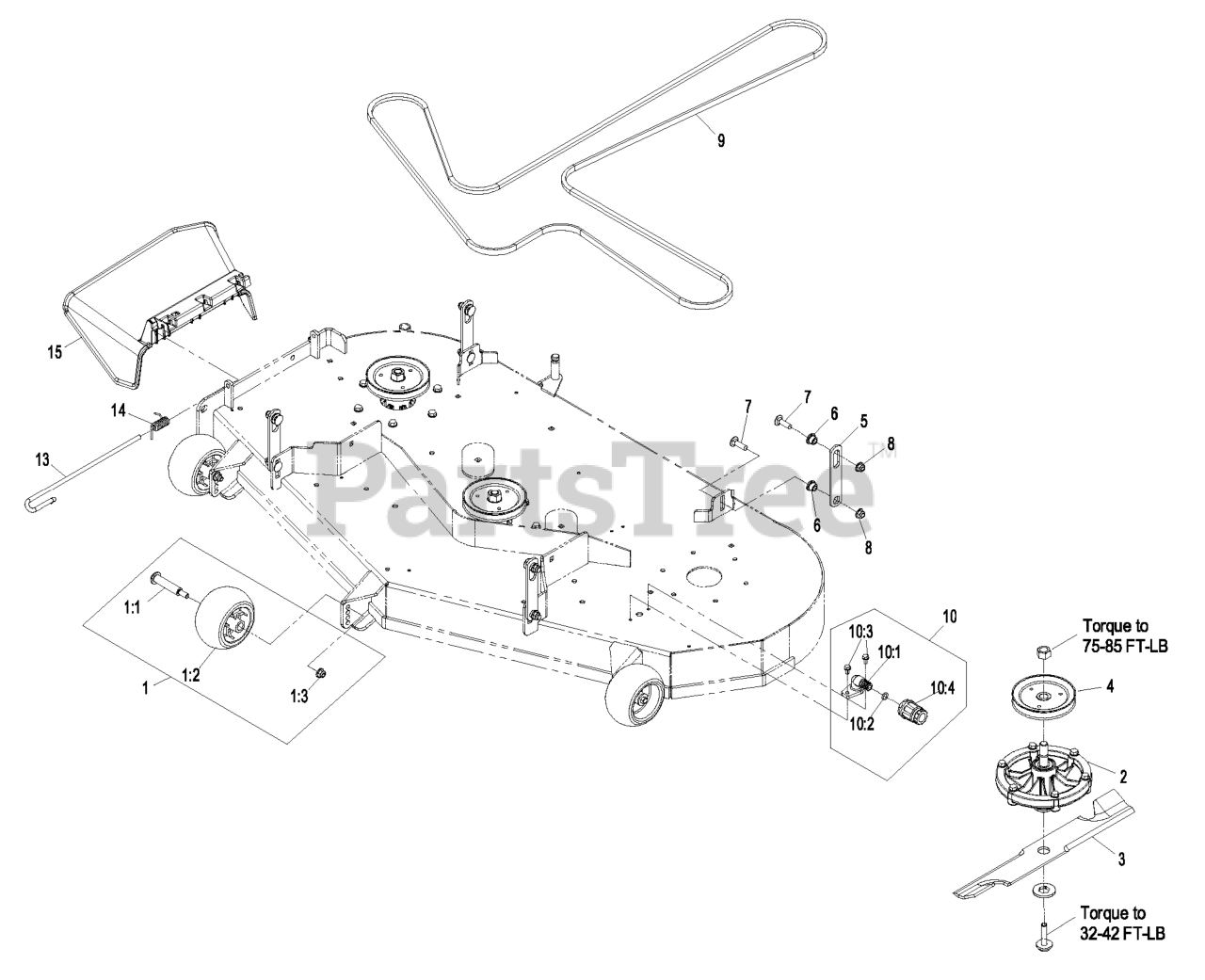

52" Deck Group (cont.) Parts Diagram

  • Title
1

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$43.99

$

In Stock, only 4 left!

0

1:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

1:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

1:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 109-8744

116-5712
(Superseded to 116-5712)

$183.99

$

In Stock, Qty 10

0

3

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 109-6390

109-6390-S
(Superseded to 109-6390-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 109-5982.

$30.99

$

In Stock, Qty 11

0

Exmark 109-6392

Blade, High Lift

$

$

Currently unavailable

4

Exmark 109-3671

116-4874
(Superseded to 116-4874)

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & sheaves. DO NOT use a copper or nickel based anti-seize.

$95.99

$

In Stock, only 1 left!

0

5

Exmark 109-3410

HANGER-DECK

$10.99

$

In Stock, only 3 left!

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 20+

0

7

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-3661

BELT
(Superseded to 109-3661-SL)

$91.99

$

Usually ships in 3-6 days

0

10

Exmark 109-6393

WASHOUT PORT KIT

$

$

Not available

10:1

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

10:2

$2.99

$

In Stock, Qty 14

0

10:3

Exmark 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 12

0

10:4

Exmark 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, Qty 8

0

13

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, Qty 10

0

14

Exmark 109-6886

SPRING-TORSION

$8.49

$

In Stock, Qty 14

0

15

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$59.99

$

In Stock, Qty 11

0
