QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 850000 - 919999) (2010) 48" Deck Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

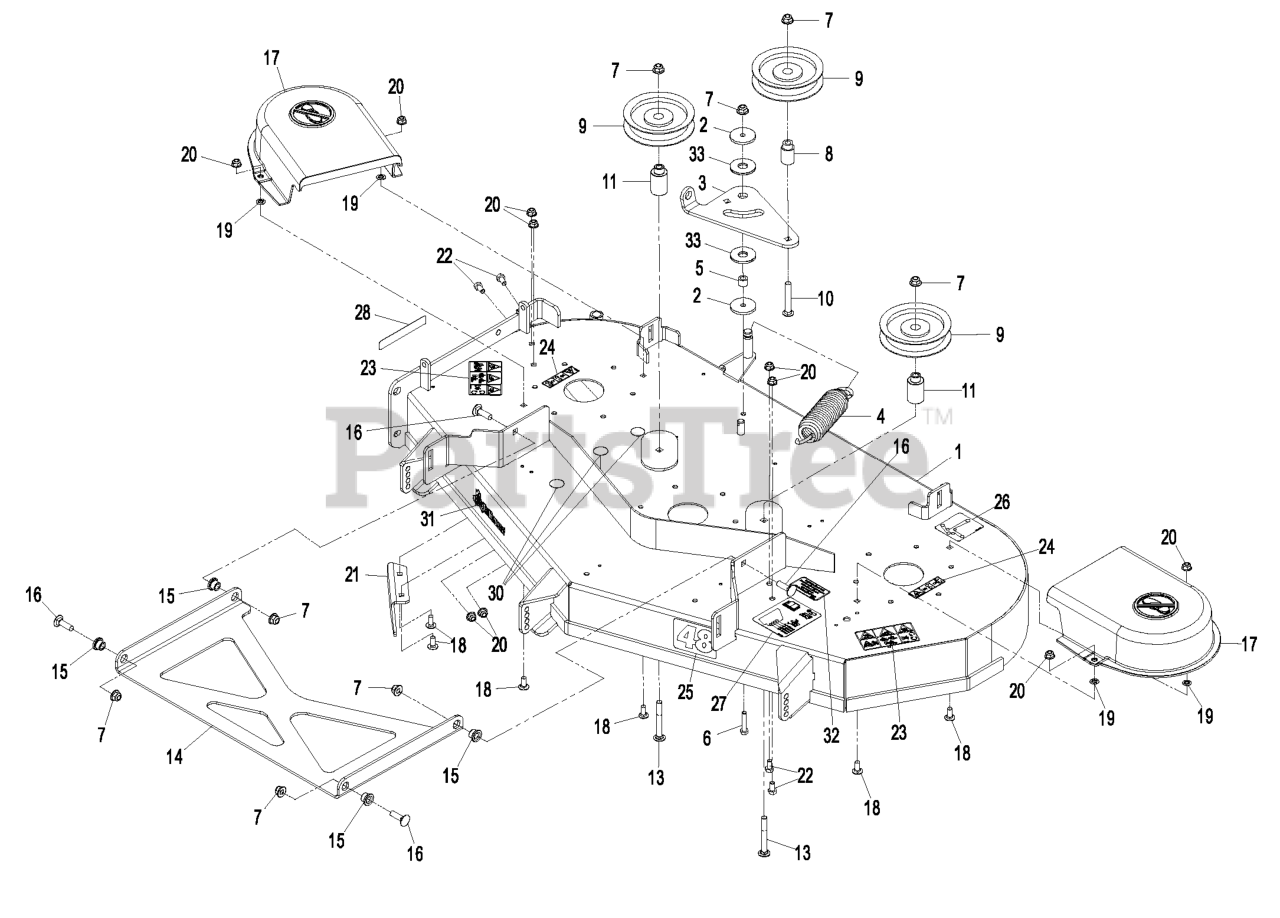

48" Deck Group Parts Diagram

  • Title

1

Exmark 116-1884

ASM,48" DECK W/ DECAL

$

$

Not available

Exmark 116-1885

Asm, 48" Deck W/ Decal (Black)

$

$

Currently unavailable

2

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 116-1881-03

ARM,IDLER

$34.99

$

Usually ships in 3-6 days

0

4

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 11

0

5

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

6

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 3 left!

0

9

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$34.99

$

In Stock, only 2 left!

0

10

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

11

Exmark 109-6572

BUSHING-IDLER

$14.99

$

In Stock, Qty 11

0

13

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

14

Exmark 109-3723-01

STRUT-DECK

$198.99

$

Usually ships in 3-6 days

0

14

Exmark 109-3723-03

DISCONTINUED

$

$

Not available

15

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, only 3 left!

0

16

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

17

Exmark 109-3449

SHIELD-BELT

$31.99

$

In Stock, Qty 8

0

18

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-5498-03

BAFFLE-DISCHARGE

$26.99

$

Usually ships in 3-6 days

0

22

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Exmark 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

24

Exmark 109-6459

DECAL-WARNING, BELT SHIEL

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 109-6034

DECAL,DECK 48

$13.99

$

In Stock, only 1 left!

0

26

Exmark 109-6035

DECAL-ROUTING, BELT

$6.49

$

In Stock, only 3 left!

0

27

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$6.49

$

In Stock, Qty 7

0

28

Exmark 93-7009

DECAL-DANGER

$6.49

$

In Stock, only 1 left!

0

30

Exmark 109-9159

DECAL-HOLE COVER

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 1-303520

DISCONTINUED

$

$

Not available

32

Exmark 116-0533

DECAL,BLADE TORQUE

$

$

Not available

33

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 9

0

Exmark 109-8745

Asm, 48 Deck Complete (Red)

Note: Includes all item shown on pages 5, 6 & 9. Does not include struts or strut hardware.

$

$

Currently unavailable

Exmark 116-0545

Asm, 48" Deck Complete (Black)

Note: Includes all item shown on pages 5, 6 & 9. Does not include struts or strut hardware.

$

$

Currently unavailable
