QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 850000 - 919999) (2010) 42" Deck Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

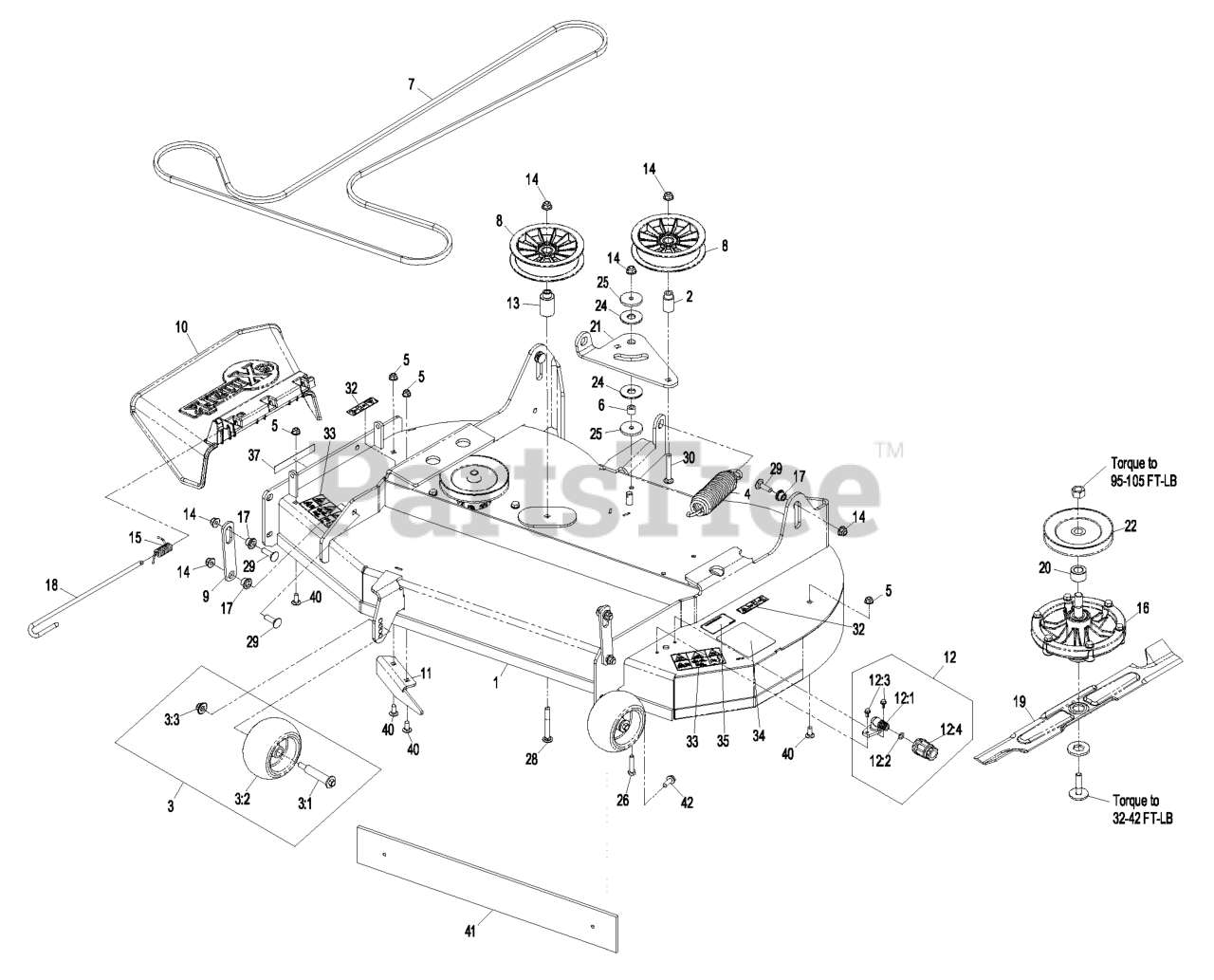

42" Deck Group Parts Diagram

  • Title

1

Exmark 109-9971

ASM,DECK W/ DECALS

$2638.99

$

Usually ships in 3-6 days

0

2

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

3

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$43.99

$

In Stock, only 4 left!

0

3:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

3:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

3:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

7

Exmark 108-6645

BELT-V
(Superseded to 108-6645-SL)

$111.99

$

In Stock, Qty 7

0

8

Exmark 109-0977

PULLEY,IDLER 5"

$72.99

$

In Stock, Qty 8

0

9

Exmark 109-3410

HANGER-DECK

$10.99

$

In Stock, only 3 left!

0

10

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

0

11

Exmark 109-5498-03

BAFFLE-DISCHARGE

$44.99

$

In Stock, only 1 left!

0

12

Exmark 109-6393

WASHOUT PORT KIT

$

$

Not available

12:1

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

12:2

Exmark 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

12:3

Exmark 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 12

0

12:4

Exmark 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

13

Exmark 109-6572

BUSHING-IDLER

$14.99

$

In Stock, Qty 11

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-6886

SPRING-TORSION

$8.49

$

In Stock, Qty 14

0

16

Exmark 109-8744

116-5712
(Superseded to 116-5712)

$183.99

$

In Stock, Qty 10

0

17

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, only 3 left!

0

18

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

19

Exmark 109-9982

109-9982-S
(Superseded to 109-9982-S)

$31.99

$

In Stock, Qty 9

0

20

Exmark 109-9993

SPACER, DECK SHEAVE

$

$

Not available

21

Exmark 116-1883-03

Arm, Idler

$

$

Currently unavailable

22

Exmark 110-6864

125-5574
(Superseded to 139-2433)

$37.99

$

In Stock, Qty 15

0

24

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 11

0

25

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

26

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

28

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

29

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

30

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

32

Exmark 109-6459

DECAL-WARNING, BELT SHIEL

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

34

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$6.99

$

In Stock, Qty 8

0

35

Exmark 116-0533

DECAL,BLADE TORQUE

$

$

Not available

37

Exmark 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

40

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Exmark 116-1557-03

WEIGHT

$

$

Not available

42

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

Exmark 109-9970

Asm, 42 Deck Complete

Note: Includes all item shown on pages 3, 4 & 9. Does not include struts or strut hardware.

$

$

Currently unavailable
