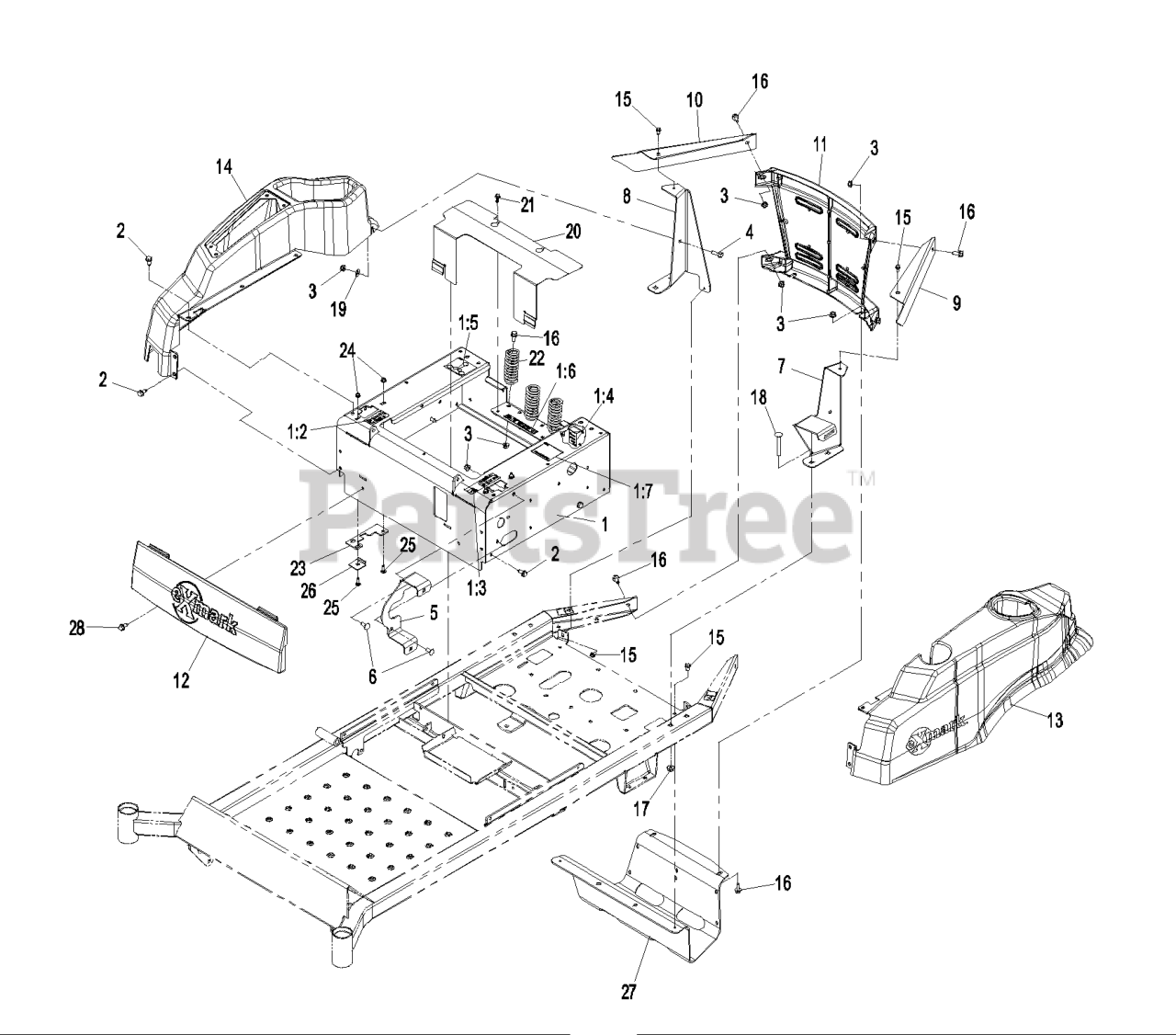

QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 790000 - 849999) (2009) Frame Group (Cont.) Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

Frame Group (Cont.) Parts Diagram

  • Title

1

Exmark 116-0945

ASM,SEAT BOX SERVICE

Note: Includes items 23-26; does not include item 1:7.

$

$

Not available

1:2

Exmark 109-9182

DECAL-MOTION CONTROL

$5.49

$

Usually ships in 3-6 days

0

1:3

Exmark 109-9173

DECAL-CONTROL BRAKE

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 109-9120

DECAL-FUSE BLOCK

$5.49

$

In Stock, only 1 left!

0

1:5

Exmark 109-6014

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 4 left!

0

1:6

Exmark 109-6210

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

1:7

Exmark 116-0531

DECAL,ENGINE RPM

$

$

Not available

2

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 109-6045-03

BRACKET-TANK MOUNT

$

$

Not available

6

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-6867-01

BRACKET,REAR TANK LH

Note: (LH) (Red)

$

$

Not available

Exmark 109-6867-03

BRACKET-REAR TANK, LH

Note: (LH) (Black)

$

$

Not available

8

Exmark 109-3406-01

DISCONTINUED

Note: (Red)

$

$

Not available

Exmark 109-3406-03

BRACKET-REAR CONSOLE, RH

Note: (Black)

$

$

Not available

9

Exmark 109-3381-01

GUARD,ENGINE LH

Note: (LH) (Red)

$

$

Not available

Exmark 109-3381-03

GUARD-ENGINE, LH

Note: (LH) (Black)

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 109-3391-01

GUARD,ENGINE RH

Note: (RH) (Red)

$

$

Not available

Exmark 109-3391-03

GUARD-ENGINE, RH

Note: (RH) (Black)

$41.99

$

Usually ships in 3-6 days

0

11

Exmark 109-5363-01

CASTING,REAR EXMARK

Note: (Red)

$

$

Not available

Exmark 109-5363-03

CASTING,REAR EXMARK

Note: (Black)

$

$

Not available

12

Exmark 109-3709

PANEL,FRONT EXMARK

$49.99

$

In Stock, only 1 left!

0

Exmark 116-0550

DISCONTINUED

$

$

Not available

13

Exmark 116-0828

FENDER,EXMARK LH

Note: (LH)

$

$

Not available

Exmark 116-0548

FENDER,REALTREE LH

Note: (LH)

$

$

Not available

14

Exmark 116-0829

FENDER,EXMARK RH

Note: (RH)

$

$

Not available

Exmark 116-0549

FENDER,REALTREE RH

Note: (RH)

$

$

Not available

15

Exmark 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

19

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 109-6190-03

COVER-HYDRO FAN

$

$

Not available

21

Exmark 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

22

Exmark 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

23

Exmark 116-0834

PLATE,NEUTRAL

$

$

Not available

24

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

26

Exmark 116-0835

PLATE,TRACKING

$

$

Not available

27

Exmark 114-1658-03

GUARD-MUFFLER

$176.99

$

In Stock, only 1 left!

0

28

Exmark 9266934

SCREW

Note: (48" & 52")

$8.99

$

In Stock, only 3 left!

0
