QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 790000 - 849999) (2009) Frame Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

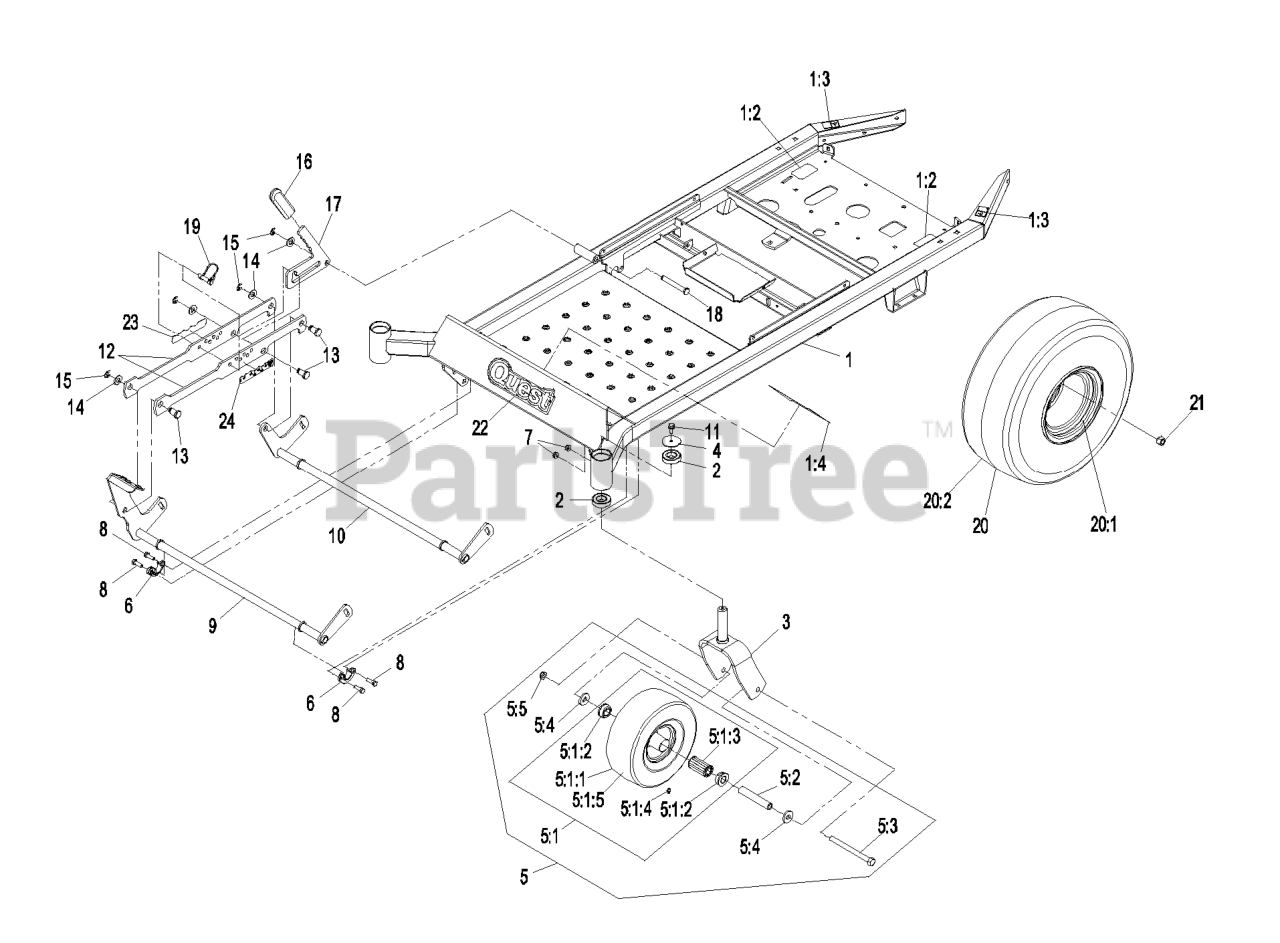

Frame Group Parts Diagram

  • Title

1

Exmark 116-0727

DISCONTINUED

Note: (42")

$

$

Not available

Exmark 109-8825

FRAME ASM

Note: (Red)

$

$

Not available

Exmark 116-0546

ASM,FRAME W/ DECALS - BLA

Note: (Black)

$1288.99

$

Usually ships in 3-6 days

0

1:2

Exmark 109-6008

DECAL-DRIVE RELEASE

$

$

Not available

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:4

Exmark 109-8965

DECAL-SAFETY

$

$

Not available

2

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

3

Exmark 116-0100-01

WLD,CASTER FORK

Note: (Red)

$136.99

$

Usually ships in 3-6 days

0

Exmark 116-0100-03

WLD,CASTER FORK

Note: (Black)

$136.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3724

WASHER

$3.49

$

In Stock, only 2 left!

0

5

Exmark 116-0933

ASM,SAWTOOTH WHEEL

$118.99

$

Usually ships in 3-6 days

0

Exmark 116-0518

ASM,CASTER WHEEL

$142.99

$

Usually ships in 3-6 days

0

5:1

Exmark 105-3471

FRONT WHEEL AND TIRE ASM

$79.99

$

In Stock, only 2 left!

0

Exmark 105-1863

WHEEL-CASTER

$88.99

$

In Stock, only 4 left!

0

5:1:1

Exmark 105-1943

TIRE

Note: (42")

$82.99

$

In Stock, only 1 left!

0

Exmark 105-1864

TIRE

Note: (48" & 52")

$78.99

$

In Stock, only 2 left!

0

5:1:2

Exmark 114-1640

BUSHING-FLANGE

Note: (42")

$12.99

$

In Stock, Qty 20+

0

Exmark 62-5580

BEARING-OUTSIDE

Note: (48" & 52")

$7.49

$

In Stock, only 2 left!

0

5:1:3

Exmark 83-4740

BEARING

Note: (48" & 52" Only)

$14.99

$

In Stock, Qty 5

0

5:1:4

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:1:5

Exmark 93-4244

TUBE-INNER (W/VALVE)

$16.99

$

In Stock, only 2 left!

0

5:2

Exmark 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 10

0

5:3

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

5:4

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5:5

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Exmark 109-3667

BEARING-FLANGE

$7.99

$

In Stock, Qty 6

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 116-0183-01

WLD,FRONT SHAFT

Note: (Red)

$

$

Not available

Exmark 116-0183-03

WLD,FRONT SHAFT

Note: (Black)

$

$

Not available

10

Exmark 116-0182-01

WLD,REAR SHAFT

Note: (Red)

$

$

Not available

Exmark 116-0182-03

WLD,REAR SHAFT

Note: (Black)

$

$

Not available

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

12

Exmark 116-0145-01

LINK

Note: (Red)

$

$

Not available

Exmark 116-0145-03

LINK

Note: (Black)

$

$

Not available

13

Exmark 116-0143

PIN

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

16

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

17

Exmark 116-0144

LEVER

$

$

Not available

18

Exmark 109-6172

PIN-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

19

Exmark 116-0146

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 109-5486

WHEEL AND TIRE ASM

Note: (42" & 48")

$261.99

$

In Stock, only 2 left!

0

Exmark 109-5268

4 PLY WHEEL AND TIRE ASM

Note: (52")

$299.99

$

Usually ships in 3-6 days

0

20:1

Exmark 109-5487

WHEEL

Note: (42" & 48")

$196.99

$

Usually ships in 3-6 days

0

Exmark 109-5270

WHEEL

Note: (52")

$123.99

$

Usually ships in 3-6 days

0

20:2

Exmark 109-5488

TIRE

Note: (42" & 48")

$185.99

$

Usually ships in 3-6 days

0

Exmark 109-5269

TIRE-4 PLY

Note: (52")

$208.99

$

Usually ships in 3-6 days

0

21

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

22

Exmark 109-6280

DECAL,QUEST LOGO

$15.99

$

Usually ships in 3-6 days

0

Exmark 116-0607

DECAL,QUEST REALTREE

$

$

Not available

23

Exmark 116-0581

DECAL,HEIGHT OF CUT

$

$

Not available

24

Exmark 116-0551

DECAL,HEIGHT OF CUT

$5.99

$

In Stock, only 1 left!

0
