QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 720000 - 789999) (2008) Motion Control Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

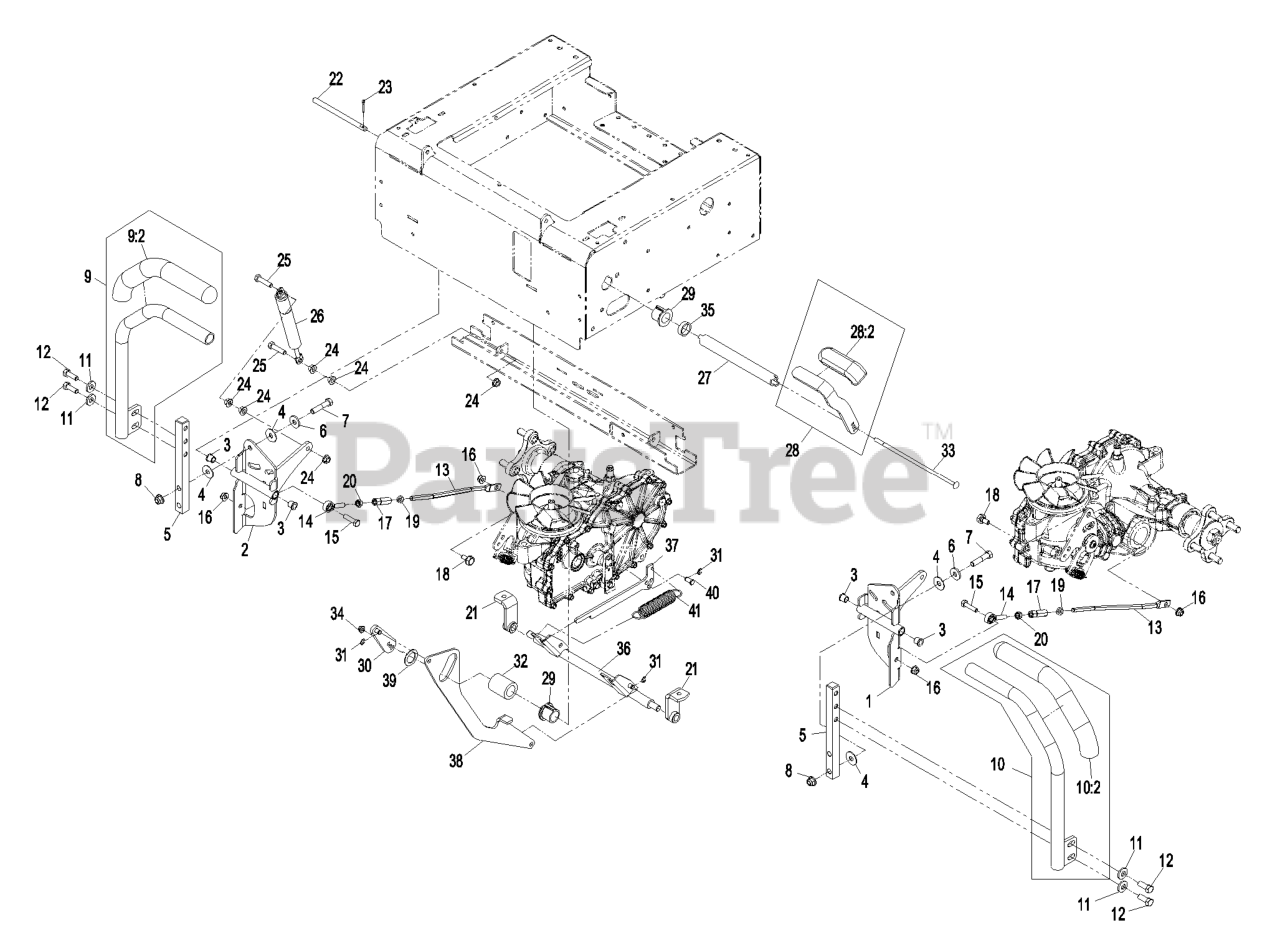

Motion Control Group Parts Diagram

  • Title

1

Exmark 109-6915

LH MOTION CONTROL PIVOT A

$155.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6914

RH MOTION CONTROL PIVOT A

$147.99

$

Usually ships in 3-6 days

0

3

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

4

Exmark 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, Qty 6

0

5

Exmark 109-3689

POST-LEVER MOUNT

$61.99

$

Usually ships in 3-6 days

0

6

Exmark 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

7

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-7098

RH LEVER AND GRIP ASM

$

$

Not available

9:2

Exmark 109-5192

GRIP-CONTROL LEVER

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 109-7099

LH LEVER AND GRIP ASM

$129.99

$

Usually ships in 3-6 days

0

10:2

Exmark 109-5192

GRIP-CONTROL LEVER

$21.99

$

Usually ships in 3-6 days

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Exmark 109-3414

ROD-STEERING

$15.99

$

Usually ships in 3-6 days

0

14

Exmark 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

15

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

18

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 13

0

19

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

21

Exmark 109-6220

BRAKE PIVOT ASM

$

$

Not available

22

Exmark 109-3705

PIN-CONTROL PIVOT

$17.99

$

In Stock, only 2 left!

0

23

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 109-5957

DAMPER-MOTION CONTROL

$84.99

$

In Stock, Qty 5

0

27

Exmark 109-5825

TUBE-BRAKE PIVOT

$

$

Not available

28

Exmark 109-5918

LEVER ASM

$

$

Not available

28:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

29

Exmark 107-7581

BUSHING-FLANGE, KEYED

$6.99

$

Usually ships in 3-6 days

0

30

Exmark 109-5824

BELLCRANK ASM

$47.99

$

Usually ships in 3-6 days

0

31

Exmark 701197

E-RING

$3.49

$

Usually ships in 3-6 days

0

32

Exmark 109-5834

SPACER

$

$

Not available

33

Exmark 109-5868

BOLT-CARR

$

$

Not available

34

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Exmark 109-5914

SPACER

$

$

Not available

36

Exmark 109-8765

BRAKE SHAFT ASM

$

$

Not available

37

Exmark 109-6907

LINK-BRAKE ACTUATION

$20.99

$

Usually ships in 3-6 days

0

38

Exmark 109-5833

ARM-BRAKE

$62.99

$

Usually ships in 3-6 days

0

39

Exmark 99-4958

SPACER

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 109-6887

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

41

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0
