QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Transaxle Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

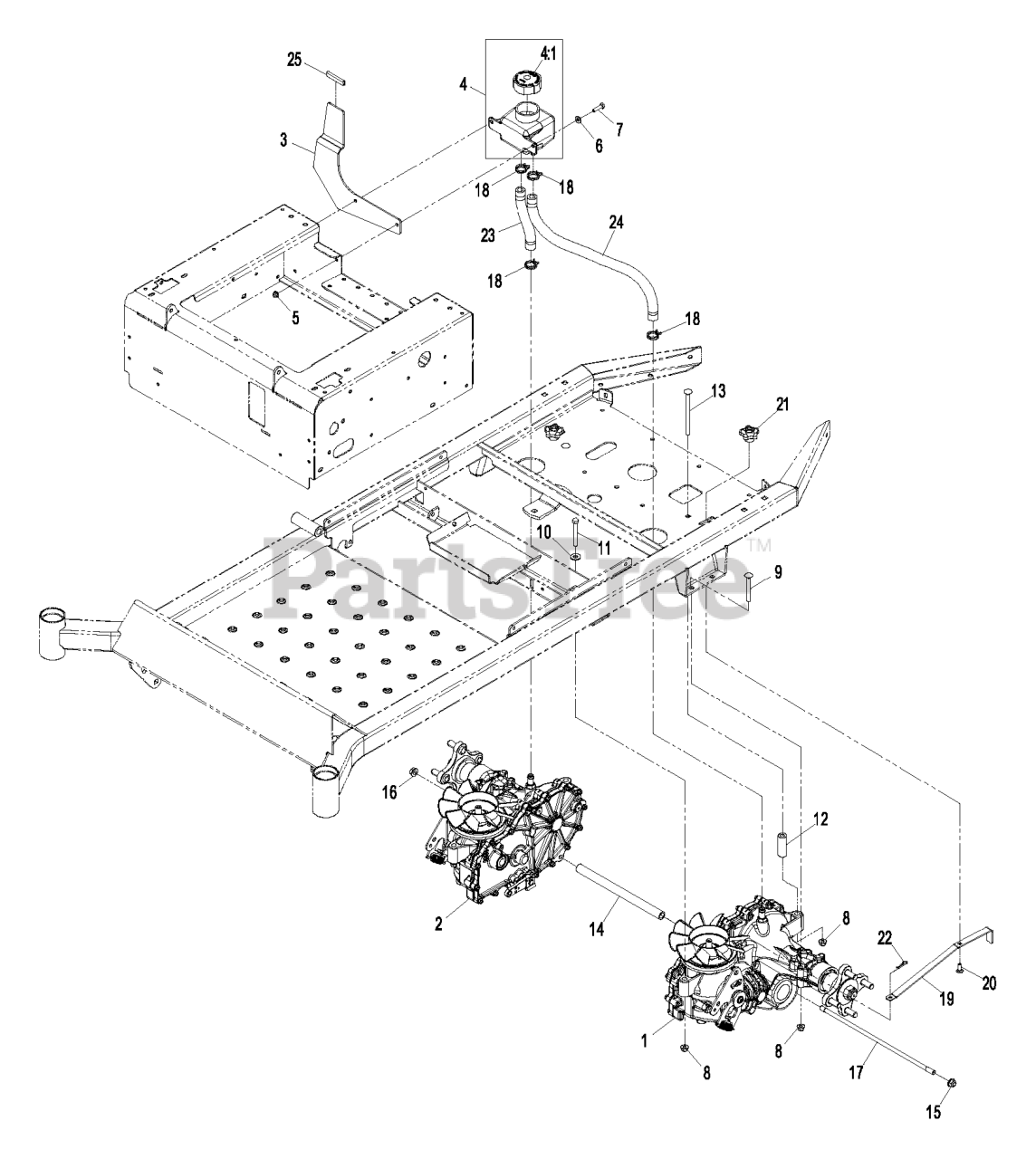

Transaxle Group Parts Diagram

  • Title

1

Exmark 109-3372

TRANSMISSION-LH

$1835.99

$

Usually ships in 3-6 days

0

2

Exmark 109-3371

TRANSMISSION-RH

$1835.99

$

Usually ships in 3-6 days

0

3

Exmark 109-6570-03

BRACKET-FENDER SUPPORT

$

$

Not available

4

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

4:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

10

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Exmark 109-3652

SPACER-HYDRO

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 3230-30

Bolt-Carriage 5/16-18 X 1 1/4

$11.99

$

In Stock, only 2 left!

0

14

Exmark 109-3710

TUBE-SPACER

$

$

Not available

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Exmark 109-3711

ROD-TENSION

$

$

Not available

18

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

19

Exmark 109-5395

ARM-BYPASS, HYDRO

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 108-6402

KNOB-HANDLE

$1.49

$

In Stock, only 3 left!

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-5577

HOSE-HYDRAULIC

$6.49

$

In Stock, Qty 5

0

24

Exmark 109-5578

HOSE-HYDRAULIC

$18.99

$

In Stock, only 1 left!

0

25

Exmark 109-2985

TRIM

$

$

Not available
