QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Transaxle Assembly Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

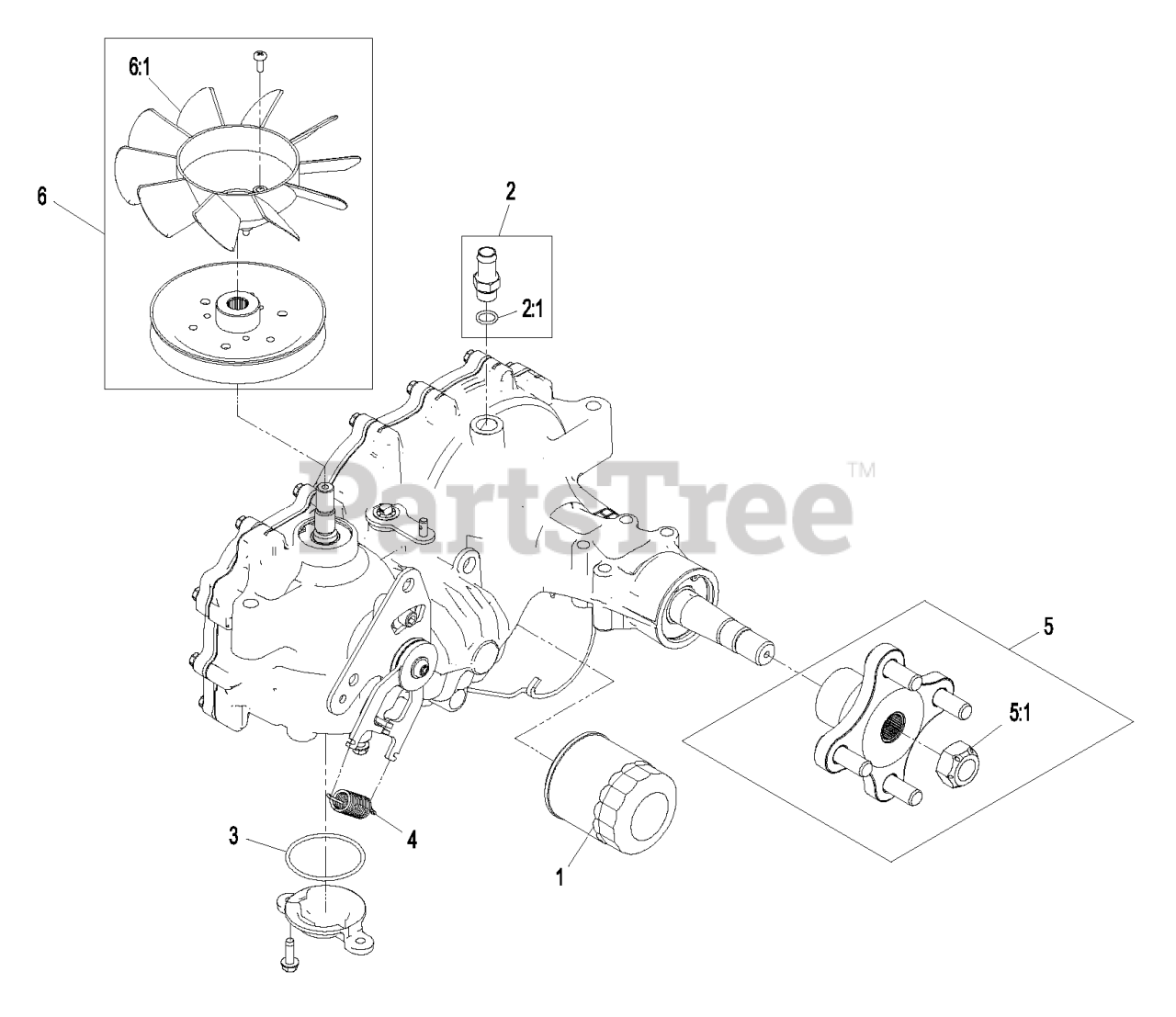

Transaxle Assembly Parts Diagram

  • Title
1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, Qty 6

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

2:1

Exmark 1-603921

BOSS O-RING
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

3

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

4

Exmark 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 2 left!

0

5

Exmark 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

5:1

Exmark 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

6

Exmark 109-5938

125-0059
(Superseded to 135-7347)

$95.99

$

In Stock, only 1 left!

0

6:1

Exmark 109-5940

125-0059
(Superseded to 135-7347)

$95.99

$

In Stock, only 1 left!

0

7

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not shown

$90.99

$

In Stock, only 1 left!

0
