QSS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Brake Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler

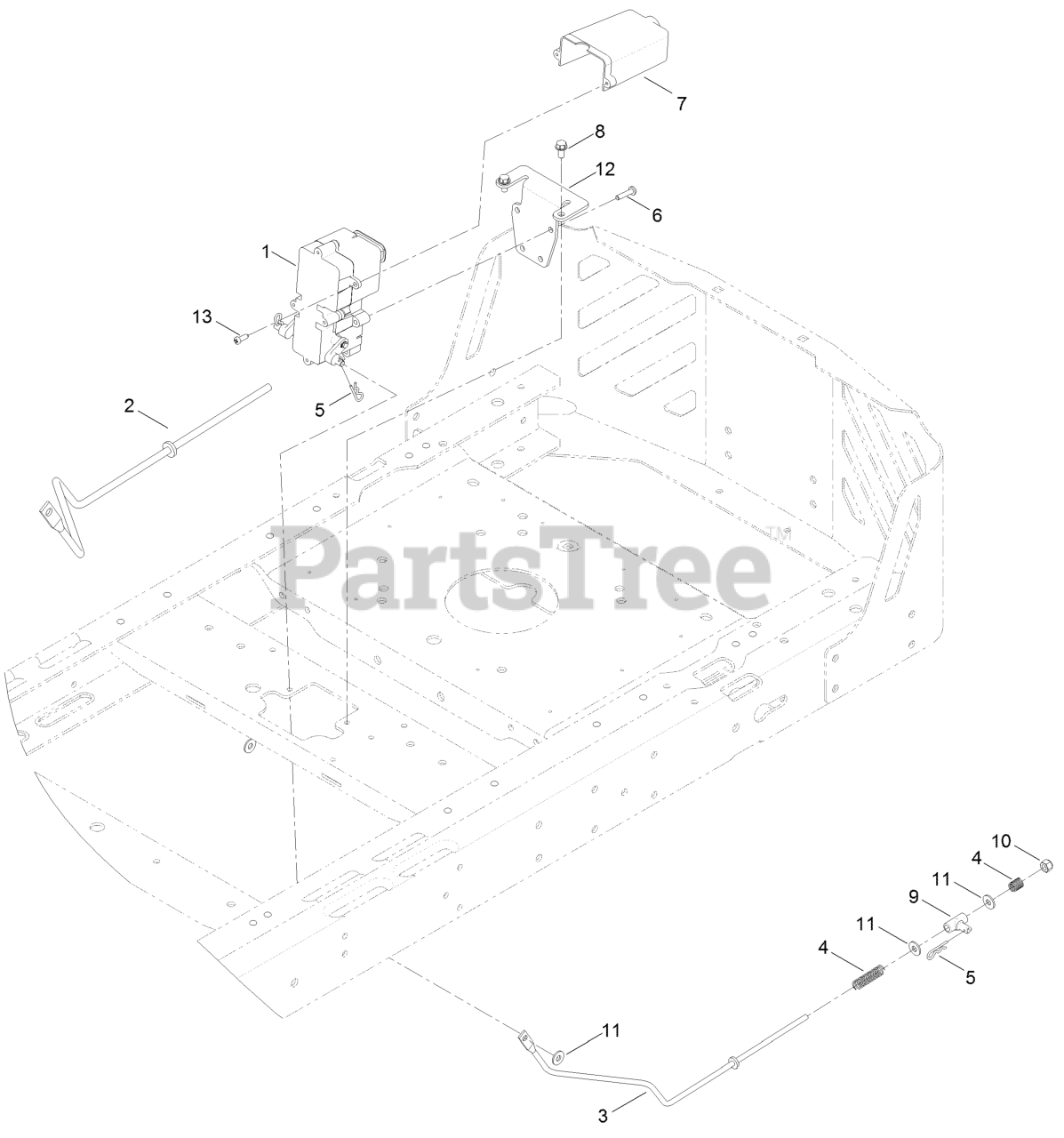

Brake Assembly Parts Diagram

  • Title

1

Exmark 130-0795

136-4214
(Superseded to 136-4214)

$190.99

$

In Stock, only 4 left!

0

2

Exmark 119-8811

ROD-BRAKE, RH

$35.99

$

In Stock, only 1 left!

0

3

Exmark 119-8812

ROD-BRAKE, LH

$23.99

$

In Stock, only 1 left!

0

4

Exmark 121-5654

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

5

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 130-6974

132-6949
(Superseded to 132-6949)

$13.99

$

In Stock, only 2 left!

0

8

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 119-8857

MOUNT-PIVOT

$17.99

$

In Stock, only 2 left!

0

10

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

12

Exmark 130-0790-03

BRACKET-MOUNT, BRAKE

$10.99

$

In Stock, only 2 left!

0

13

Exmark 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
