QSS725GKC42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Gear Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kohler

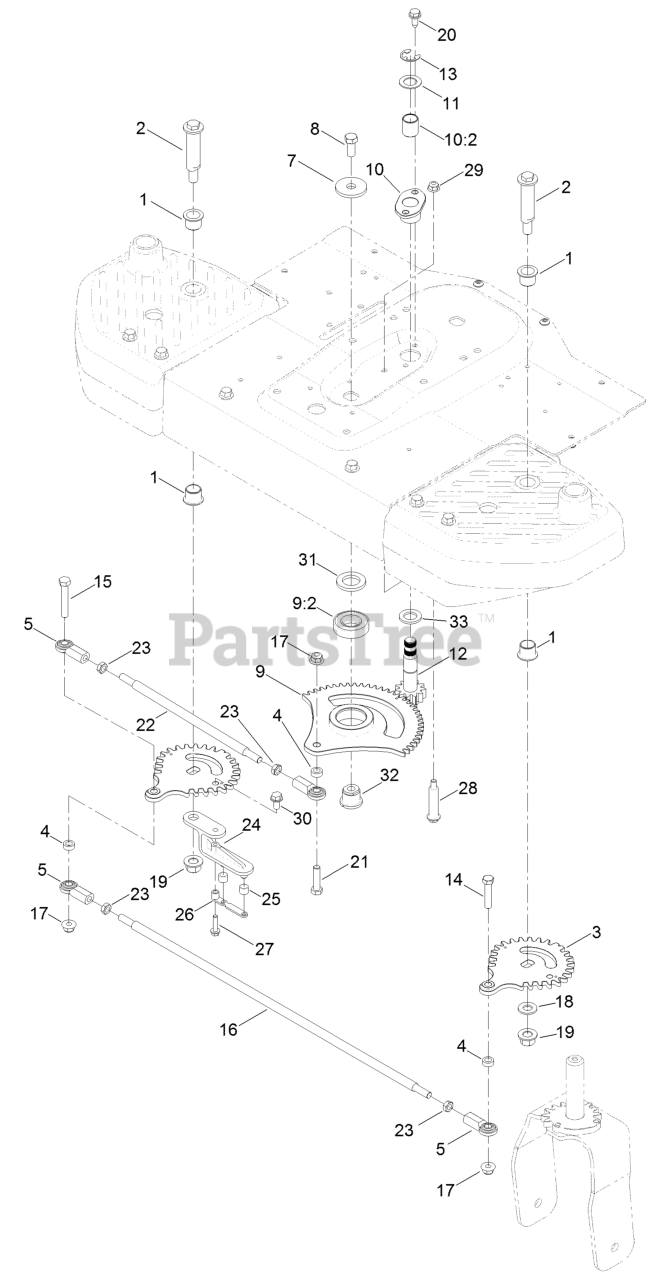

Gear Assembly Parts Diagram

  • Title

1

Exmark 103-4398

BEARING-FLANGE, IGLIDE

$11.99

$

Usually ships in 3-6 days

0

2

Exmark 131-1031

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 130-0830

GEAR-WHEEL, 30 TOOTH

$44.99

$

In Stock, only 1 left!

0

4

Exmark 83-1050

SPACER

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

7

Exmark 84-1560

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 131-8731

SECTOR GEAR ASM

$82.99

$

Usually ships in 3-6 days

0

9:2

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 14

0

10

Exmark 131-8733

FLANGE BEARING ASM

$66.99

$

In Stock, only 1 left!

0

10:2

Exmark 115-7019

BUSHING-STRAIGHT

$10.99

$

Usually ships in 3-6 days

0

11

Exmark 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 12

0

12

Exmark 125-5508

LOWER STEERING SHAFT ASM

$218.99

$

Usually ships in 3-6 days

0

13

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

14

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 131-1035

ROD-CROSS, NARROW

$28.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 131-1036

ROD-STEERING, NARROW

$96.99

$

Usually ships in 3-6 days

0

23

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

24

Exmark 130-6878

LEVER-CABLE

$49.99

$

In Stock, only 1 left!

0

25

Exmark 131-3951

BUSHING

$2.99

$

In Stock, only 2 left!

0

26

Exmark 131-3950

STRAP-ROLLER

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

30

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

31

Exmark 131-8736

SPACER-BEARING

$30.99

$

Usually ships in 3-6 days

0

32

Exmark 131-8737

PIVOT-BEARING

$43.99

$

In Stock, only 1 left!

0

33

Exmark 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0
