QSS725GKC42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Controls And Fuel Tank Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kohler

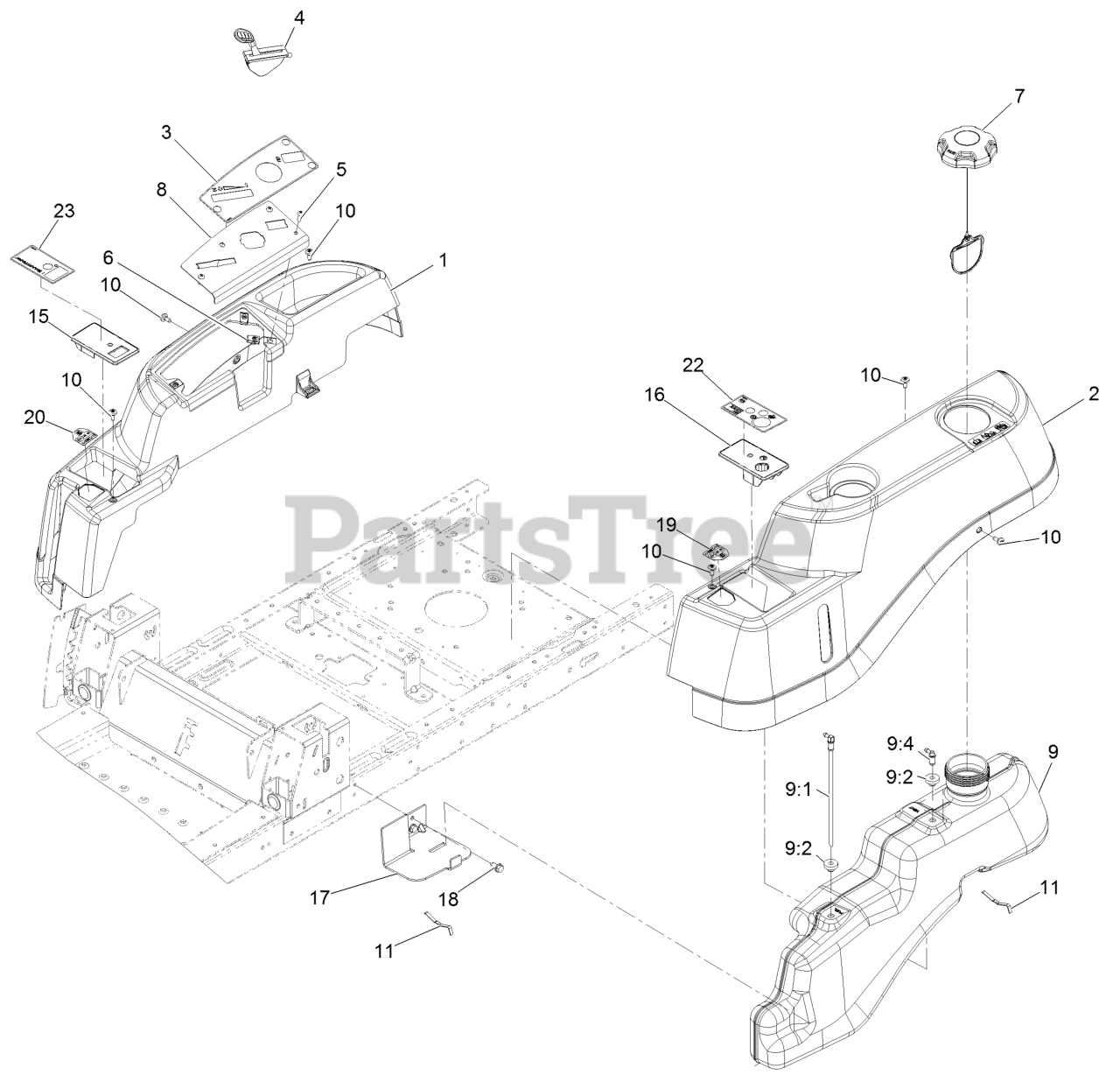

Controls And Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 119-8961

POD-RH

$75.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8960

POD-LH

$75.99

$

Usually ships in 3-6 days

0

3

Exmark 131-4161

DECAL-PANEL, CONTROL

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 131-8727

CABLE-THROTTLE

$40.99

$

Usually ships in 3-6 days

0

5

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

8

Exmark 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 119-3324

FUEL TANK ASM

$322.99

$

In Stock, only 2 left!

0

9:1

Exmark 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, only 1 left!

0

9:2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

9:4

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 5

0

10

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

11

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 6

0

15

Exmark 130-7041

COVER-RH

$10.99

$

Usually ships in 3-6 days

0

16

Exmark 130-7042

COVER-LH

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

19

Exmark 131-3621

DECAL-NMIR

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 131-3620

DECAL-CONTROL, PEDAL

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 131-3665

DECAL-KEYCHOICE

$6.99

$

In Stock, only 4 left!

0

23

Exmark 131-3955

DECAL-BRAKE, PARKING

$6.99

$

Usually ships in 3-6 days

0
