QSS708GEM42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) Speed Control Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Exmark 708

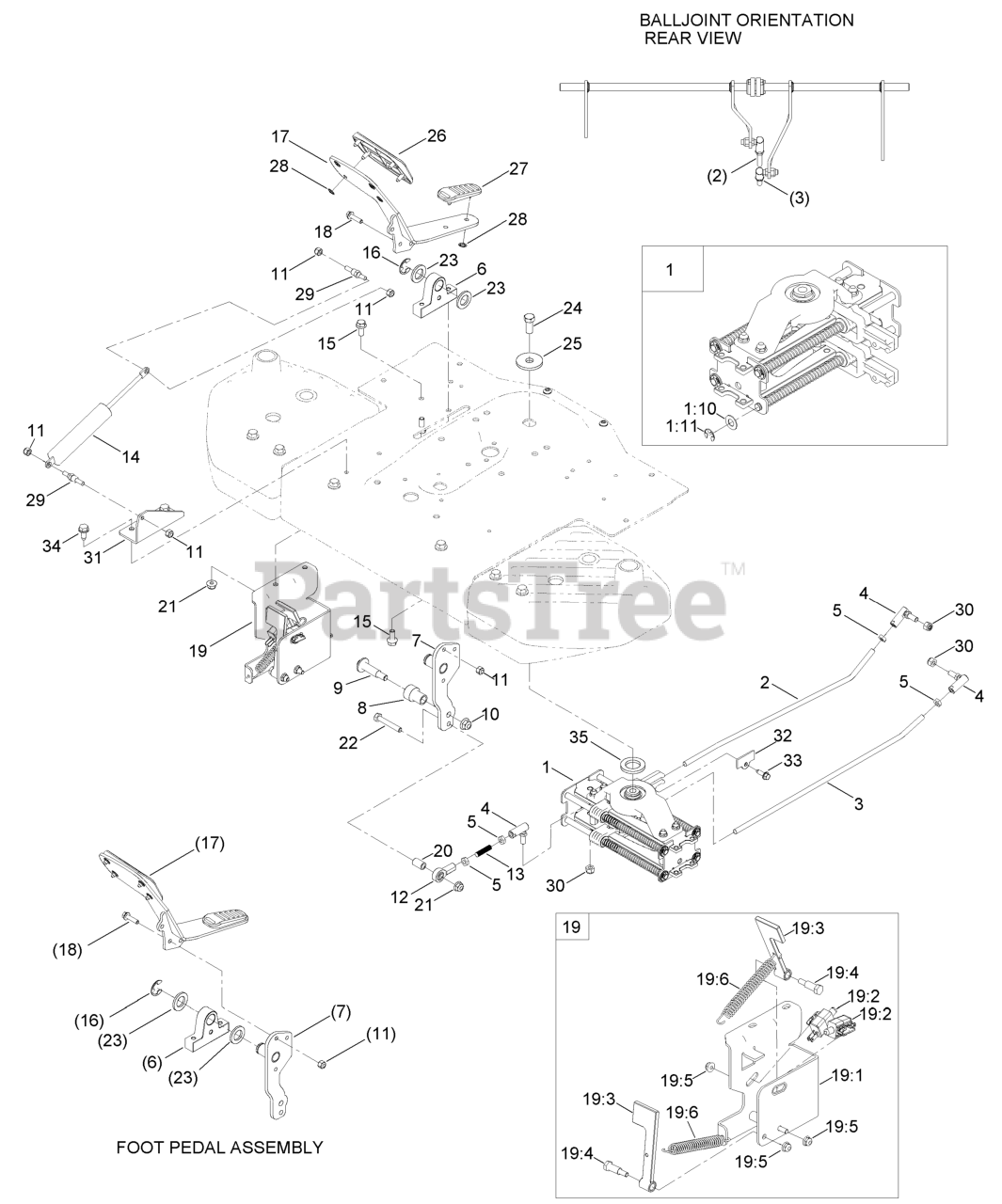

Speed Control Assembly Parts Diagram

  • Title

1

Exmark 131-0904

SPEED CONTROL ASM

$336.99

$

Usually ships in 3-6 days

0

1:10

Exmark 131-8667

WASHER-THRUST

Note: Not illustrated

$1.49

$

In Stock, Qty 12

0

1:11

Exmark 32120-18

E-RING

Note: Not illustrated

$1.49

$

In Stock, only 3 left!

0

2

Exmark 127-0115

ROD-HYDRO, RH

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 127-0116

ROD-HYDRO, LH

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 2411-33

BALLJOINT-RH (W/GROMMET)

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

6

Exmark 130-6887

MOUNT-PEDAL PIVOT

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 125-5517

PIVOT LEVER ASM

$44.99

$

Usually ships in 3-6 days

0

8

Exmark 127-3397

ROLLER

$7.99

$

Usually ships in 3-6 days

0

9

Exmark 56-6590

136-7198
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

12

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

13

Exmark 130-6906

ROD-THREADED

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 131-0958

DAMPER-NON CAVITATING

$83.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

16

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

17

Exmark 125-3065-01

PEDAL-TRACTION

$53.99

$

Usually ships in 3-6 days

0

18

Exmark 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 131-0903

NEUTRAL RETURN ASM

$147.99

$

Usually ships in 3-6 days

0

19:1

Exmark 132-0909-03

BRACKET-SWITCH

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

0

19:2

Exmark 110-6765

SWITCH

Note: Not illustrated

$13.99

$

In Stock, Qty 11

0

19:3

Exmark 130-0782

ARM-SWITCH

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0

19:4

Exmark 119-2309

BOLT-SHOULDER

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

19:5

Exmark 104-7201

NUT-HF

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

19:6

Exmark 120-7027

SPRING-EXTENSION

Note: Not illustrated

$8.99

$

In Stock, Qty 13

0

20

Exmark 131-1034

SPACER

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Exmark 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

25

Exmark 84-1560

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

26

Exmark 98-9040

PAD-TOE, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

27

Exmark 98-9039

PAD-HEEL, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

28

Exmark 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

29

Exmark 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 2 left!

0

30

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

31

Exmark 130-6910-03

BRACKET-DAMPER

$7.99

$

Usually ships in 3-6 days

0

32

Exmark 131-1041

COVER-END ROD

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

34

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

35

Exmark 131-8736

SPACER-BEARING

$30.99

$

Usually ships in 3-6 days

0
