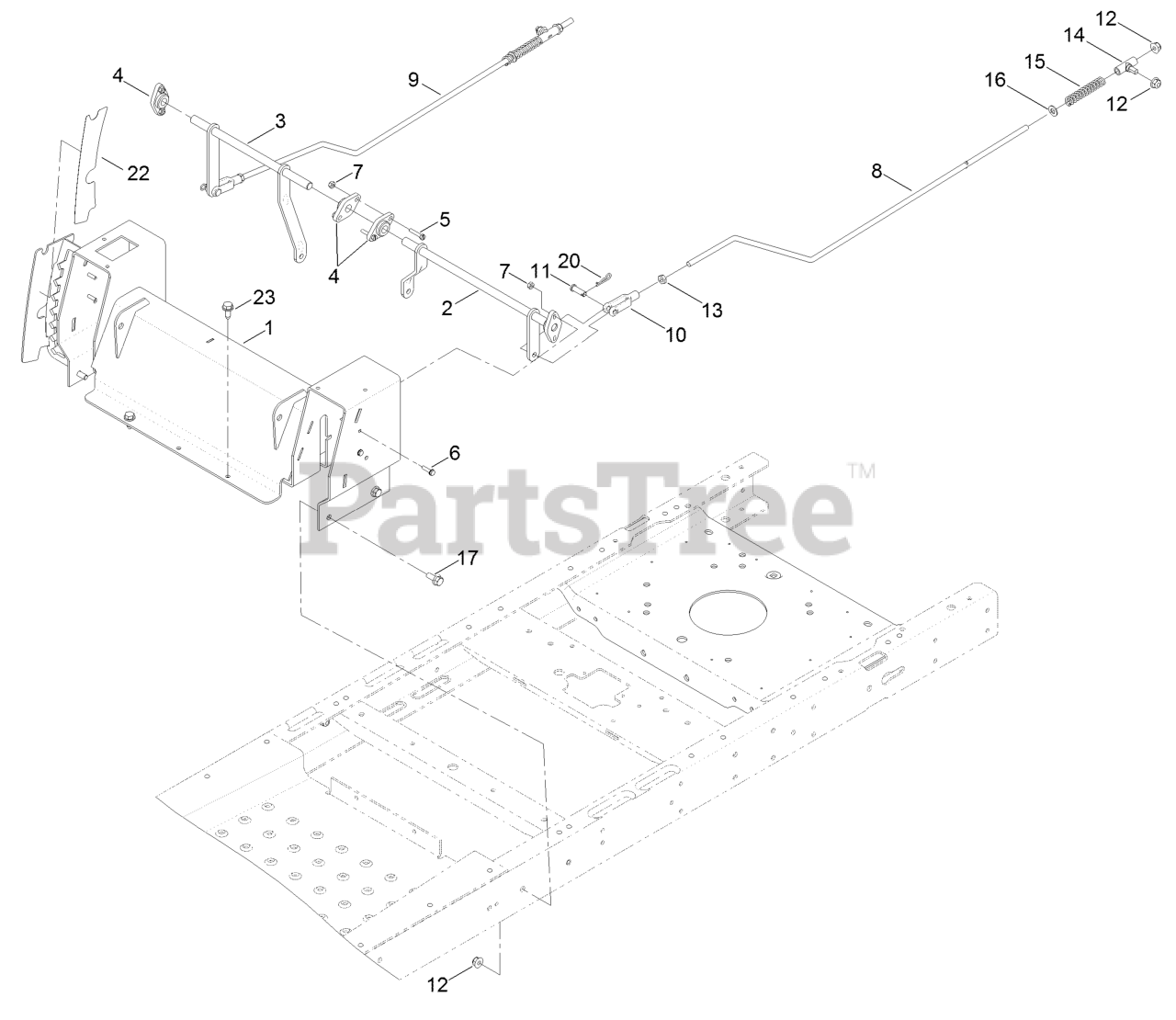

QSS708GEM42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) Motion Control Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Exmark 708

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 130-6898-03

CONTROL BOX ASM

$185.99

$

Usually ships in 3-6 days

0

2

Exmark 130-6903

BELLCRANK-LH, NARROW

$44.99

$

Usually ships in 3-6 days

0

3

Exmark 130-6904

BELLCRANK-RH, NARROW

$44.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0146

BEARING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

6

Exmark 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 125-1812

ROD-HYDRO, LH

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3378

ROD-HYDRO, RH

$22.99

$

Usually ships in 3-6 days

0

10

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

11

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Exmark 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

20

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

22

Exmark 119-8871

DECAL-HOC

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0
