QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Transaxle Group Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

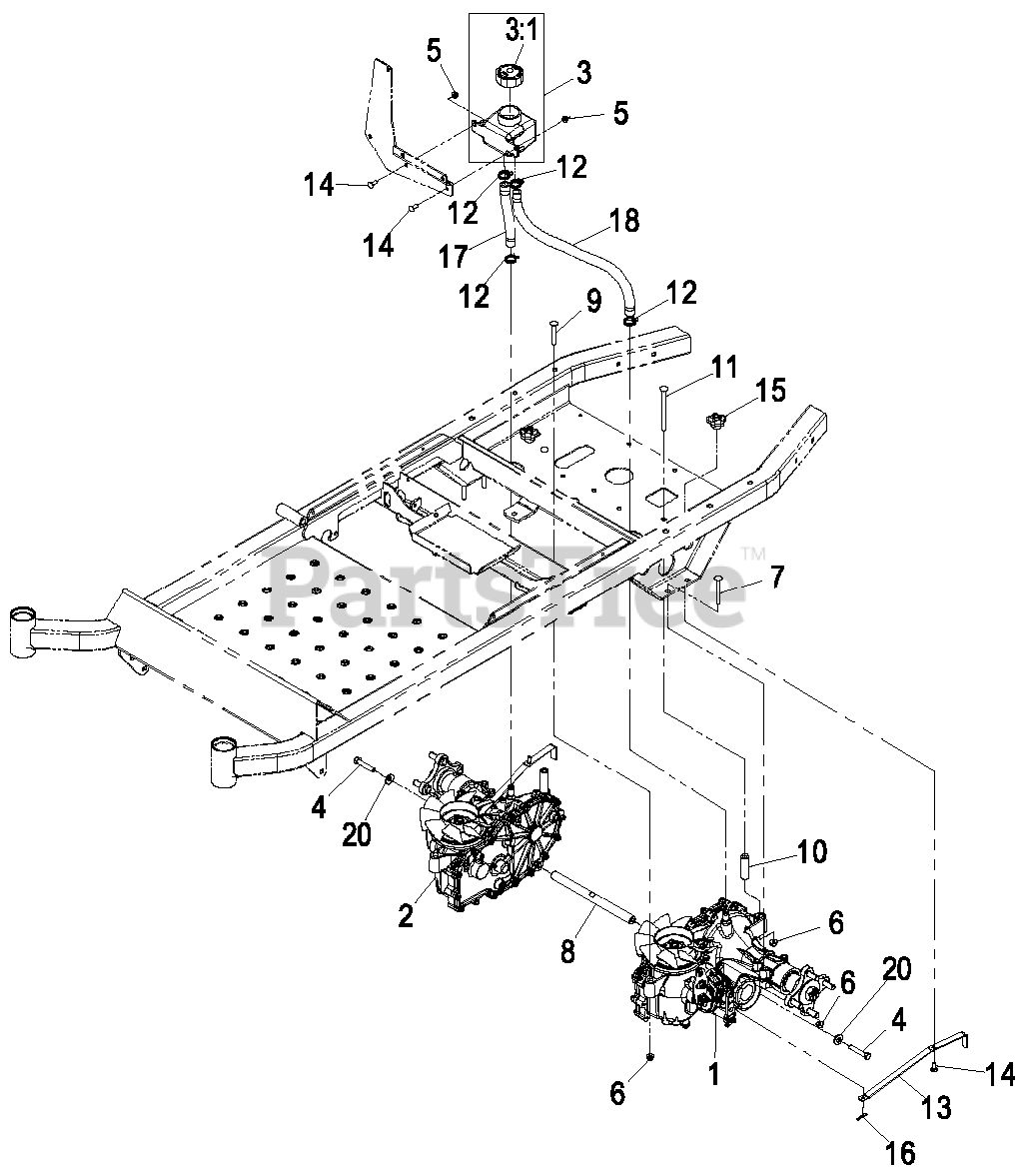

Transaxle Group Parts Diagram

  • Title

1

Exmark 116-2488

TRANSAXLE ASM

$

$

Not available

2

Exmark 116-2489

TRANSAXLE ASM

$2290.99

$

Usually ships in 3-6 days

0

3

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

3:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

4

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

8

Exmark 116-2052

116-4860
(Superseded to 116-4860)

$

$

Not available

9

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

10

Exmark 116-2803

SPACER-HYDRO

$

$

Not available

11

Exmark 3230-30

Bolt-Carriage 5/16-18 X 1 1/4

$11.99

$

In Stock, only 2 left!

0

12

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

13

Exmark 109-5395

ARM-BYPASS, HYDRO

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

15

Exmark 108-6402

KNOB-HANDLE

$1.49

$

In Stock, only 3 left!

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-5577

HOSE-HYDRAULIC

$6.49

$

In Stock, Qty 5

0

18

Exmark 109-5578

HOSE-HYDRAULIC

$18.99

$

In Stock, only 1 left!

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
