QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Motion Control Group Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

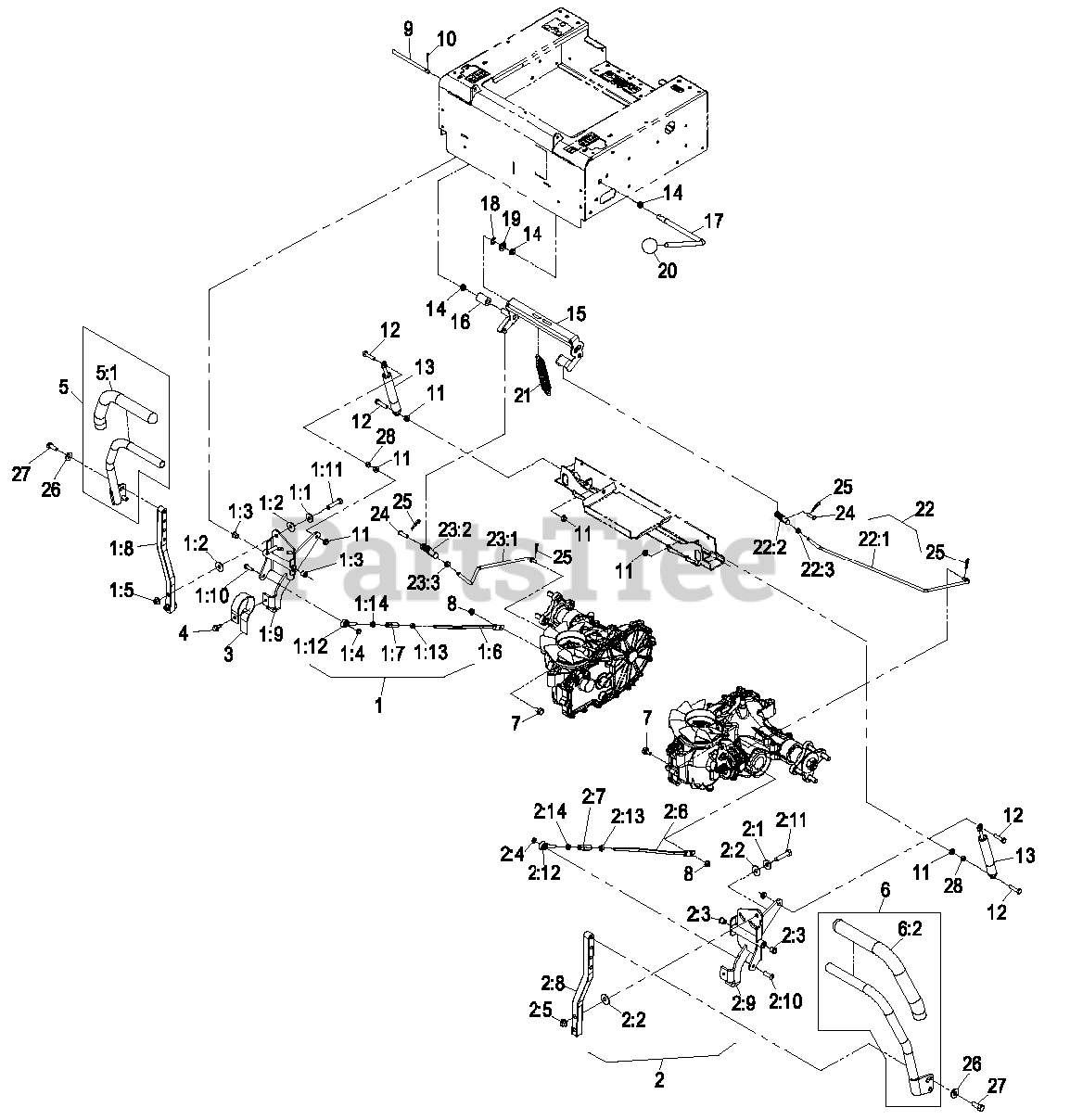

Motion Control Group Parts Diagram

  • Title

1

Asm, Motion Control Rh

$

$

Not available

1:1

Exmark 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

1:2

Exmark 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, Qty 6

0

1:3

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

1:4

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

1:5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

1:6

Exmark 116-2543

LINK,MOTION CONTROL

$20.99

$

Usually ships in 3-6 days

0

1:7

Exmark 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

1:8

Exmark 116-2726

ARM-MOTION CONTROL

$

$

Not available

1:9

Exmark 116-2688

RH CONTROL PIVOT ASM

$

$

Not available

1:10

Exmark 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

1:11

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

1:12

Exmark 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

1:13

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

1:14

Exmark 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

2

Asm, Motion Control Lh

$

$

Not available

2:1

Exmark 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

2:2

Exmark 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, Qty 6

0

2:3

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

2:4

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

2:5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2:6

Exmark 116-2543

LINK,MOTION CONTROL

$20.99

$

Usually ships in 3-6 days

0

2:7

Exmark 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

2:8

Exmark 116-2726

ARM-MOTION CONTROL

$

$

Not available

2:9

Exmark 116-2689

LH CONTROL PIVOT ASM

$

$

Not available

2:10

Exmark 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

2:11

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2:12

Exmark 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

2:13

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

2:14

Exmark 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

3

Exmark 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

5

Exmark 117-5339

RH CONTROL HANDLE ASM

$88.99

$

Usually ships in 3-6 days

0

6

Exmark 117-5338

LH CONTROL HANDLE ASM

$88.99

$

Usually ships in 3-6 days

0

Exmark 108-6187

GRIP

$27.99

$

Usually ships in 3-6 days

0

7

Exmark 117-5339

RH CONTROL HANDLE ASM

$88.99

$

Usually ships in 3-6 days

0

Exmark 108-6187

GRIP

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-3705

PIN-CONTROL PIVOT

$17.99

$

In Stock, only 2 left!

0

10

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

11

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Exmark 109-5957

DAMPER-MOTION CONTROL

$84.99

$

In Stock, Qty 5

0

14

Exmark 116-1393

BUSHING,SNAP

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 116-1177

116-6233
(Superseded to 116-6233)

$84.99

$

Usually ships in 3-6 days

0

16

Exmark 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

0

17

Exmark 116-1169

HANDLE,BRAKE

$

$

Not available

18

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

19

Exmark 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

21

Exmark 88-6130

SPRING-DECK, ENGAGEMENT

$13.99

$

In Stock, only 1 left!

0

22

Exmark 116-1165

BRAKE LINKAGE ASM-LH

$

$

Not available

23

Exmark 116-1166

BRAKE LINKAGE ASM-RH

$117.99

$

Usually ships in 3-6 days

0

24

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
