QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Electrical Group Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

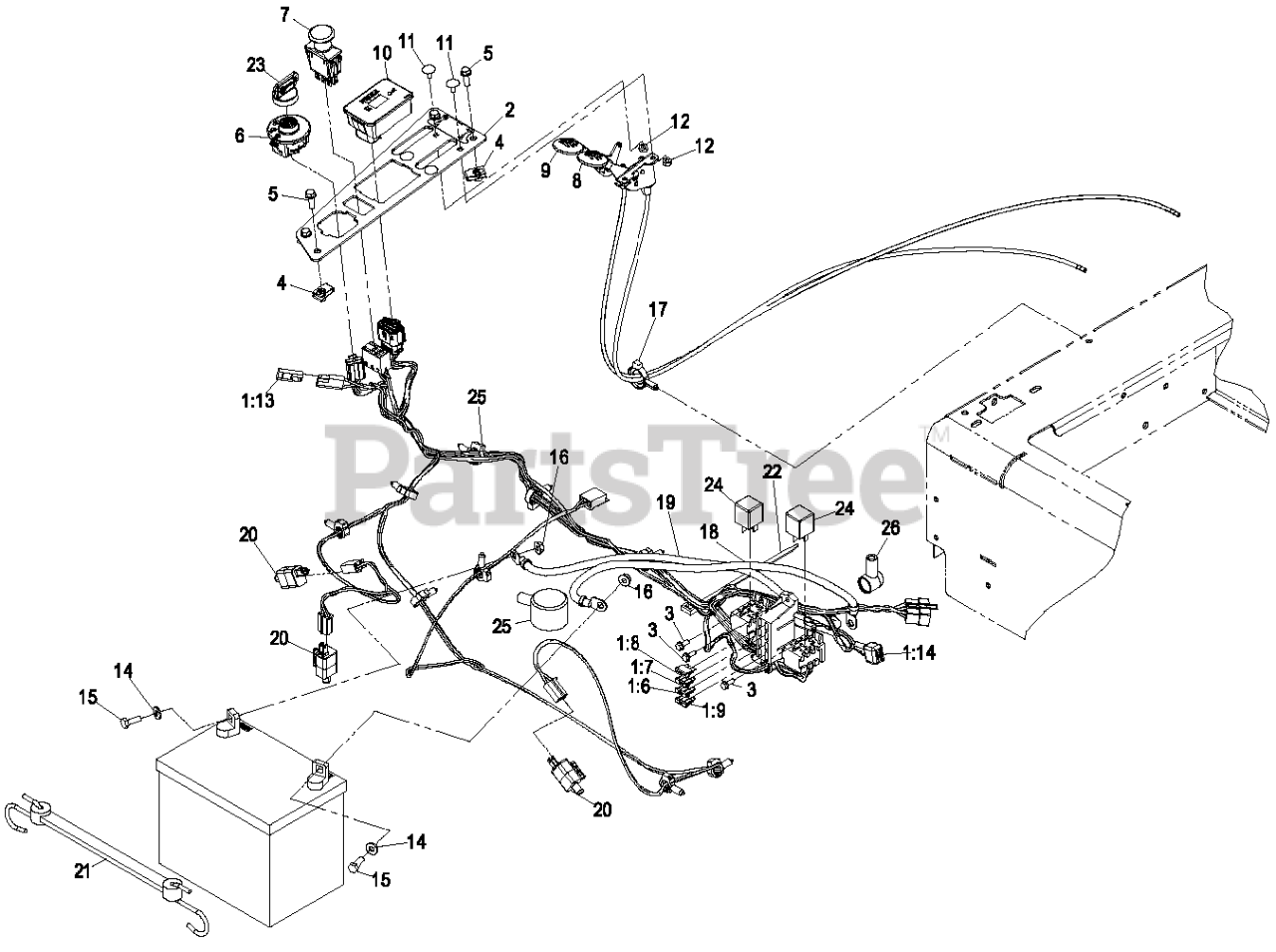

Electrical Group Parts Diagram

  • Title

1

Exmark 116-3304

HARNESS-WIRE

Note: Use dielectric grease on all wiring harness connectors

$

$

Not available

1:6

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 16

0

1:7

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

1:8

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

1:9

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

1:13

Exmark 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

1:14

Exmark 109-9186

DIODE-TVS

$19.99

$

In Stock, only 2 left!

0

2

Exmark 116-1015

DISCONTINUED

$

$

Not available

3

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$28.99

$

In Stock, Qty 20+

0

7

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

8

Exmark 109-3987

CONTROL-THROTTLE

$38.99

$

In Stock, only 1 left!

0

9

Exmark 109-8747

CONTROL,CHOKE

$35.99

$

In Stock, only 2 left!

0

10

Exmark 112-8650

116-5609
(Superseded to 116-5609)

$164.99

$

In Stock, only 1 left!

0

11

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

12

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

18

Exmark 109-7621

POSITIVE BATTERY CABLE AS

$38.99

$

Usually ships in 3-6 days

0

Exmark 109-7653

POSITIVE BATTERY CABLE AS

$35.99

$

In Stock, only 1 left!

0

19

Exmark 103-0705

CABLE-GROUND, NEGATIVE

$19.99

$

In Stock, only 2 left!

0

20

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

21

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

22

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

25

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

26

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0
