QSP20KAS443 - Exmark 44" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) 44" Deck Group Parts Diagram

44" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

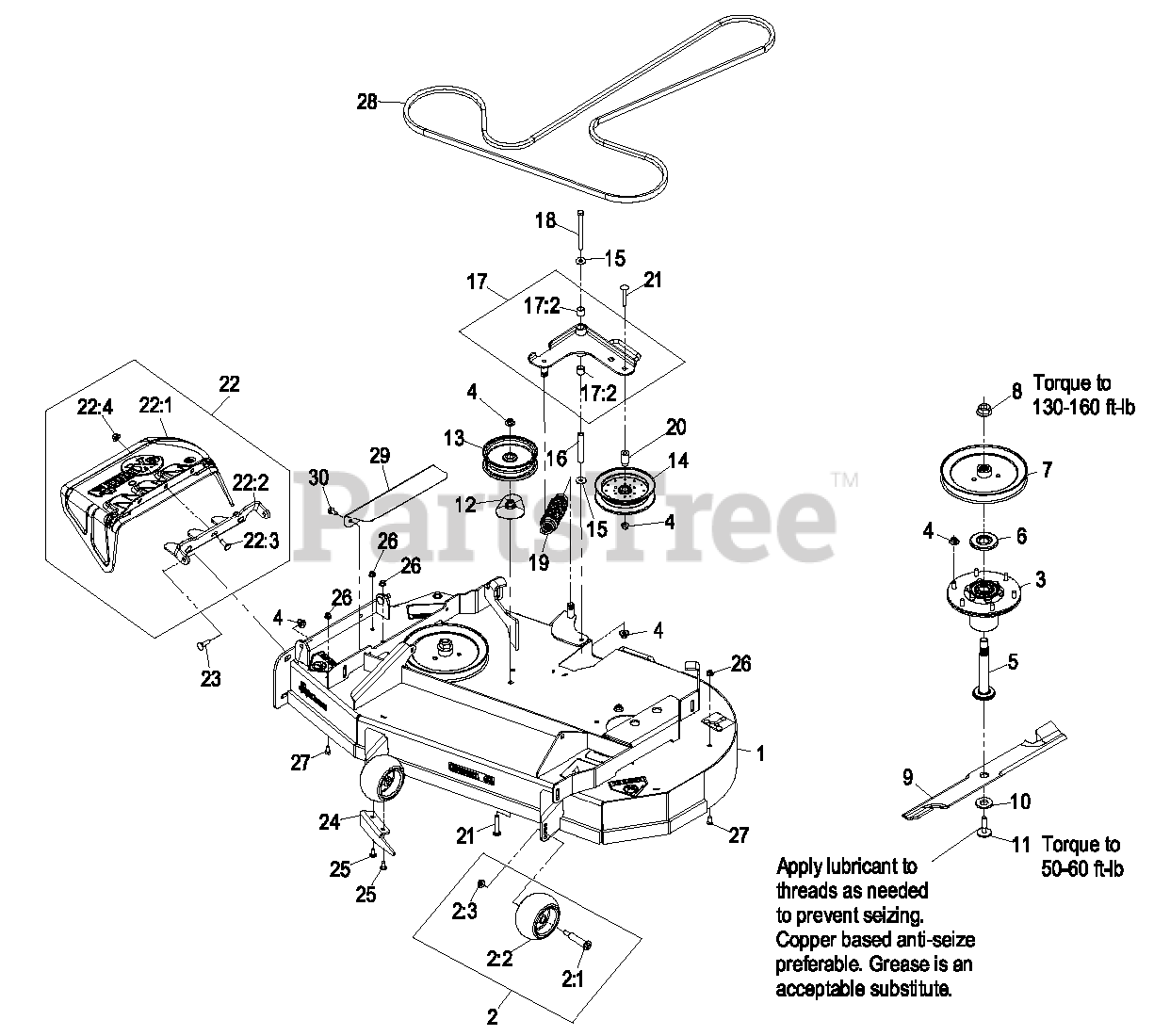

44" Deck Group Parts Diagram

  • Title

1

Exmark 116-1021

DECK ASM-W/DECALS, 44

$2626.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$43.99

$

In Stock, only 4 left!

0

2:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

2:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

2:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-1174

116-0379
(Superseded to 116-0379)

$

$

Not available

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-0381

SPINDLE,HEX PILOT 5.5" DE

$

$

Not available

6

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

7

Exmark 116-1036

SHEAVE-BLADE DRIVE, 8.40

$

$

Not available

8

Exmark 104-0753

NUT-FLANGE

$4.49

$

In Stock, only 2 left!

0

9

Exmark 116-1037

Blade, Notched

$

$

Currently unavailable

Exmark 116-1047

Blade, Mulch

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 116-1108

$

$

Currently unavailable

10

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 18

0

11

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

12

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

13

Exmark 99-8912

116-4669
(Superseded to 116-4669)

$79.99

$

In Stock, Qty 5

0

14

Exmark 103-8743

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 8

0

15

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

16

Exmark 103-0040

BUSHING-TIGHTENER, PIVOT

$18.99

$

In Stock, only 4 left!

0

17

Exmark 116-3248

DISCONTINUED

$

$

Not available

17:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

18

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

19

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

20

Exmark 116-2980

BUSHING,IDLER

$28.99

$

Usually ships in 3-6 days

0

21

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

22

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

22:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

22:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

22:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

24

Exmark 109-5498-03

BAFFLE-DISCHARGE

$44.99

$

In Stock, only 1 left!

0

25

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 2 left!

0

29

Exmark 116-2828-01

COVER,BELT

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0
