QP RT9 A - Quality Pro Tiller (2000) Transmission Parts Diagram

Tiller

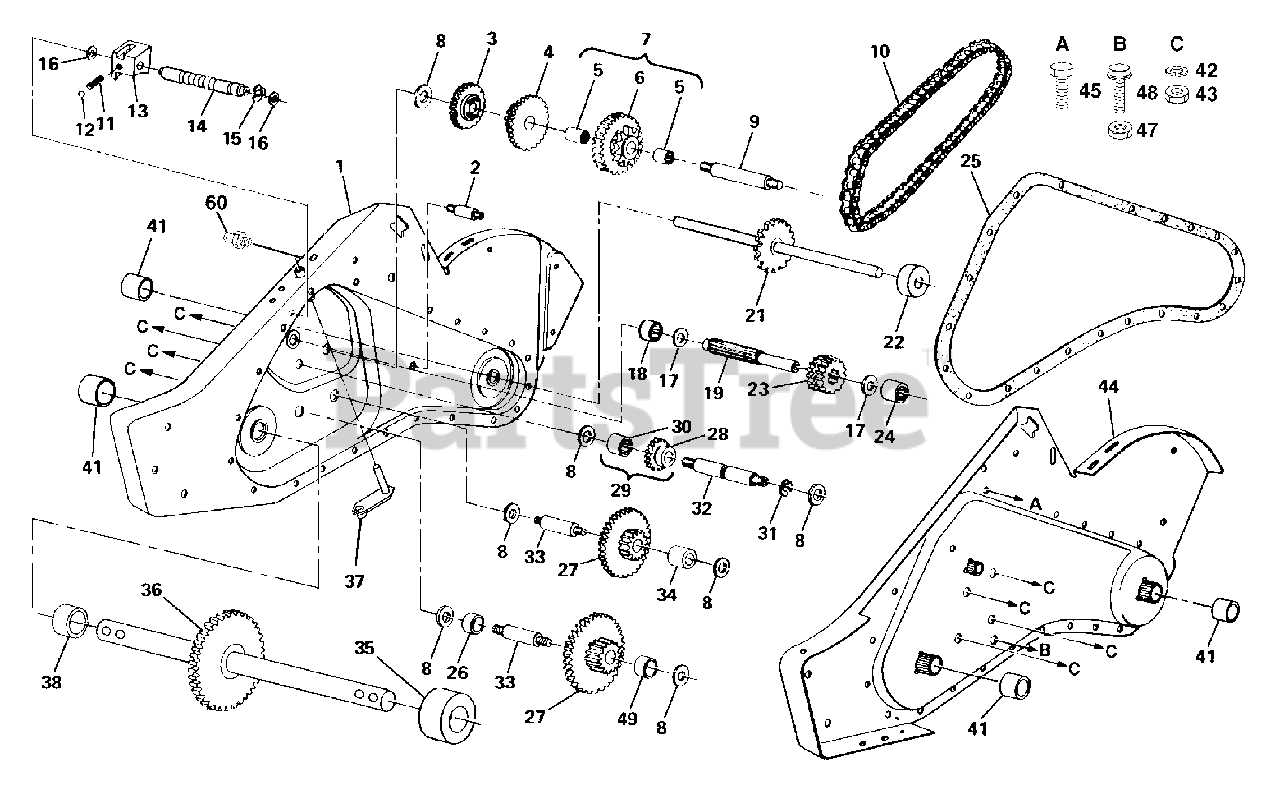

Transmission Parts Diagram

  • Title

1

Electrolux/AYP 170325

Gearcase Assembly, R.H., with Bearing
(Superseded to 532170325)

Note: (Includes Key No. 18)

$122.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 8370J

Bolt, Upset
(Superseded to 532008370)

$

$

Not available

3

Electrolux/AYP 8547J

Gear, Reverse
(Superseded to 532008547)

$

$

Not available

4

Electrolux/AYP 8546J

Gear, Cluster, Red., 1st and 2nd
(Superseded to 532008546)

$

$

Not available

5

Electrolux/AYP 100413K

Bearing, Needle
(Superseded to 585695501)

$24.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 674A291

Sprocket Assembly, Tine

$

$

Not available

7

Electrolux/AYP 674A290

Sprocket Assembly with Bearings
(Superseded to 532144564)

Note: (Includes Key #6 & two of Key #5)

$

$

Not available

8

Electrolux/AYP 4358J

Washer
(Superseded to 532004358)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 8358J

Shaft, Reduction, 1st
(Superseded to 532008358)

$17.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 8371J

Chain, Roller, 60P
(Superseded to 532008371)

$66.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 100371K

Spring, Shift, Fork
(Superseded to 532100371)

$7.49

$

In Stock, Qty 6

0

12

Electrolux/AYP 7392M

Ball, Steel
(Superseded to 532007392)

$

$

Not available

13

Electrolux/AYP 8353J

Fork, Shift
(Superseded to 532008353)

$34.99

$

In Stock, Qty 8

0

14

Electrolux/AYP 8354J

Shaft, Shift
(Superseded to 532008354)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 12000039

Klip Ring
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 154467

Washer, Seal
(Superseded to 532154467)

$7.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 1370H

Race, Bearing, Thrust, 5/8 I.D.
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 4895H

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

19

Electrolux/AYP 150695

Shaft, Input
(Superseded to 532150695)

$66.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105378X

Shaft Assembly, Tine
(Superseded to 532105378)

$

$

Not available

22

Electrolux/AYP 106181X

Spacer 1.008 x 1-3/4 x .645
(Superseded to 532106181)

$14.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 8359J

Pinion, Input
(Superseded to 532008359)

$

$

Not available

24

Electrolux/AYP 5020J

Bearing, Needle
(Superseded to 532005020)

$17.99

$

In Stock, Qty 5

0

25

Electrolux/AYP 164396

Gasket, Gearcase

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 106389X

Spacer .765 I.D. x 1.12 x 5/8
(Superseded to 532106389)

$9.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 100433M

Gear, Cluster, Red., 2nd and 3rd
(Superseded to 532100433)

$56.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 8357J

Gear, Reverse Idler
(Superseded to 532008357)

$36.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 674A289

Gear Assembly, Reverse Idler
(Superseded to 532144562)

Note: (Includes Key Numbers 28 and 30)

$54.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 6803J

Bearing, Needle
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 12000040

Klip Ring
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 8356J

Shaft, Reverse Idler
(Superseded to 532008356)

$21.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 100016K

Shaft, Reduction, 2nd
(Superseded to 532100016)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 106392X

Spacer .765 I.D. x 1-1/8 x 1-3/8
(Superseded to 532106392)

$

$

Not available

35

Electrolux/AYP 106394X

Spacer, Ground Drive, L.H.
(Superseded to 532106394)

$31.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 100436L

Shaft Assembly, Ground
(Superseded to 532100436)

$145.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 142145

Arm Assembly, Shift
(Superseded to 532142145)

$

$

Not available

38

Electrolux/AYP 106393X

Spacer, Ground Drive, R.H.
(Superseded to 532106393)

$21.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 155236

Seal Asm Oil
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 73610700

Nut, Hex 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 162165

Gearcase Assembly, L.H., with Bearing
(Superseded to 532162170)

Note: (Includes Key Number 24)

$358.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17720510

Screw, Thd Cut 5/16-18 x 5/8
(Superseded to 583608801)

$

$

Not available

47

Electrolux/AYP 73220500

Nut, Hex Head 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 100107K

Screw, Whiz-Lock 5/16-18 x 4
(Superseded to 532100107)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 106391X

Spacer .765 I.D. x 1.12 x 3/4
(Superseded to 532106391)

$15.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 6855M

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

60

Electrolux/AYP 6066J

Grease, Plastilub Number 1
(Superseded to 585517301)

$

$

Not available

Electrolux/AYP 170324

Assembly, Transmission
(Superseded to 532183655)

$910.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 162170

Kit, Gearcase LH and RH w/Bearing
(Superseded to 532162170)

$358.99

$

Usually ships in 3-10 days

0
