QP RT9 A - Quality Pro Tiller (2000) Mainframe, Right Side Parts Diagram

Tiller

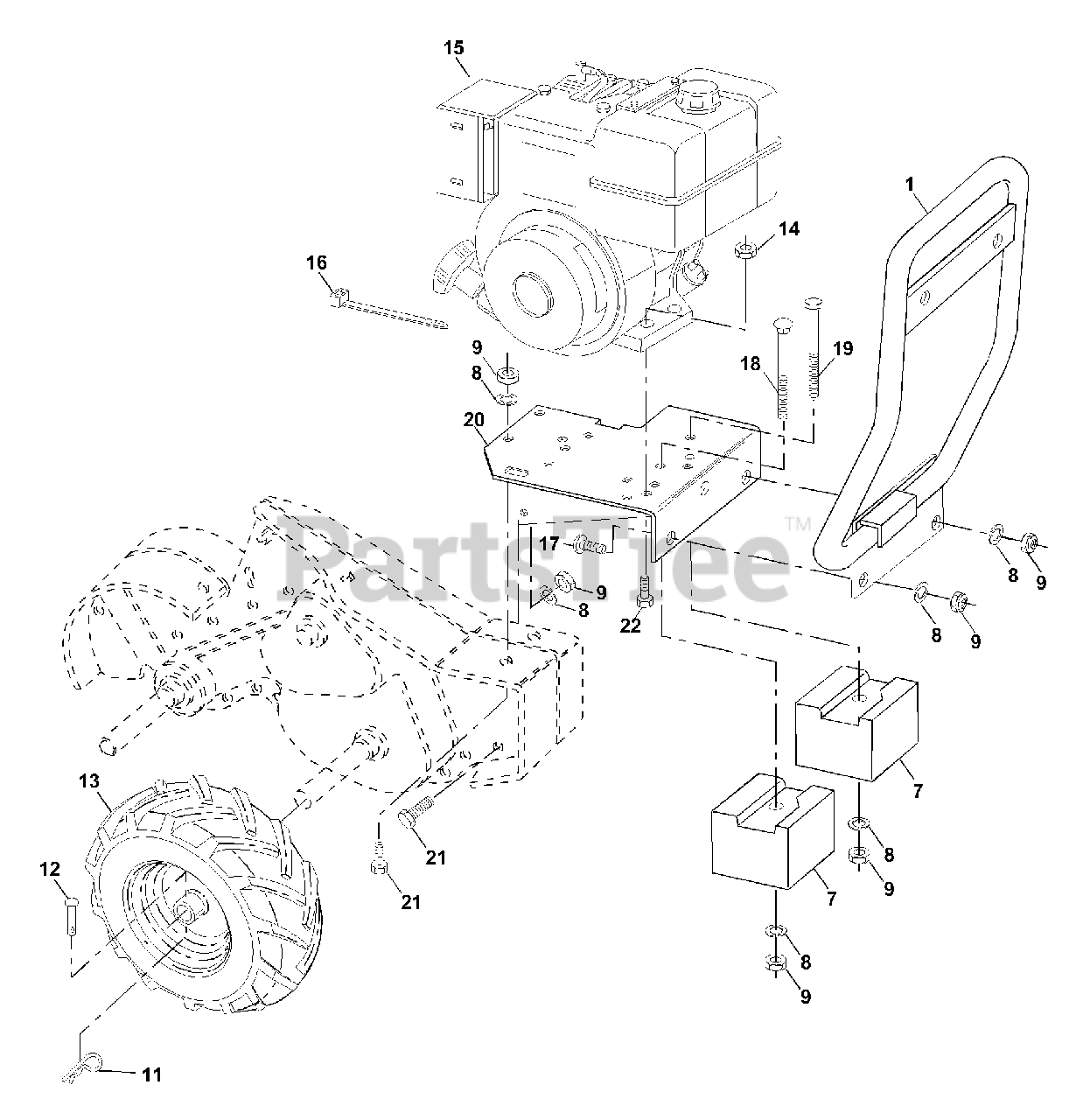

Mainframe, Right Side Parts Diagram

  • Title
1

Electrolux/AYP 138402

Bumper
(Superseded to 532138402)

$

$

Not available

7

Electrolux/AYP 8450J

Counter Weight, R.H.
(Superseded to 532008450)

$

$

Not available

8

Electrolux/AYP 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 4921H

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 4929H

Rivet, Drilled
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 5015J

Tire
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 138417

Rim
(Superseded to 532138417)

$94.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 795R

Tire Valve

$

$

Not available

14

Electrolux/AYP 73510500

Nut, Keps 5/16-18

$2.99

$

Usually ships in 3-10 days

0

15

Engine, Briggs Model 19G402

Note: (Order parts from engine manufacturer)

$

$

Not available

16

Electrolux/AYP 7192J

Tie, Cable
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

17

Murray 72140608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

18

Electrolux/AYP 72470636

Bolt, Carriage 3/8-16 x 4-1/2
(Superseded to 872470636)

$14.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 74760672

Bolt, Hex Head 3/8-16 x 4-1/2
(Superseded to 874760672)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 138669

Bracket, Engine
(Superseded to 532138669)

$

$

Not available

21

Electrolux/AYP 74760616

Bolt, Hex Head 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 74760528

Bolt, Hex 5/16-18 x 1-3/4
(Superseded to 874760528)

$4.99

$

In Stock, Qty 12

0
