QP 20H46 B - Quality Pro Lawn Tractor (2000) Mower Deck Parts Diagram

Lawn Tractor

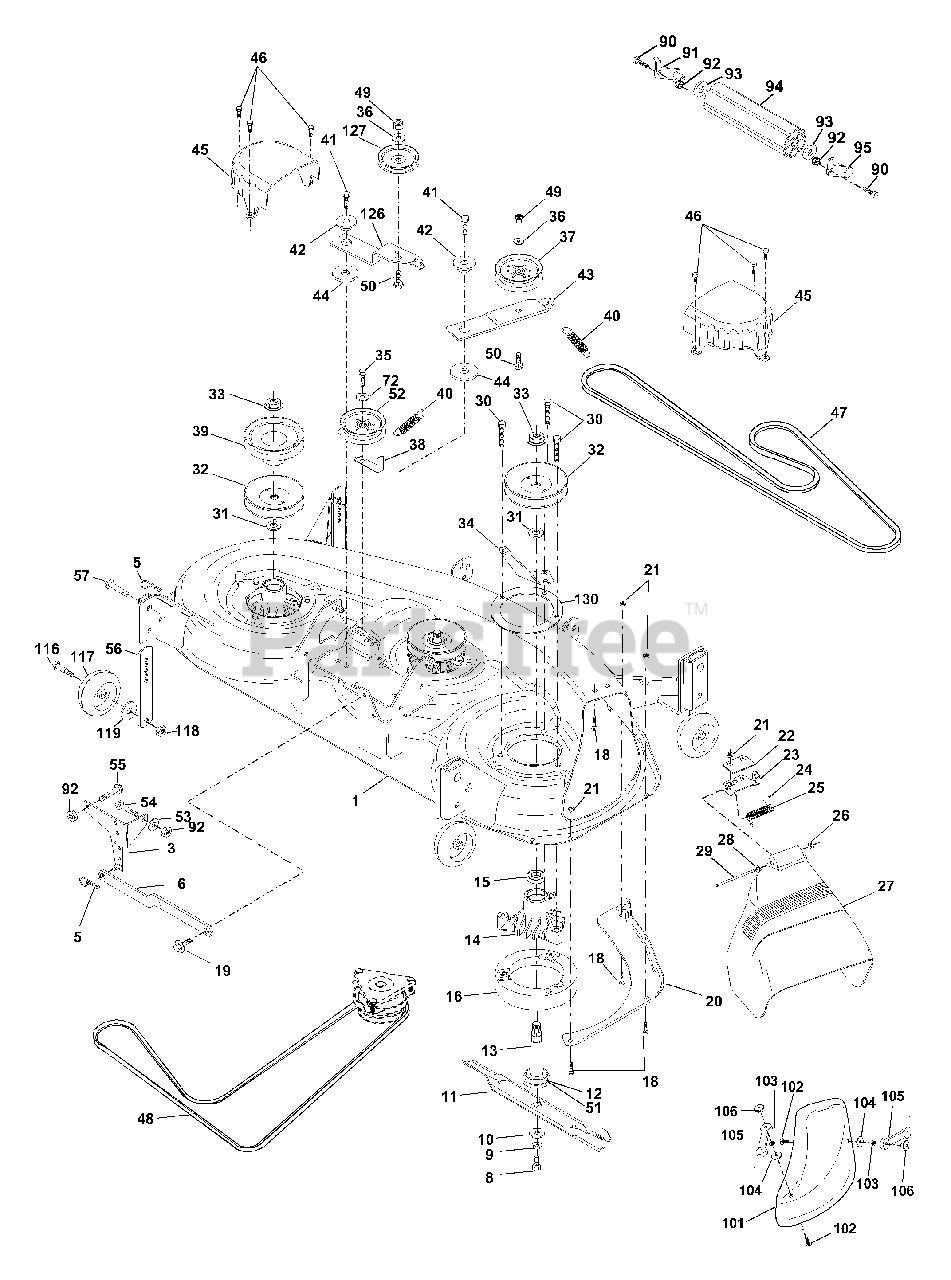

Mower Deck Parts Diagram

  • Title
1

Electrolux/AYP 164811

Deck Asm., Mower 46"
(Superseded to 532176034)

$339.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 138457

Bracket Asm., Sway Bar
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 130832

Arm, Suspension, Rear (Sway Bar)
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 10030600

Washer, Lock Hvy., Unplated 3/8
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hard Blade, Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 170698

Blade, 46" Hi Perf
(Superseded to 532176084)

$27.99

$

In Stock, only 3 left!

0

11

Electrolux/AYP 152443

Blade, 46" Mulching
(Superseded to 532152443)

$20.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 129895

Bearing, Ball, Mandrel #6204
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

Shaft Asm. w/Lower Bearing
(Superseded to 532137553)

Note: (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

Housing, Mandrel
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 140329

Stripper, Mower Round
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Hex Head, Shoulder 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 145055

Baffle, Vortex Mower 46"
(Superseded to 532145055)

$9.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

Nut, Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

Stiffener, Bracket
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

Bracket, Deflector
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 149287

Spring, Torsion, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 166883X428

Shield, Deflector Mower
(Superseded to 532166883)

$

$

Not available

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 157722

Screw, Wsh Head, Thdroll
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 153531

Pulley, Mandrel
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 137266

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 144945

Anchor, Spring Deck 46"
(Superseded to 532144945)

$

$

Not available

35

Electrolux/AYP 17490628

Screw, Thdroll 3/8-16 x 1-3/4 Tytt
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

38

Electrolux/AYP 156086

Keeper, Belt, Idler
(Superseded to 532156086)

$8.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 144917

Pulley, Idler, Driven
(Superseded to 532144917)

$31.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 137273

Spring, Secondary 44/46/50 Vent
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

41

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

42

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 144949

Arm, Idler Secondary
(Superseded to 532144949)

$

$

Not available

44

Electrolux/AYP 133943

Washer,Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 145059

Cover, Mandrel Deck
(Superseded to 532145059)

$

$

Not available

46

Electrolux/AYP 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 144959

V-Belt, Mower, Secondary
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 148763

V-Belt, Mower, Primary
(Superseded to 532148763)

$

$

Not available

49

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 153390

Washer, Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

52

Electrolux/AYP 156493

Pulley Idler 46 Pri. Drive
(Superseded to 532173901)

$

$

Not available

53

UNKNOWN

$

$

Not available

54

UNKNOWN

$

$

Not available

55

UNKNOWN

$

$

Not available

56

Electrolux/AYP 155986

Bar Adjusting Gage wheel

$

$

Not available

57

Electrolux/AYP 156941

Pin Head Rivet
(Superseded to 532156941)

$

$

Not available

72

Electrolux/AYP 19131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 74760616

Bolt, Fin, Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 132274

Bracket, Asm Noseroller, LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Electrolux/AYP 73800600

Nut, Lock, Hex w/Ins 3/8-16UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

94

Electrolux/AYP 132264

Roller, Nose 38 & 42

$

$

Not available

95

Electrolux/AYP 132273

Bracket, asm Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 145579

Cover Mulcher 46" Black
(Superseded to 532145579)

$

$

Not available

102

Electrolux/AYP 71161010

Screw Phillips Truss Head
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 10071000

Washer Lock #10
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

104

Electrolux/AYP 19061216

Washer #10
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

105

Electrolux/AYP 160793

Latch Asm mulch/Bagger
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 2029J

Nut Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 137644

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 133957

Gauge Wheel
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 73930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 144948

Arm, Idler, Primary Deck 46"
(Superseded to 532144948)

$

$

Not available

127

Electrolux/AYP 146763

Pulley, Idler, V-Groove Dim. 4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

130

UNKNOWN

$

$

Not available

Electrolux/AYP 143651

Mandrel Assembly
(Superseded to 532143651)

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33)

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 158314

Mower Serv 46"
(Superseded to 532166211)

Note: (Standard Deck Order nose roller, gauge wheels, and mulch plate separately Key Nos. 90-95, 101-106, and 116-118)

$910.99

$

Usually ships in 3-10 days

0
