QP 20H46 B - Quality Pro Lawn Tractor (2000) Drive Parts Diagram

Lawn Tractor

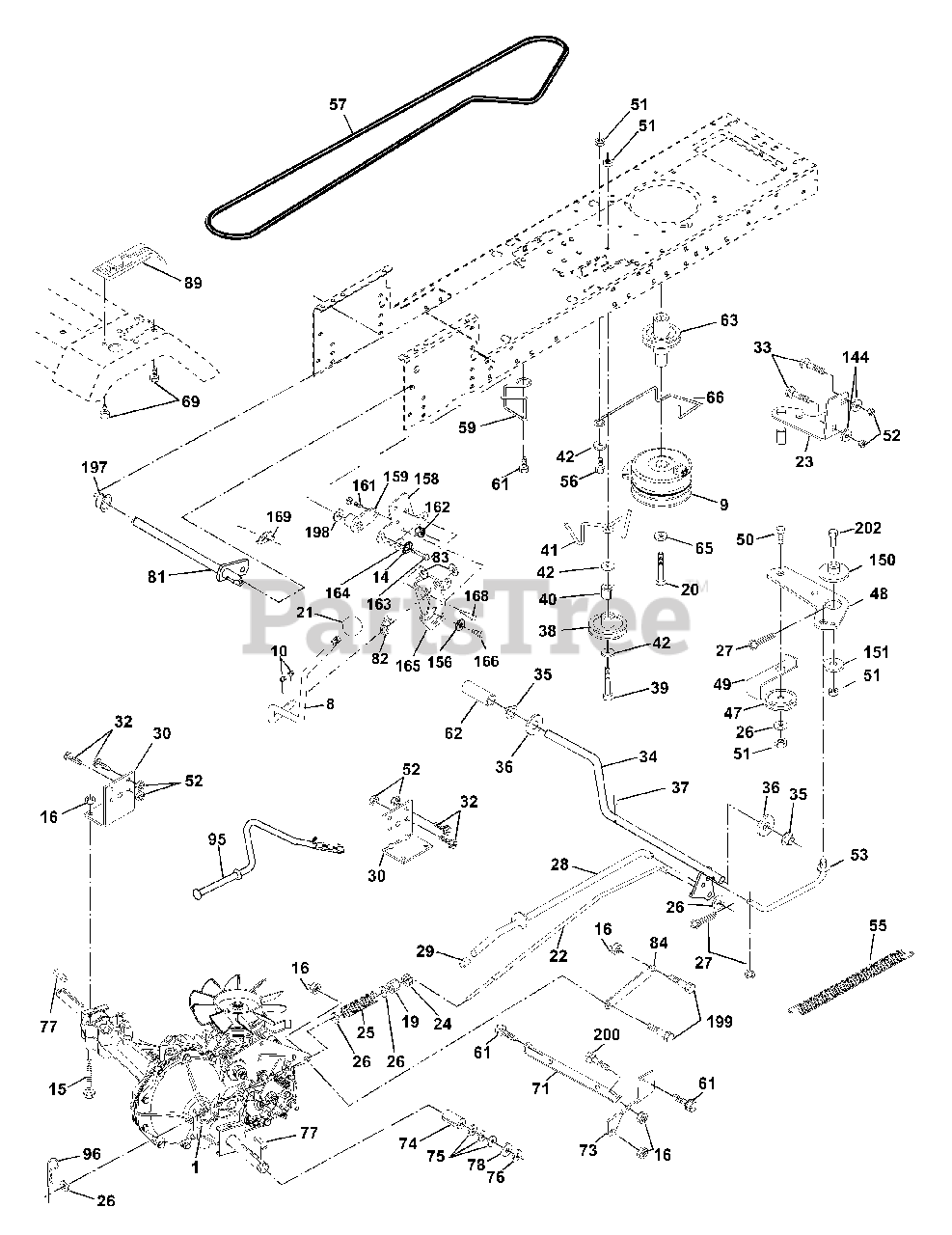

Drive Parts Diagram

  • Title

1

Transaxle, Hydro Gear 314-0510

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

8

Electrolux/AYP 166020

Rod Shift Fender
(Superseded to 532166020)

$

$

Not available

9

Electrolux/AYP 160889

Clutch Electric
(Superseded to 532160889)

$284.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

Pin Cotter 1/8 x 1 CAD
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 74490544

Bolt Hex Flghd 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

Nut Lock Hex W/Ins. 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 73800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 150280

Bolt, Hex 7/16-20 x 4-1/4
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 140845

Knob Deluxe
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 169498

Rod, Brake Hydro
(Superseded to 532169498)

$20.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 171258

Bracket Asm. Anti-Rot EVX
(Superseded to 532171258)

$12.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 73350600

Locknut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 145204

Rod, Parking Brake
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

Cap, Parking Brake
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 169592

Bracket, Transaxle
(Superseded to 532169592)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

Bolt Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 155071

Shaft, Foot Pedal
(Superseded to 532155071)

$

$

Not available

35

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin, Roll

$

$

Not available

38

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

39

Electrolux/AYP 74760644

Bolt
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

Spacer Split
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 165838

Keeper, Belt Idler Fool-Proof
(Superseded to 532165838)

$

$

Not available

42

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Murray 127783

Pulley, Idler, V-Groove

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv Stl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

Bolt
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

56

Electrolux/AYP 74760620

Bolt
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 140294

V-Belt, Ground Drive
(Superseded to 532140294)

$39.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 169691

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

62

Electrolux/AYP 8883R

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 145868

Pulley, Engine
(Superseded to 532145868)

$100.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 10040700

Washer
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine Hydro
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

Screw Hexwsh Hi-Lo 1/4-1/2UNC
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 169183

Strap Torque Lh Hydro
(Superseded to 532169183)

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 169182

Strap Torque Rh Hydro
(Superseded to 532169182)

$17.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 169496

Spacer, Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key, Square
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

81

Electrolux/AYP 165596

Shaft Asm. Cross Hydro
(Superseded to 532165596)

$40.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 123782X

Spring Torsion T/A
(Superseded to 532123782)

$4.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 169594

Link Transaxle
(Superseded to 532169594)

$

$

Not available

89

Electrolux/AYP 164892X428

Console, Shift

$

$

Not available

95

Electrolux/AYP 170201

Control Asm. Bypass Hydro
(Superseded to 532170201)

$12.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

144

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

150

Electrolux/AYP 165850

Bushing Bellcrank Grd Drive
(Superseded to 532165850)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16ID x 1.125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

Washer 5/8 x .281 x 10 Ga
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening Lt\
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 169613

Nyliner Snap-In 5/8" ID
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyliner 7/8 ID x .105
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 169612

Bolt Shoulder 5/16-18 Unc
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Electrolux/AYP 72140508

Bolt Rdhd Sqnk 5/16-18 UNC x 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

202

Electrolux/AYP 72110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0
