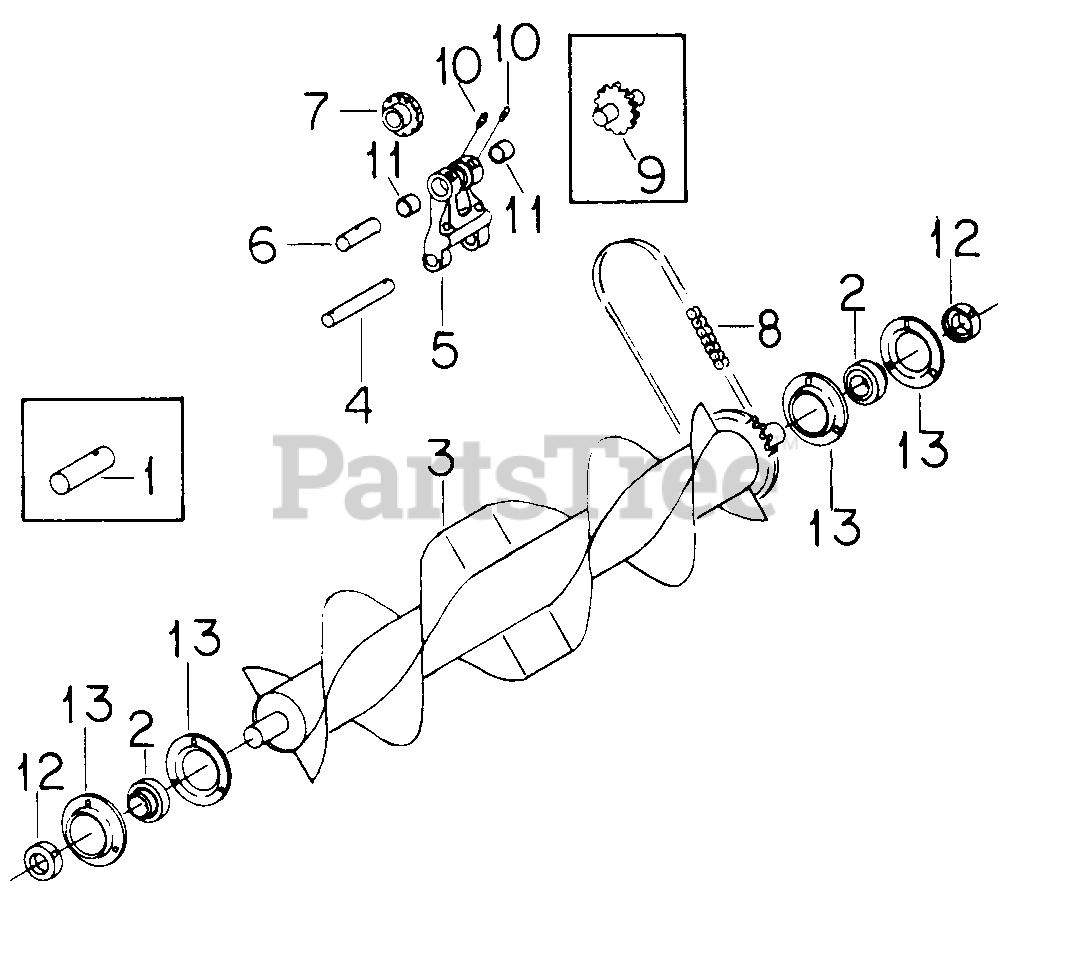

QA36 A (QA42 A) - Cub Cadet Snow Thrower Attachment Thrower Housing, Universal Joints & Continued Auger Parts Diagram

Snow Thrower Attachment

Thrower Housing, Universal Joints & Continued Auger Parts Diagram

  • Title

1

Cub Cadet 397-030-R1

Shaft, Tail -Used with Rotors 397 028 R1 & 397 029 R1

$

$

Currently unavailable

2

Cub Cadet 475-698-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 Zns Short Sq-Nk

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 Znd Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 397-028-R1

Rotor Assy -For QA 36A Snow Thrower- -Order Rotor Assy 59 746 C1

$

$

Currently unavailable

Cub Cadet 397-029-R1

Rotor Assy -For QA 42A Snow Thrower- -Order Rotor Assy 59 747 C1

$

$

Currently unavailable

Cub Cadet 443-333

Nut, 5/16-18 Cd-Pltd Hex Lock

$

$

Currently unavailable

Cub Cadet 189-298

Screw, 5/16-18 X 4 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 59-746-C1

Rotor Assy -For QA 36A & QA 36B Snow Throwers

$

$

Currently unavailable

Cub Cadet 59-747-C1

Rotor Assy -For QA 42A Snow Thrower

$

$

Currently unavailable

4

Cub Cadet 397-033-R1

Pin, Mounting

$

$

Currently unavailable

Cub Cadet IH-177923

Pin, 1/8 X 3/4 C-Z Cotter
(Superseded to 914-0474)

$

$

Not available

5

Cub Cadet 397-032-R1

Bracket, Sprocket Mounting

$

$

Currently unavailable

6

Cub Cadet 397-034-R1

Shaft, Transfer

$

$

Currently unavailable

7

Cub Cadet 76-897-C1

Sprocket, Small - 14 T

$

$

Currently unavailable

Cub Cadet 549-720-R1

Washer, Special

$

$

Currently unavailable

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 474-088-R1

Screw, 1/2-13 X 3 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 19-689-R1

Pin, 1/4 X 1-1/4 Hv Coiled Spring

$

$

Currently unavailable

8

Chain, Roller - For 24 Tooth Sprocket

Note: -Use 51 links 1/2 pitch roller chain from 10 ft rolls marked 1 790 D, 1 connecting link 1 301 D

$

$

Not available

Cub Cadet 1-301-D

Link, #40 Single Pitch Connecting

$

$

Currently unavailable

9

Cub Cadet 397-031-R1

Sprocket Assy, Rotor -Used with Rotors 397 028 R1 & 397 029 R1

$

$

Currently unavailable

10

Cub Cadet IH-109454

Fitting, 1/4-28 Ptf Str Lub

$

$

Not available

11

Cub Cadet 387-835-R91

Bearing, Needle

$

$

Currently unavailable

12

Cub Cadet 455-102-R21

Collar Assy, Locking

$

$

Currently unavailable

Cub Cadet 120-613

Nut, 1/4-Nf Jam Type 5

$

$

Currently unavailable

Cub Cadet IH-139011

Screw, 1/4-Nf X 3/8 Pln C/Pt Hdl/Hs Set

$

$

Currently unavailable

13

Cub Cadet 462-360-R1

Flange, Bearing Mtg

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16 X 3/4 Crg Type 1

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
