Q GT 2046 A - Quality Lawn Tractor (2000) Seat Assembly Parts Diagram

Lawn Tractor

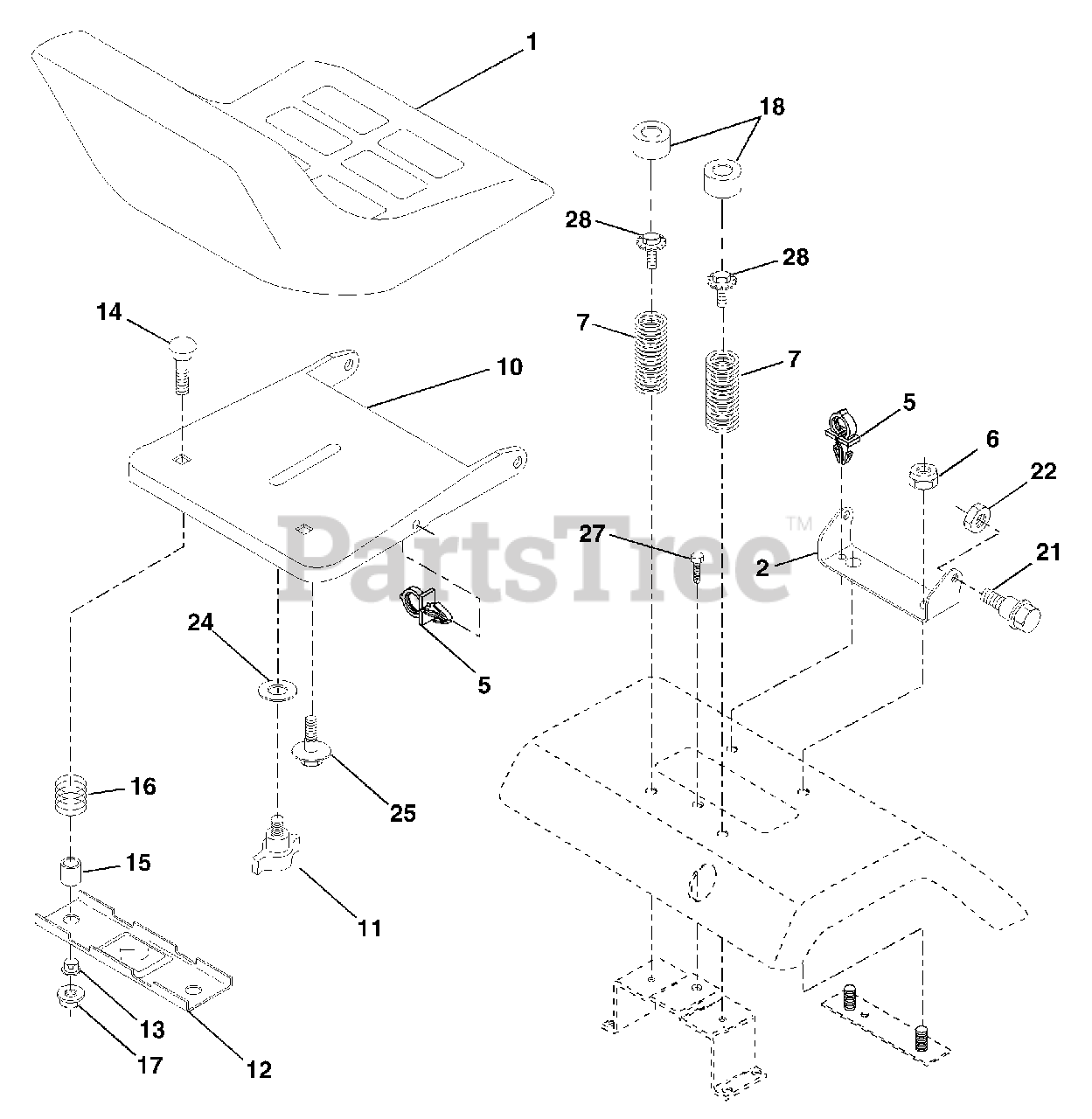

Seat Assembly Parts Diagram

  • Title
1

Electrolux/AYP 127428

Seat
(Superseded to 532127428)

$

$

Not available

2

Electrolux/AYP 140551

Pivot Bracket, Seat
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip, Push-in Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut, Lock Hex w/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 155925

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 166369

Knob, Seat, Black
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 121246X

Bracket, Switch Mounting
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121248X

Bushing, Snap, Black, Nylon
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt, Carriage 1/4-20 x 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 134300

Spacer, Split .28 x .96
(Superseded to 532134300)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121250X

Spring
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

Locknut, Flange 1/4 Grade 5
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

18

Electrolux/AYP 124238X

Cap Spring Seat Blk 1.75 x 1.0
(Superseded to 532124238)

$

$

Not available

21

Electrolux/AYP 171852

Bolt, Shoulder 5/16-18 Unc -2A
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 73800500

Nut Lock Hex W/Ins 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 19171912

Washer 17/32 x 1-3/16 x 12 Gauge
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 127018X

Bolt, Shoulder 5/16-18 x .62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 3/4
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 171877

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0
