Q GT 2046 A - Quality Lawn Tractor (2000) Mower Lift Parts Diagram

Lawn Tractor

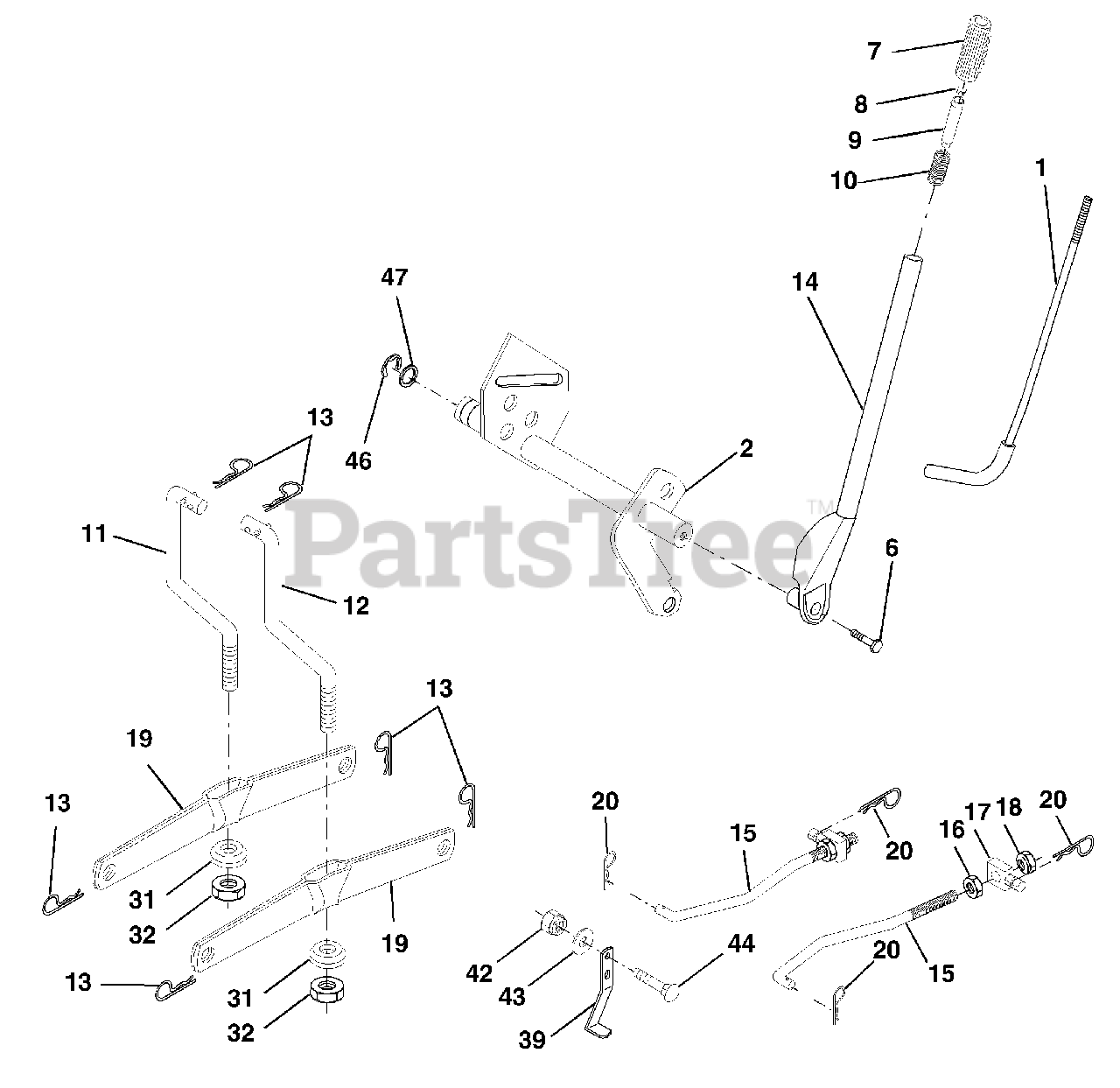

Mower Lift Parts Diagram

  • Title

1

Electrolux/AYP 121006X

Rod Assembly, Lever
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159188

Shaft Assembly, Lift
(Superseded to 582993601)

$61.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 74780624

Bolt, Hex Head, Fin. 3/8-16 x 1-1/2
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 109413X

Grip Handle
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

Button Plunger Black

$

$

Not available

9

Electrolux/AYP 122364X

Plunger Lever Lift
(Superseded to 532122364)

$

$

Not available

10

Electrolux/AYP 2876H

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 145537

Link, Lift, LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 145536

Link, Lift, RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

14

Electrolux/AYP 159189

Lever Assembly, Lift, RH
(Superseded to 532159189)

$

$

Not available

15

Electrolux/AYP 173288

Link, Front
(Superseded to 532173288)

$13.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73350800

Nut, Hex, Jam 1/2-13 UNC
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

17

Electrolux/AYP 130171

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lock W/Wsh 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

19

Electrolux/AYP 139868

Arm, Suspension, Rear
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 169865

Bearing
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut, Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 142992

Stop Over Center
(Superseded to 532142992)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 19131612

Washer 13/32 x 1 x 12 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 72240608

Bolt, Carriage 3/8-16 x 1.00
(Superseded to 872240608)

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 12000022

E-Ring
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 19292016

Washer
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0
